| Physical Specifications |
|
| Dimensions (W x H x D mm) |
151 x 91.5 x 31 |
| Weight |
196g / 7oz. |
| Mount points |
1 x Anti rotation 1/4" / 3/8 top and bottom |
| Environmental |
|
| Ambient operating temperature |
0° C up to 40° C |
| Construction and Control |
|
| Body |
Polycarbonate ABS Plastic |
| Cooling |
Passive |

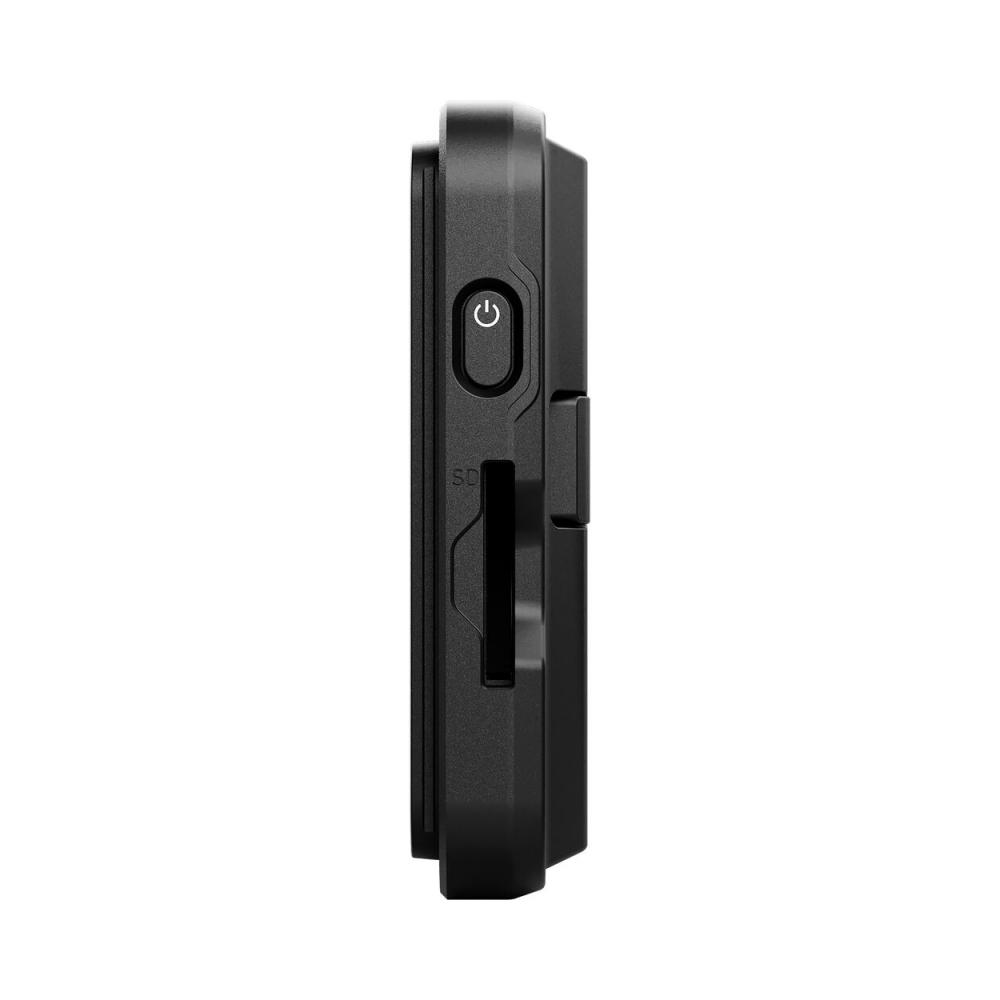

| Multi-function button |
Power / lock Screen |
| Power |
|
| Input voltage |
6.2V - 16.8V |
| Operating power |
5.8V - 7.2V |
| Compatible batteries |
NPF L series |
| Built in battery |
No |
| Battery Run time (Monitor only) |
Monitor |
| Continuous power |
2600mAh - 1.5hrs, 5200mAh - 3hrs, 7800mAh - 6hrs |
| DC in connector |
Via DC Jack on Optional Battery Eliminator |
| Dtap |
Via optional Battery Eliminator and DTap to DC cable |
| Display |
|

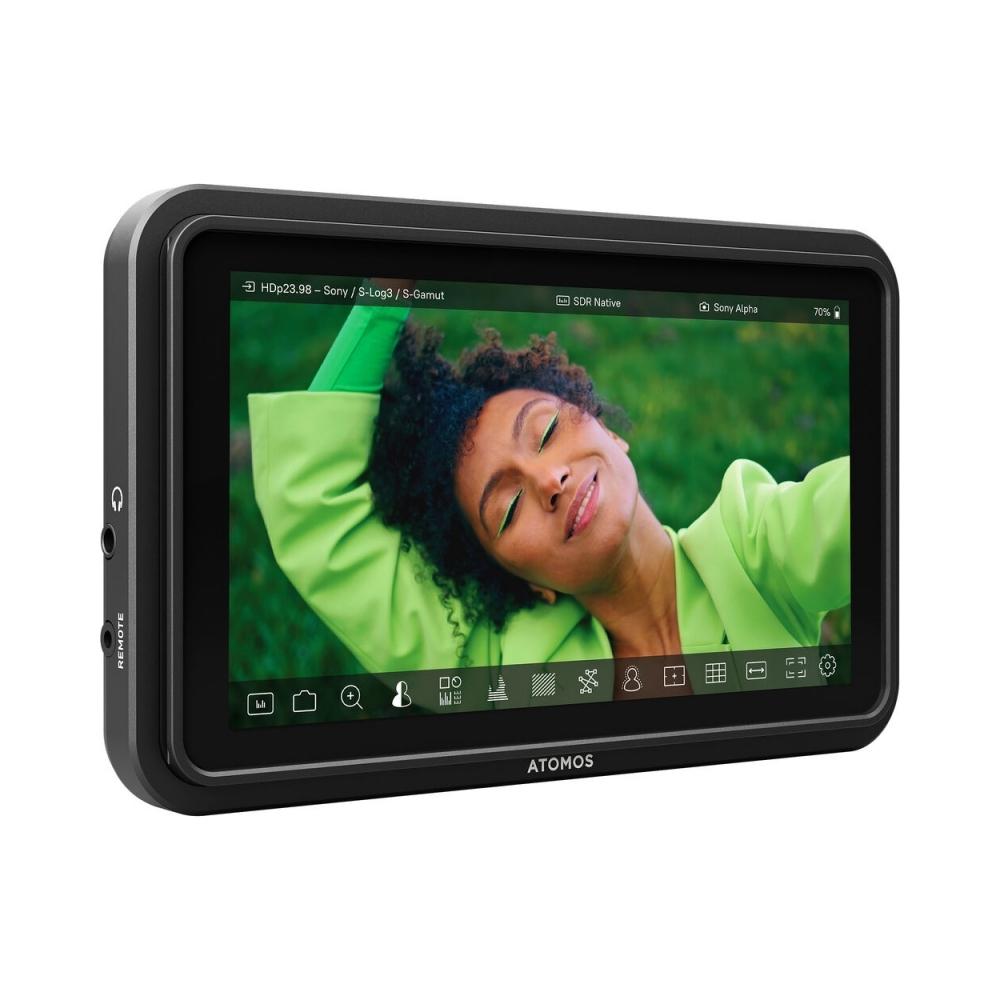

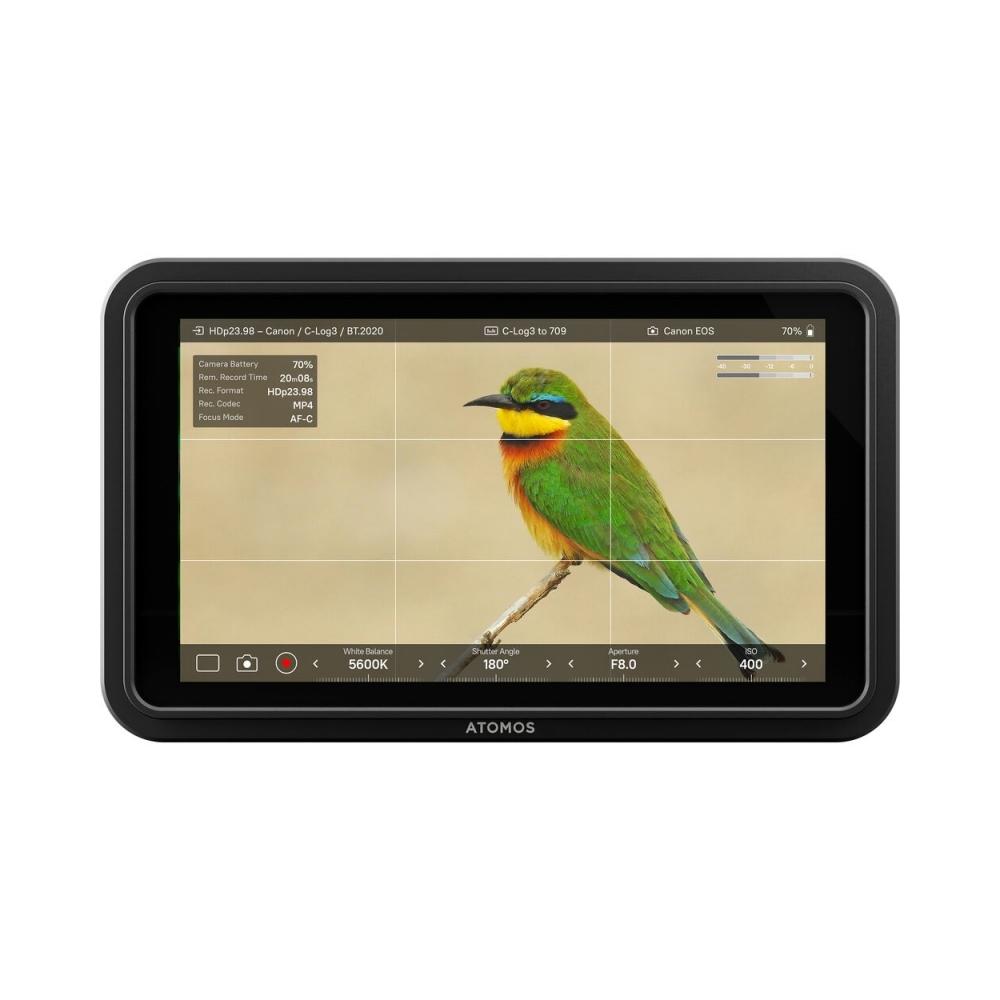

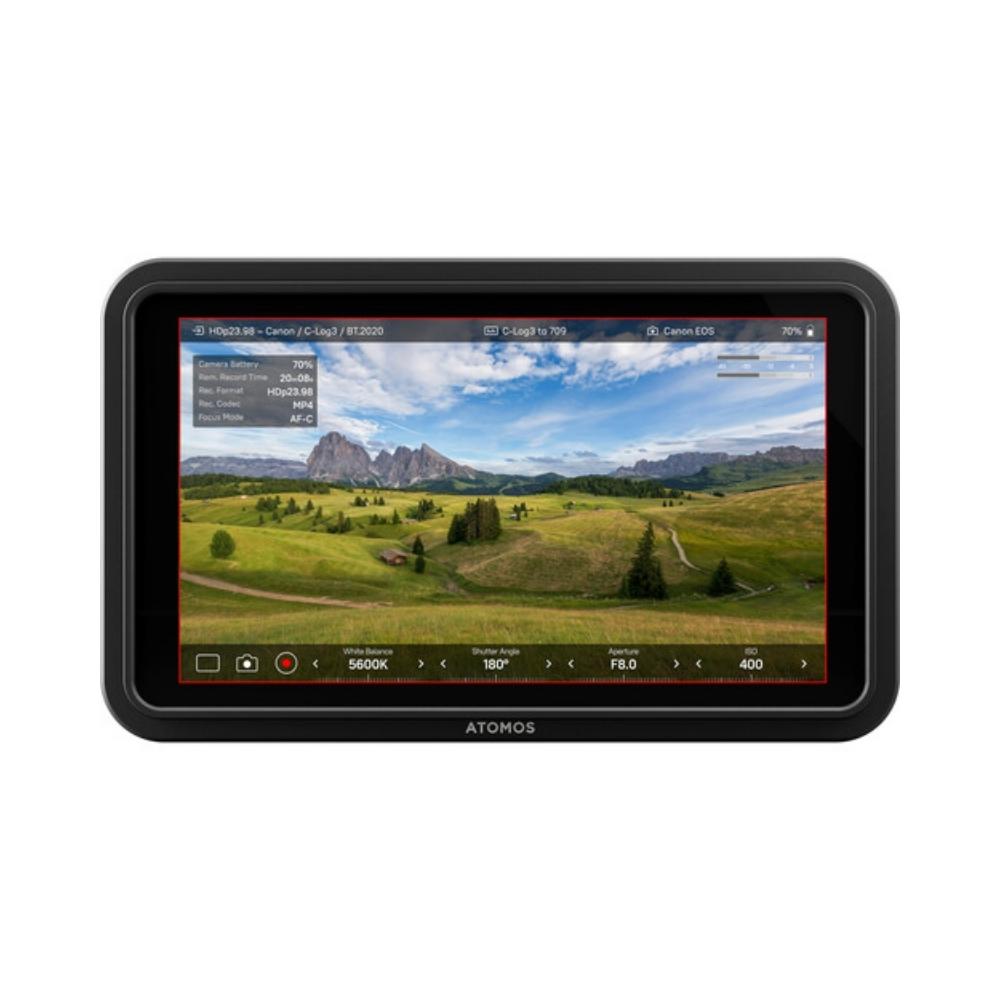

| Touchscreen |
SuperAtom IPS panel (capacitive touch) |
| Size |
5.2" |
| Resolution |
1920 x 1080 |
| PPI |
427 |
| Bit depth |
10-bit (8+2 FRC) |
| Backlight Type |
Edge lit |
| Brightness (cdm2 / nits) |
1000 |
| Aspect ratio |
16 : 9 |
| Color Gamut |
Rec.709 |
| Calibration support |
Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail) |
| Color Pipeline |
|
| Gamma |
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log |
| Gamut |
BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display |
.Cube Format |
| 3DLUT 50/50 |
Yes |
| Monitoring Modes |
Native / HLG / PQ / 3D LUT |
| HDR output Conversion |
No |
| Video Input |
|

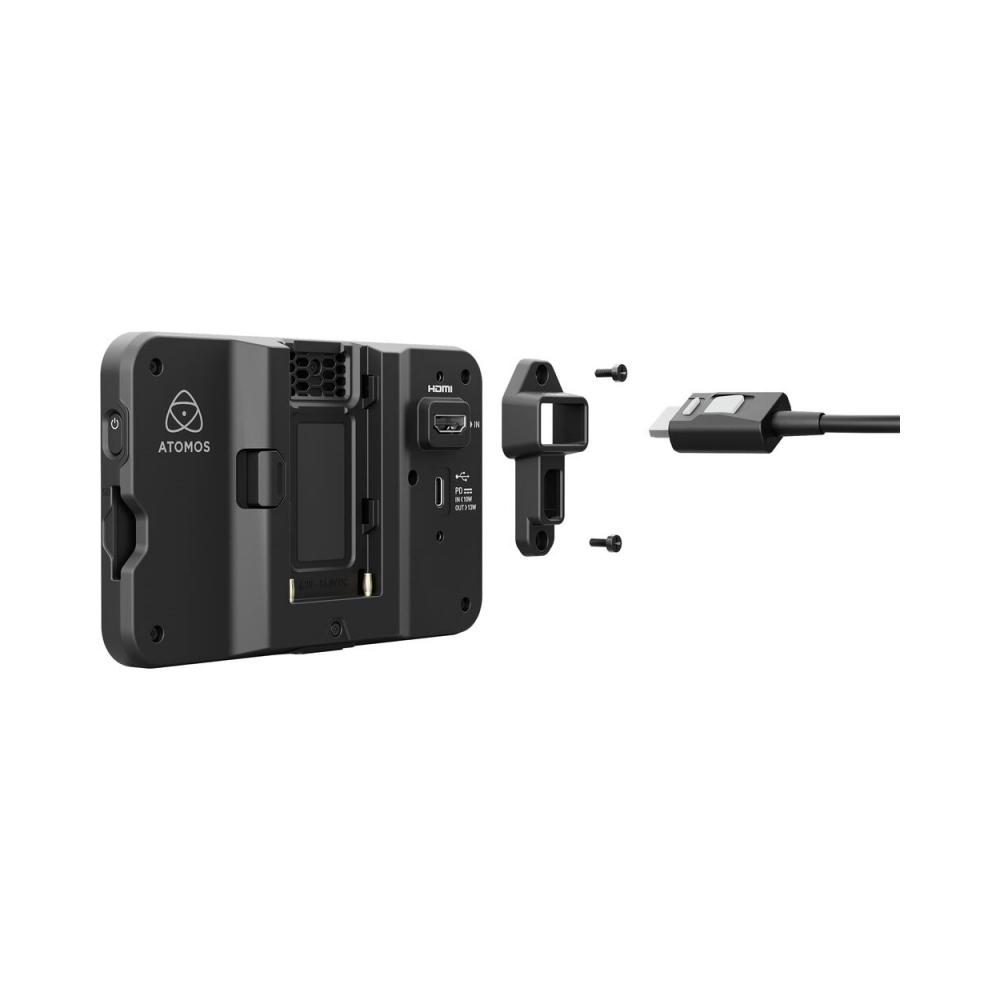

| HDMI |
1 x HDMI (1.4) 4k p30 |
| HDMI RAW |
No - Video only |
| SDI |
No - HDMI only |
| SDI RAW |
No - HDMI Video only |
| Bit Depth |
8/10-bit Video |
| Video Chroma Subsampling |
4:2:0 & 4:2:2 |
| Audio In/Out |
|
| HDMI |
2ch 24Bit, input dependent |
| Headphone out |

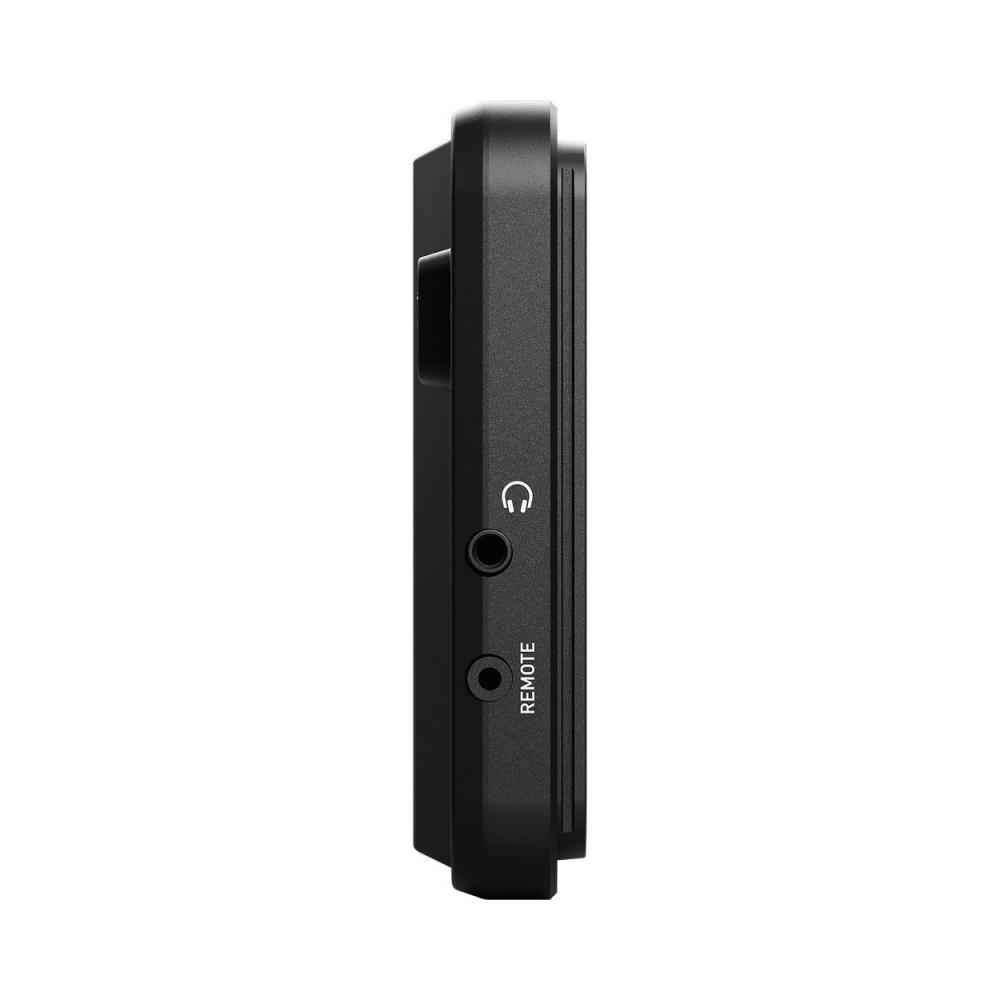

3.5mm 2ch. |
| Resolution and Frame Rates (Record, Monitor & Playback) |
|
| 4k DCI |
Monitor Only: 23.98p, 24p, 25p, 29.97p |
| 4k UHD |
Monitor Only: 23.98p, 24p, 25p, 29.97p |
| FHD 1920 x 1080 Progressive |
Monitor Only: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p |
| 1280 x 720p |
Monitor Only: 50/59.94/60p |
| Supported media |
|
| SD |

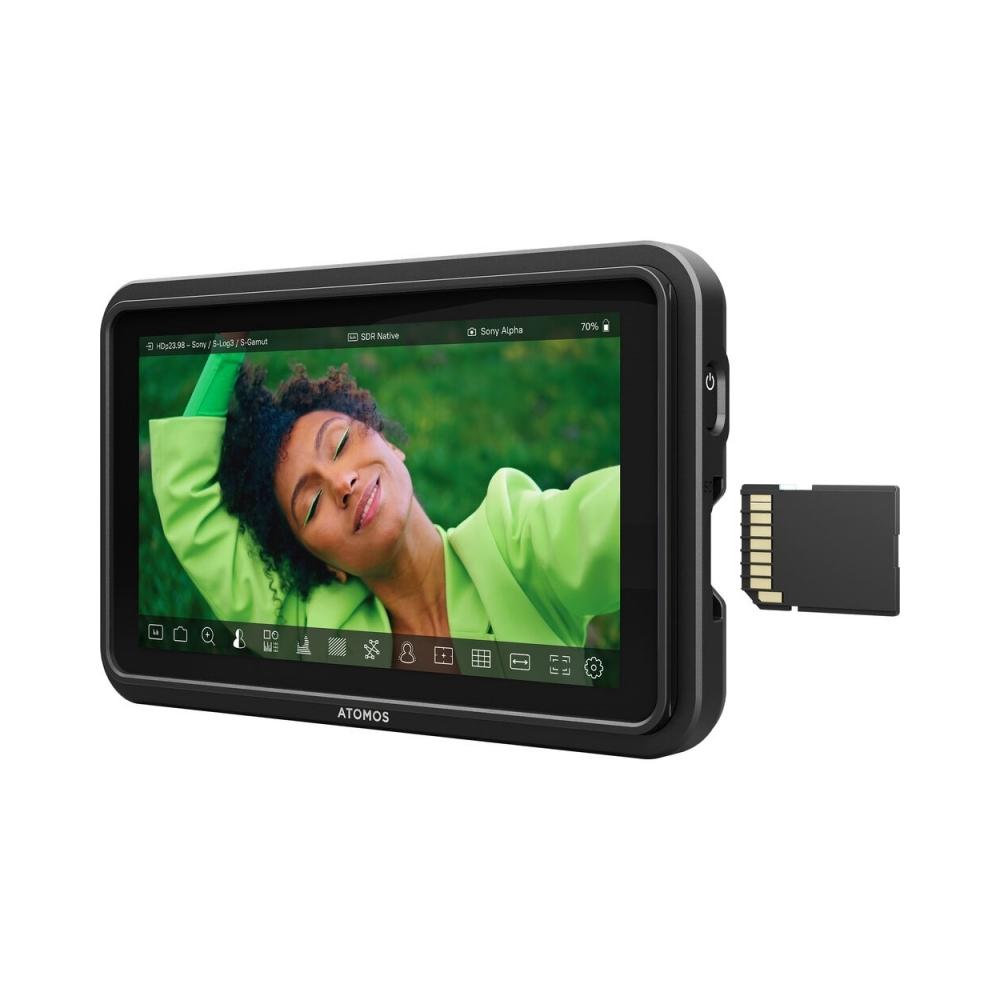

SD Card slot for LUTs / Firmware |
|
