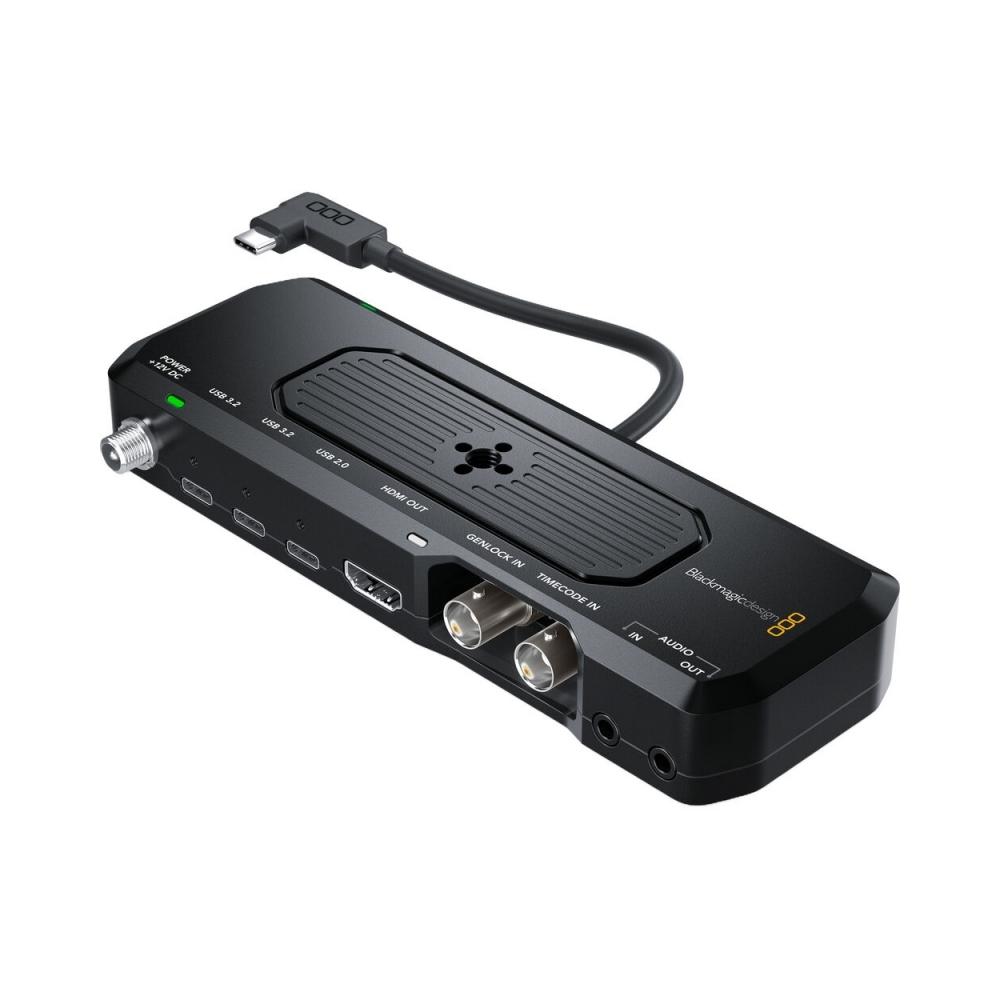

Add Professional Connections with Blackmagic Camera ProDock
Blackmagic Camera ProDock transforms the iPhone 17 Pro and iPhone 17 Pro Max into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power!
`

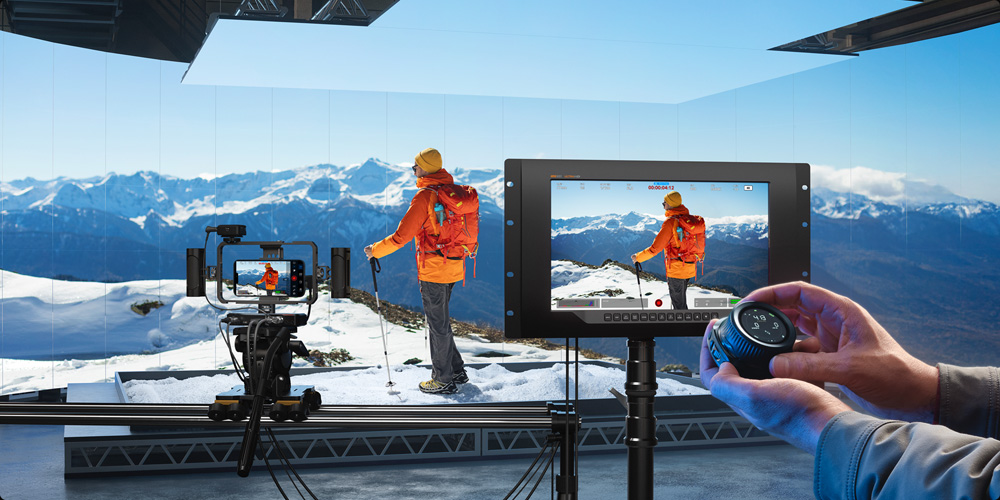

Adds Genlockand Timecode forMulticam Production!
With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. It also lets you shoot LED walls with no distracting flickering or tearing, which is important for virtual production!

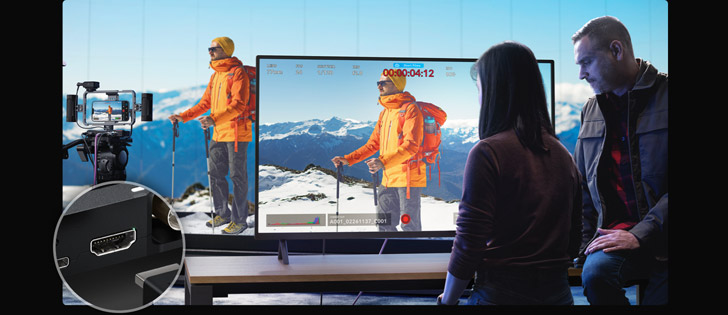

HDMI for OnSet Monitoring
Blackmagic Camera ProDock includes a full sized HDMI port so you can connect your iPhone to external monitors! This makes it easy for crew to frame and monitor shots from any position on set.

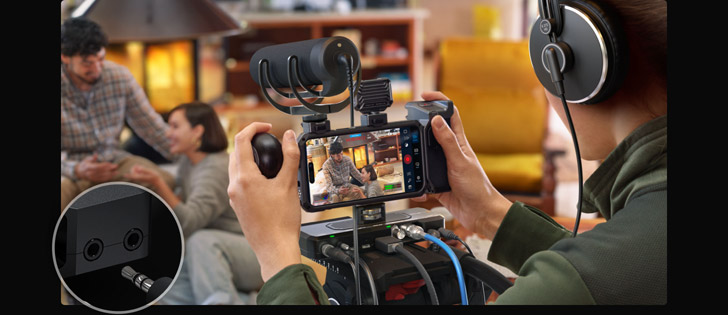

Add External Microphones and Audio Monitoring
Blackmagic Camera ProDock features a 3.5mm audio input so you can use high quality hand held, lapel or shotgun microphones when you need a more directional microphone. You can also monitor sound on set using the 3.5mm headphone jack!

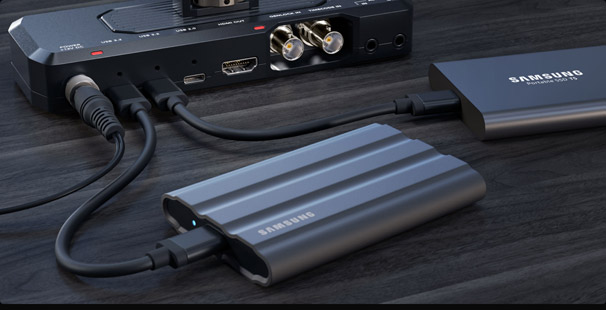

Add Accessories and External Disks
Two fast USB 3.2 ports let you connect high capacity, high speed external disks to massively extend your recording time, while the single USB 2.0 port suits accessories such as lens control systems! Plus, intelligent power management ensures everything can run at the same time.

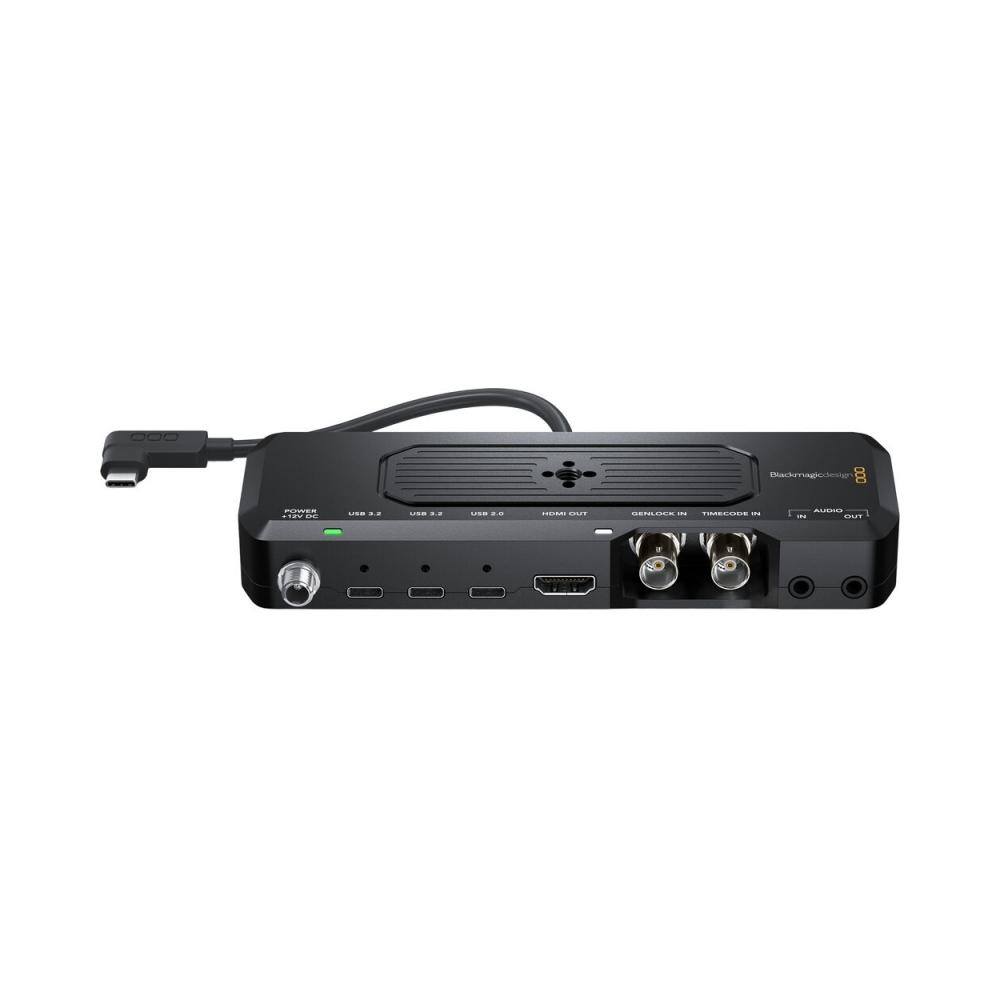

iPhone Connection
Adds professional camera connections to your iPhone 17 Pro or iPhone 17 Pro Max.
High Speed USB‑C
Two fast USB 3.2 ports for recording to external flash disks.
Mounting Point
1/4-20 pin lock mounting points on top and bottom for easy rigging.
Genlock Indicator
This LED illuminates when there is a genlock connected and the iPhone is synced.
Audio Connections
3.5mm stereo input for external or wireless mics plus audio out for headphones.
Power Input
Locking 12V DC input powers ProDock, iPhone and all USB‑C accessories.
Standard USB-C
USB 2.0 port for accessories.
HDMI Out
Connect to an on‑set monitor or external viewfinder.
Genlock In
Perfectly synchronizes multiple cameras for multi‑cam production.
Timecode In
Timecode input for syncing multiple iPhone recordings for multi‑cam editing.
Localized in 9 Popular Languages!
Blackmagic Camera is designed to be used worldwide and supports 9 different languages! When setting up your device, you can choose to work in English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese or Korean. It’s easy to switch to another language so you can share your device with other crew when traveling to locations worldwide! When you switch languages, all on screen overlays, setup menus and monitoring information will be displayed in the selected language!
