Lens Configurations
MTF Chart
Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
Spatial frequency10 lines/mm
Spatial frequency 20 lines/mm
Spatial frequency40 lines/mm
产品规格
| Model name |

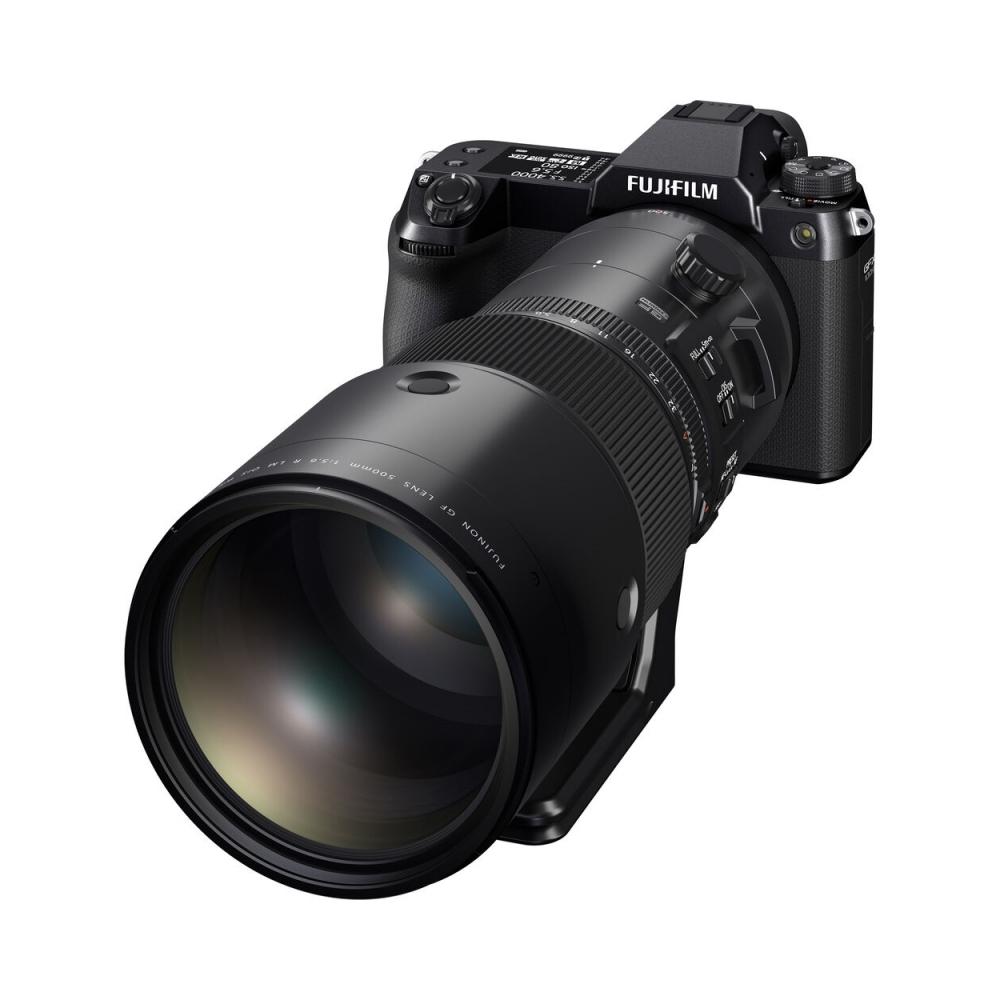

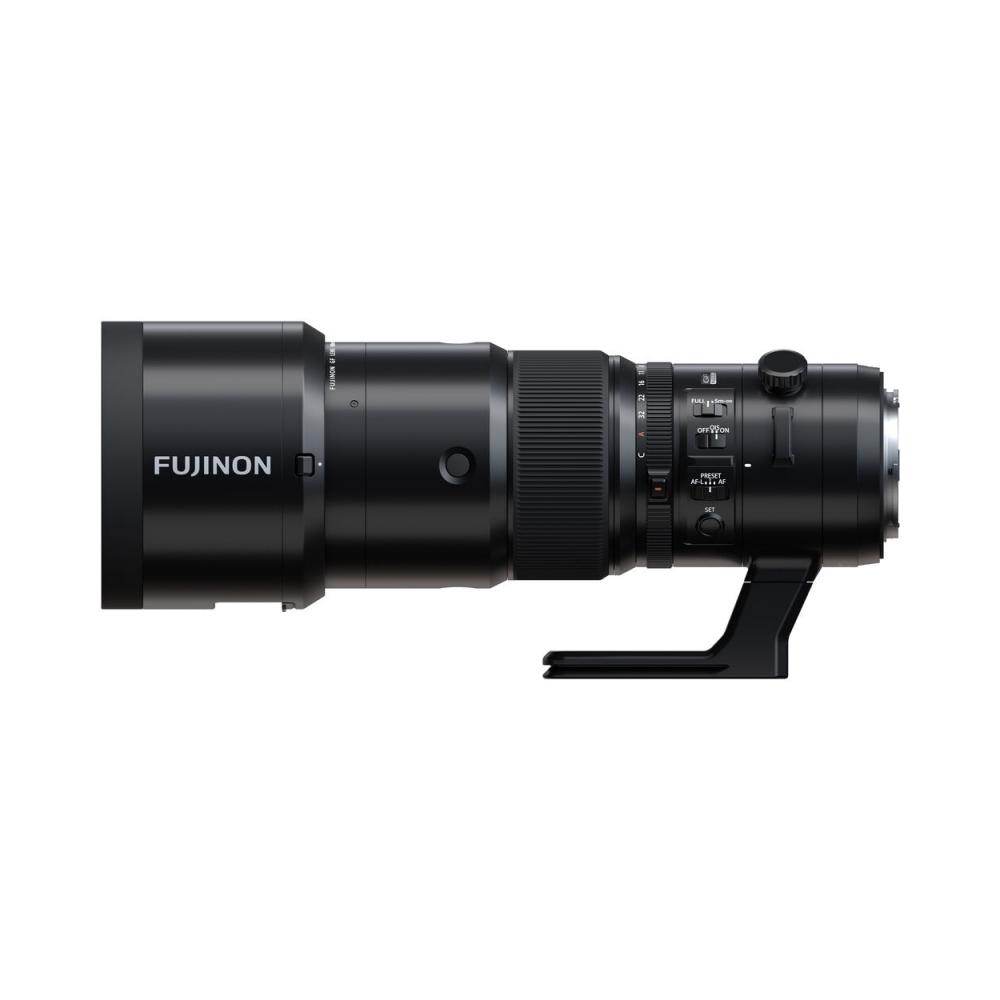

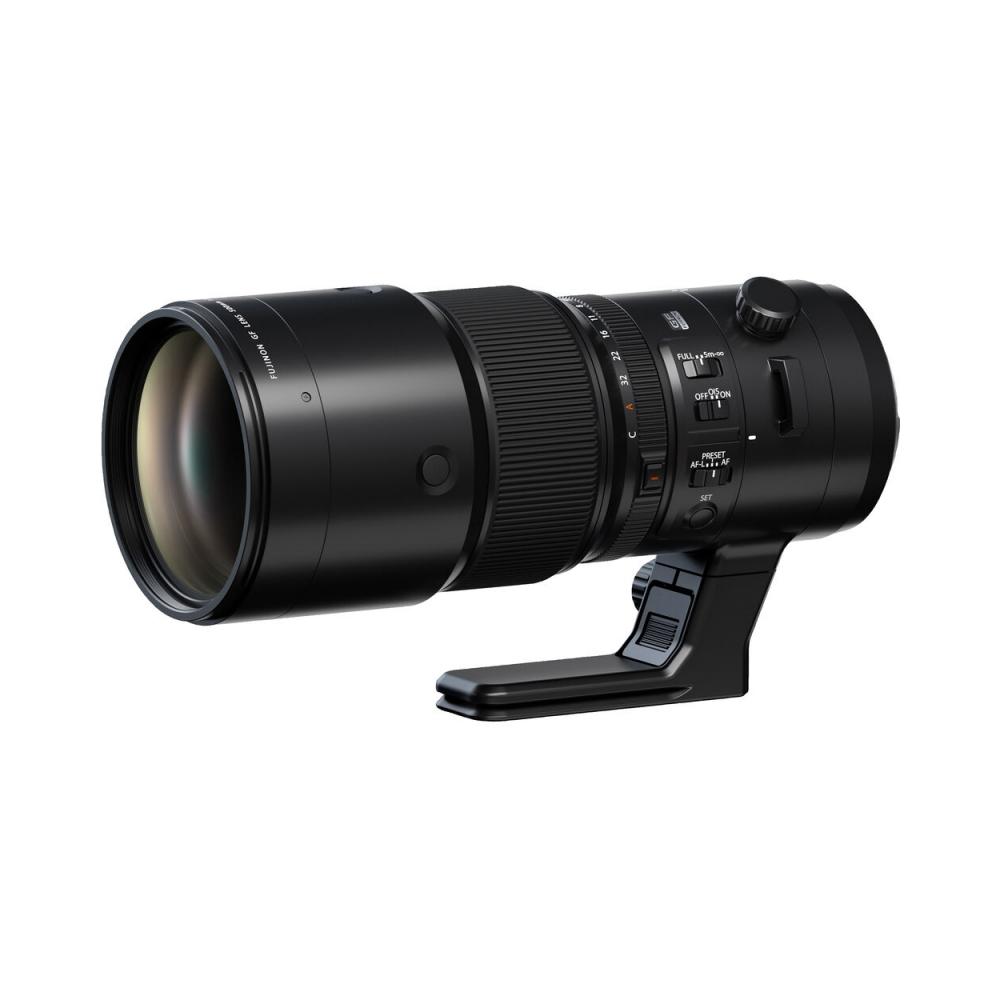

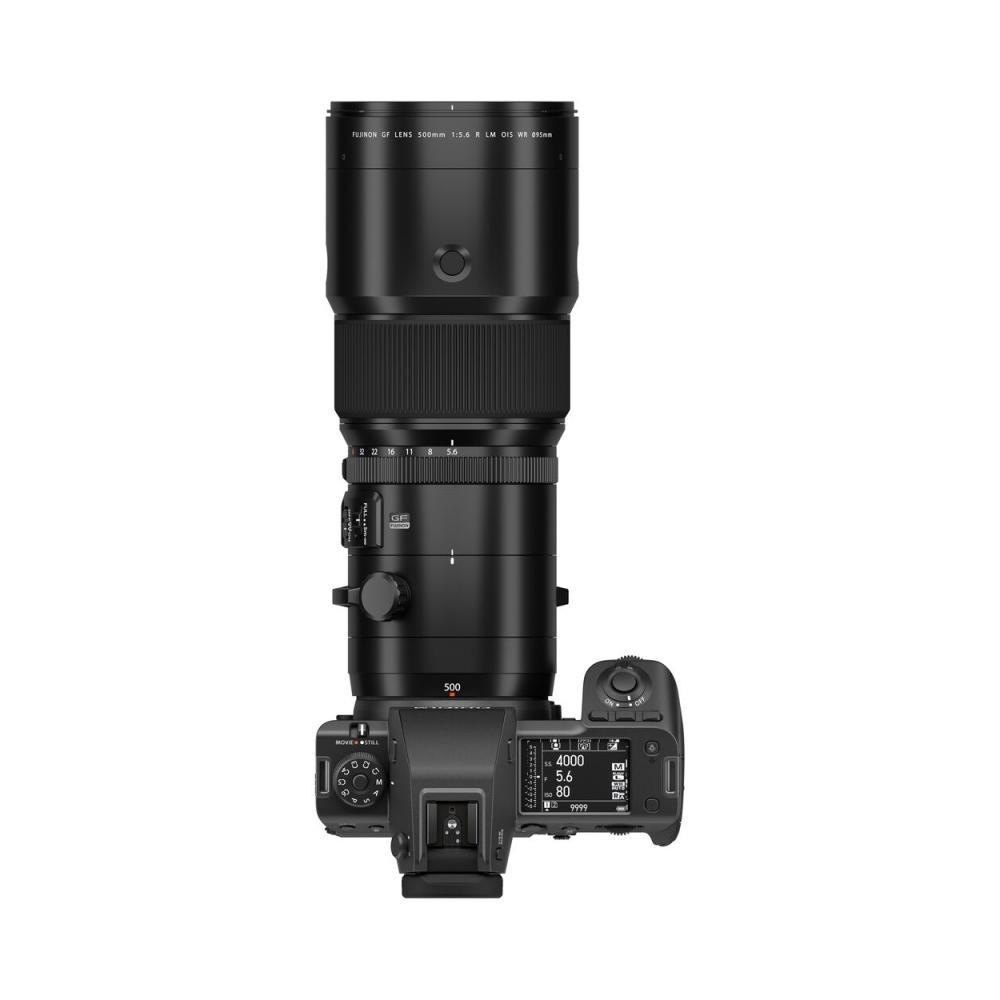

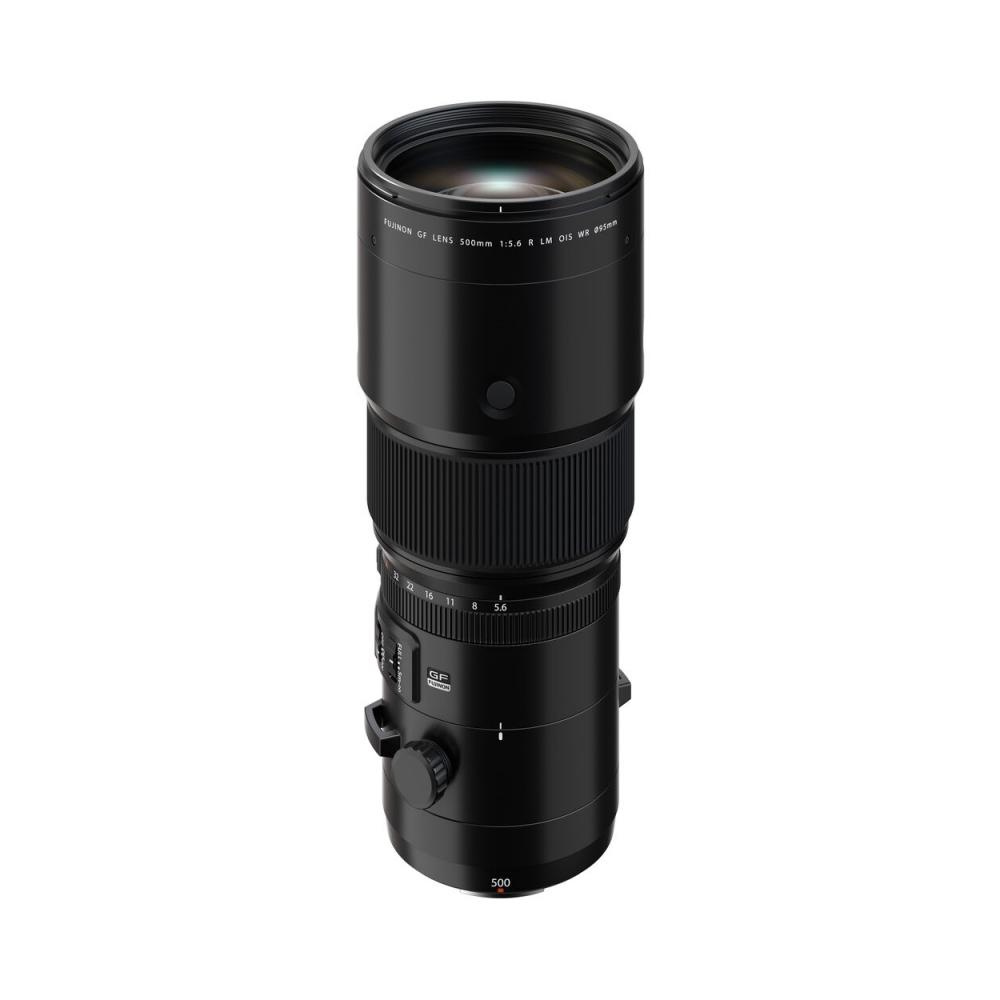

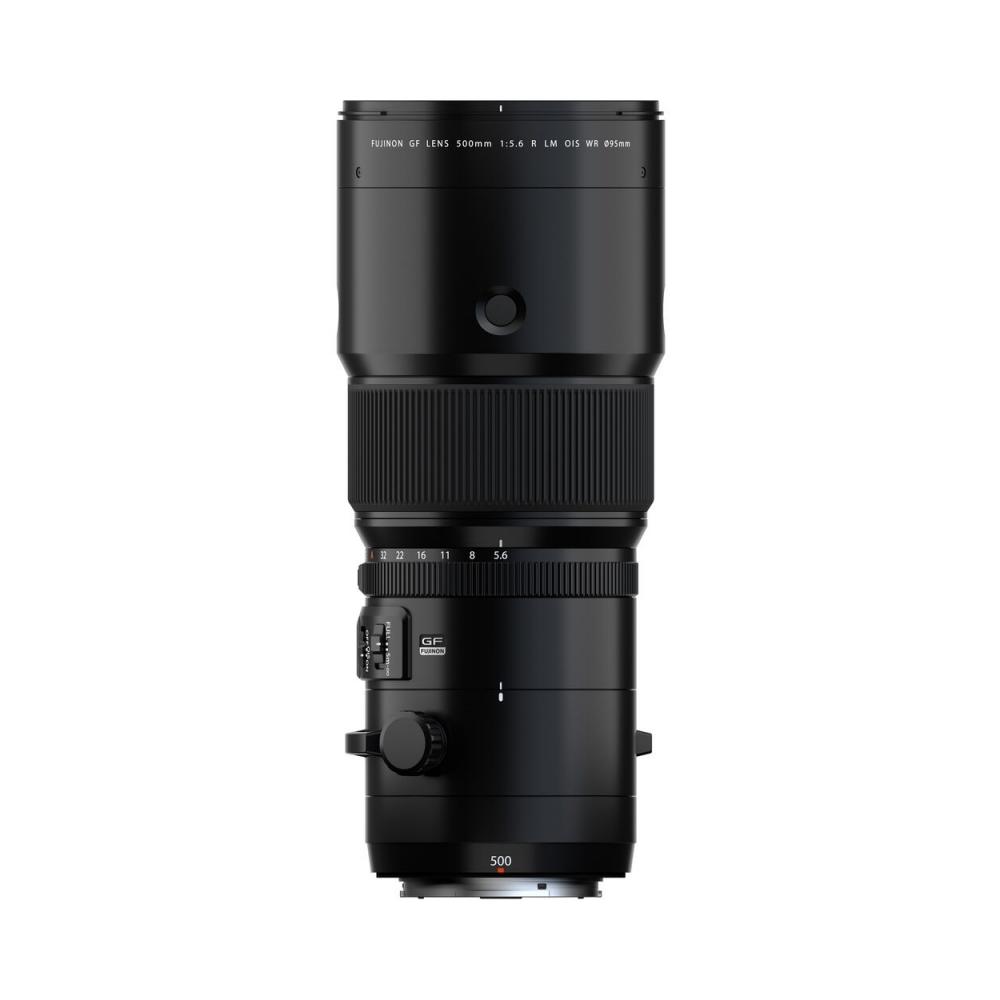

GF500mmF5.6 R LM OIS WR |
| Lens configuration |
21 elements in 14 groups
(includes 2 super ED and 5 ED elements) |
Focal length
(35mm format equivalent) |
f=500mm
(396mm) |
| Angle of view |
6.3˚ |
| Max. aperture |
F5.6 |
| Min. aperture |
F32 |
| Aperture control |
| Aperture control |
Number of blades |
9(rounded diaphragm opening) |
| |
Step size |
1/3EV (16steps) |
Minimum focus distance
(mesured from focal plane) |
2.75m |
| Max. magnification |
0.2x |
External dimensions : Diameter x Length* (approx.)
* distance from camera lens mount flange |
Φ104.5mmx246.5mm |
Weight* (approx.)
* excluding caps, hoods and Tripod collar foot |
1,375g |
| Diamètre du filtre |
Φ95mm |
| Accessories included |
Flont lens cap FLCP-95
Rear lens cap RLCP-002

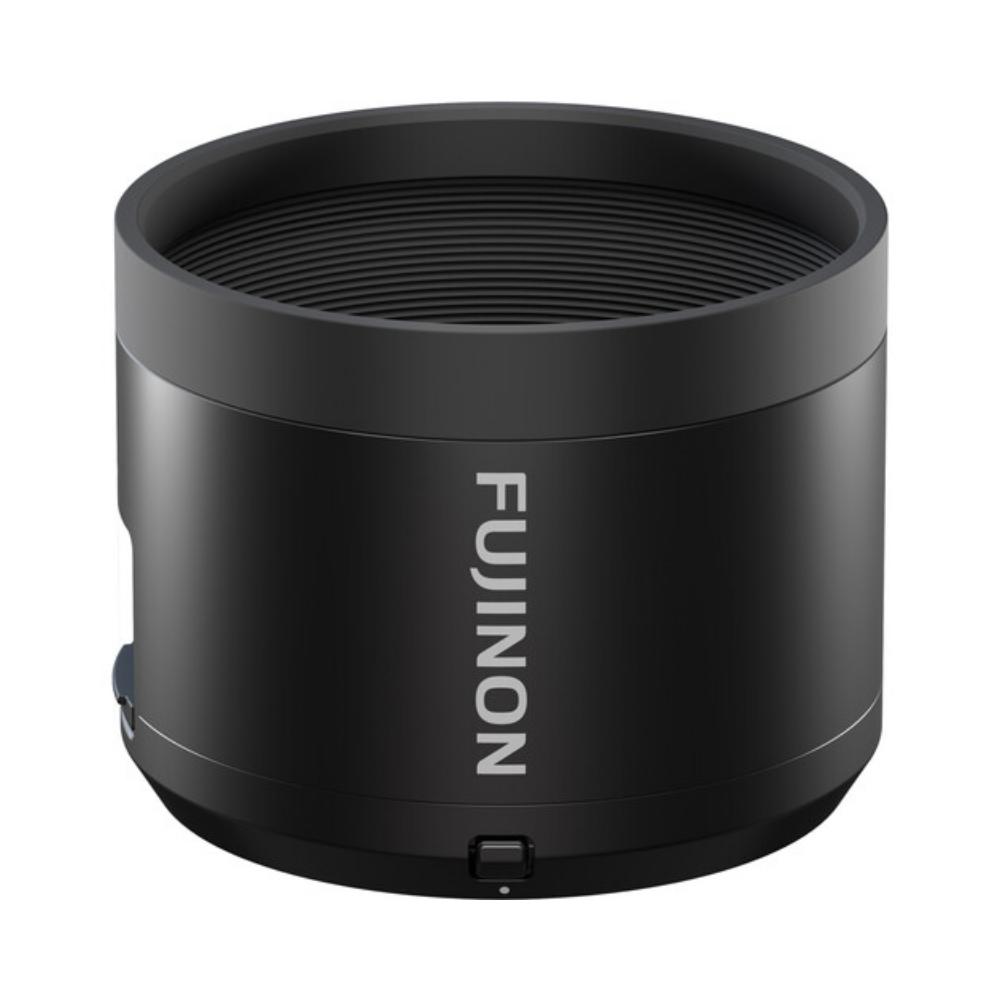

Lens hood
Tripod collar foot
Lens pouch |
