| AF Modes |
One-Shot AF, Servo AF |
| AF Point Selection |
Spot AF, 1-point AF, Expand AF area (above/below/left/right or around), Flexible Zone AF 1 / 2 / 3, Whole area AF |
| AF System Points |
Up to 651 AF frame zones |

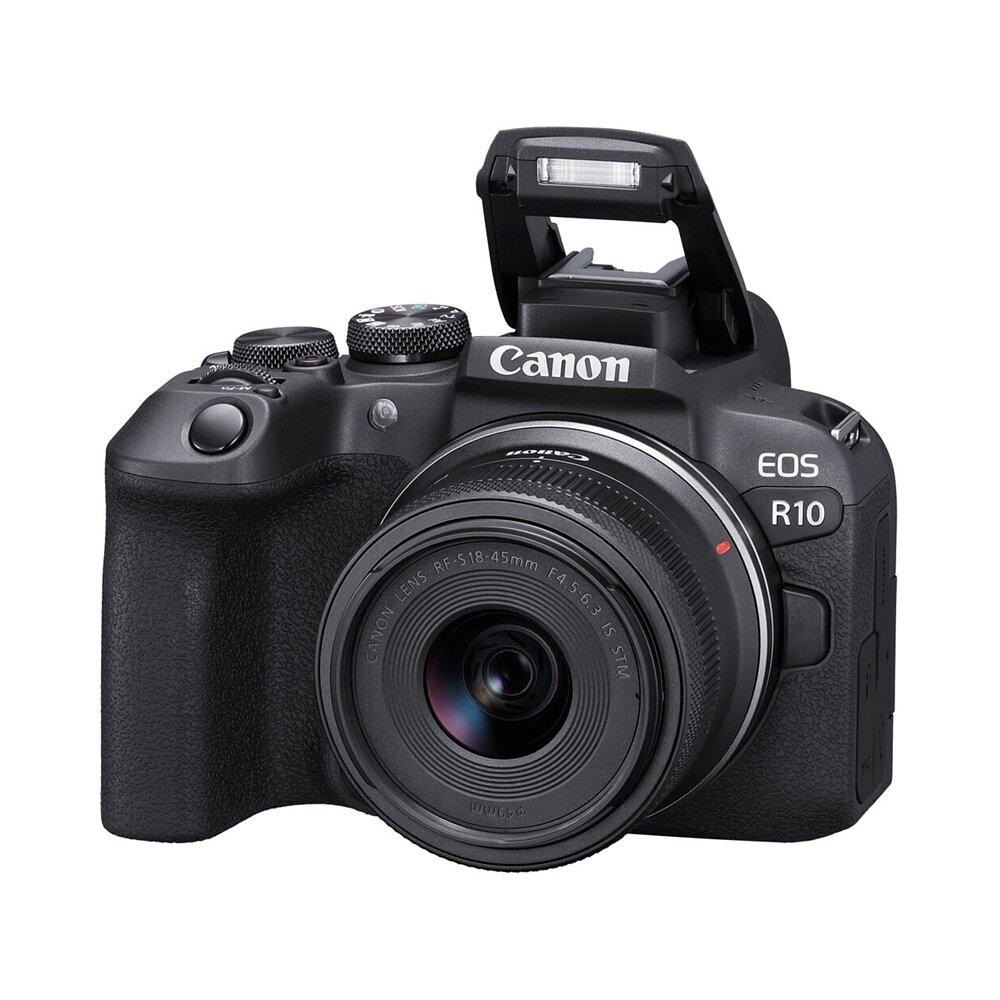

| Built-in Flash |
Available |
| Closest Focusing Distance (cm) |
0.17 / 0.56 (AF, f=18-35mm)
0.12 / 0.39 (MF, f=18-24mm) |
| Continuous Shooting Speed (Shots Per Sec) (Up To) |
Mechanical shutter & Electronic 1st curtain: 15
Electronic shutter: 23 |
| Digital Zoom |
- |
| Dimensions (Excl. Protrusions) (mm) (Approx.) |
122.5 x 87.8 x 147 |
| Drive System |
Leadscrew type STM |
| Effective ISO |
Stills: 100–32,000 (H:51,200)
Movie: 100–12,800
HDR PQ movies: ISO 100–12,800 |
| Effective Pixels (Megapixels) |
24.2 |
| Exposure Compensation |
±3 stops in 1/3-stop or 1/2-stop increments AEB: ±3 stops in 1/3-stop or 1/2-stop increments |
| Eye Detection AF |
Human and Animal eye detection ( All AF mode ) |
| Flash Modes |
E-TTL II flash metering: Evaluative (Face Priority),Evaluative, Average |
| Focal Length (35mm Equivalent) |
29-240mm |
| Guide Number ISO 100 metres |
6 |
| Image Resolution |
6000×4000 (JPEG L/RAW/C-RAW/HEIF)
3984×2656 (HEIF, JPEG M)
2976×1984 (HEIF, JPEG S1)
2400×1600 (HEIF, JPEG S2) |
| Image Stabilizer |
Optical Image Stabilizer + In-body 5-axis electronic image stabilisation |

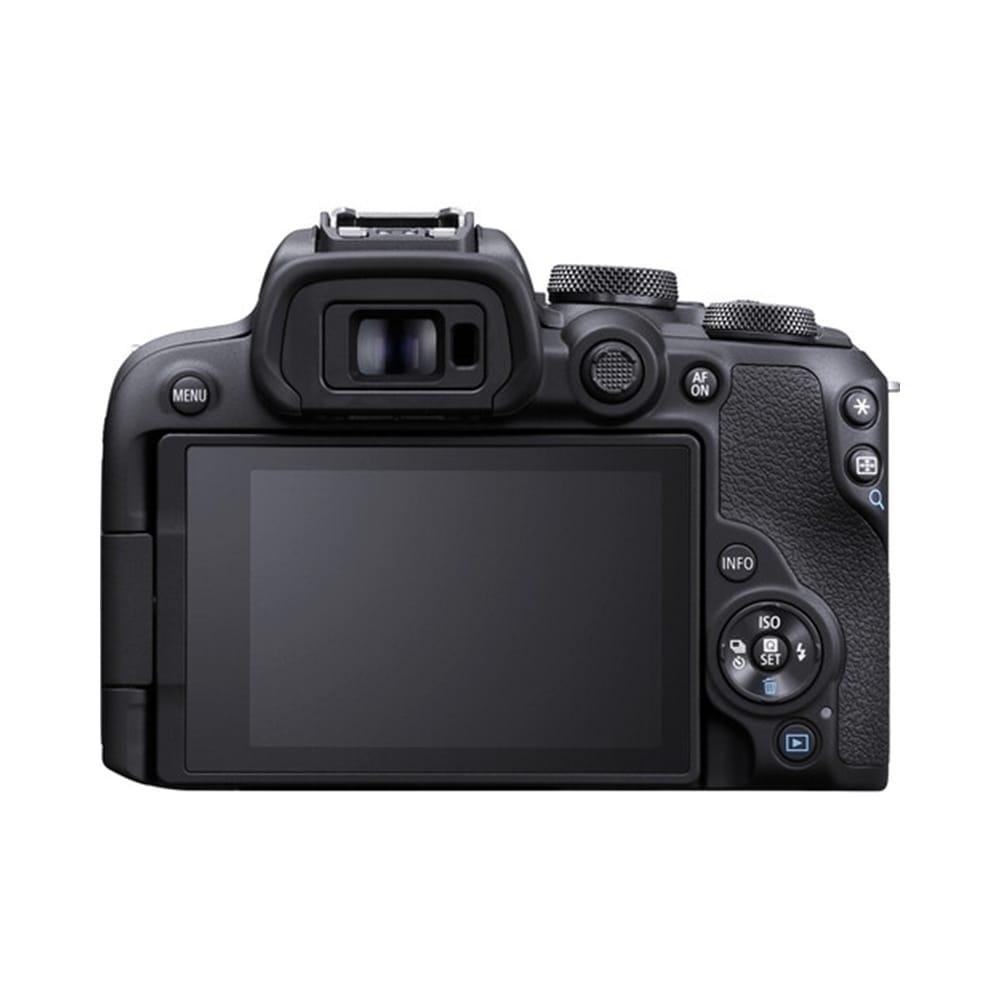

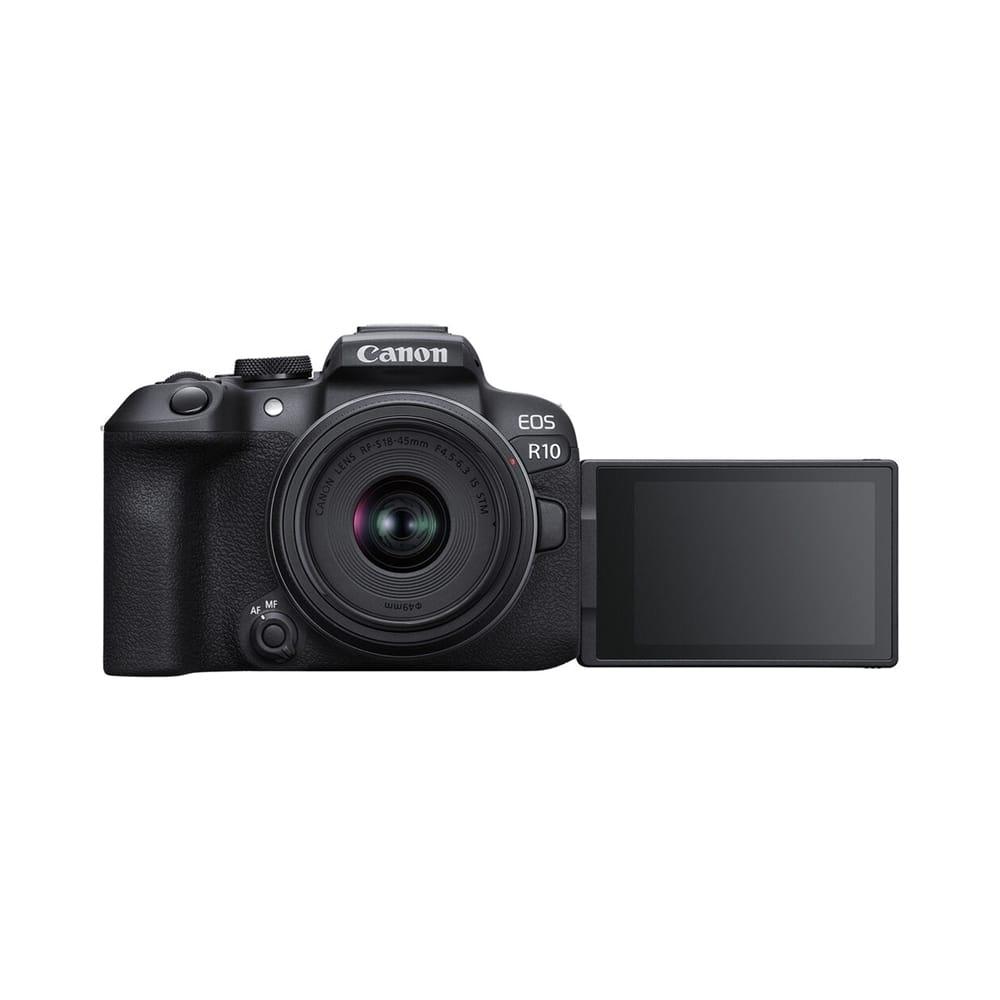

| LCD Monitor (Size) (Inch) |
3.0 |
| LCD Monitor Resolutions (dots) |
1.04 million |
| Manual Focus |
Yes |
| Memory Card Type |
Single Card Slot (SD, SDHC*, SDXC*)
*UHS-II cards compatible |
| Metering Mode |
Stills: Evaluative, Partial, Spot, Center-weighted average
Movie: Evaluative (when faces are detected), Center-weighted average (when no faces are detected) |
| Movie Format |
MP4 |
| Optical Zoom |
- |
| Optional Power |
AC Power (AC Adapter AC-E6N and DC Coupler DR-E18) |

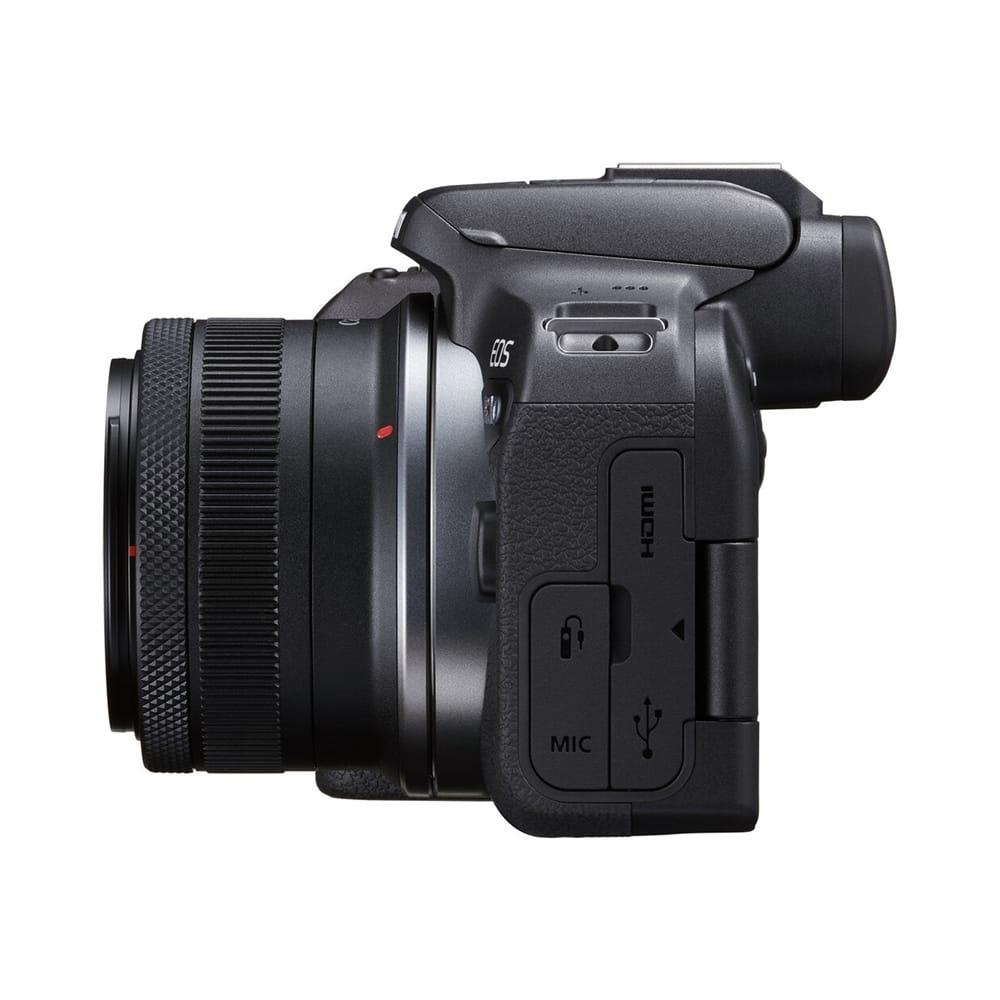

| Peripheral Connections |
USB Type-C (Hi-Speed USB (USB 2.0) equivalent, External microphone IN, HDMI micro (Type D), Remote control (N3) |
| Processor Type |
DIGIC X |
| Sensor Size |
APS-C CMOS |
| Shooting Modes |
A+/Special scene mode/Creative filters/Fv/P/Tv/Av/M/B/C1/C2 |
| Shutter Speed Range (Sec.) |
Stills:
Mechanical / Electronic 1st-curtain: 30 - 1/4000
Electronic shutter: 30 - 1/16000
Movie recording:
Auto exposure: 1/25* - 1/4000,
Manual exposure: 1/8* - 1/4000
*Varies by shooting mode and frame rate |
| Silent Shutter |
Yes |
| Standard Power Supply |
LP-E17 |
| Still Image Format |
JPEG, HEIF, RAW, C-RAW |
| Viewfinder Coverage (Approx.) |
100% |
| Viewfinder Type |
0.39-inch OLED, approx. 2.36million dots
59.94/119.88 fps Refresh Rate |
Weight (g) (Including the battery and memory card) (Approx.)
*For camera kits, weight includes kit lens(es). |
739 |
| White Balance |
Auto (Ambience priority / White priority), Daylight, Shade, Cloudy (Effective in twilight and sunset), Tungsten light, White fluorescent light, Flash*, Custom, Color temperature setting (approx. 2500–10000 K) White balance shift and white balance bracketing features available * Flash color temperature information transmission possible (EX / EL Series Speedlite) |
| X-sync (sec.) |
Mechanical shutter: 1/200
Electronic 1st curtain: 1/250 |
