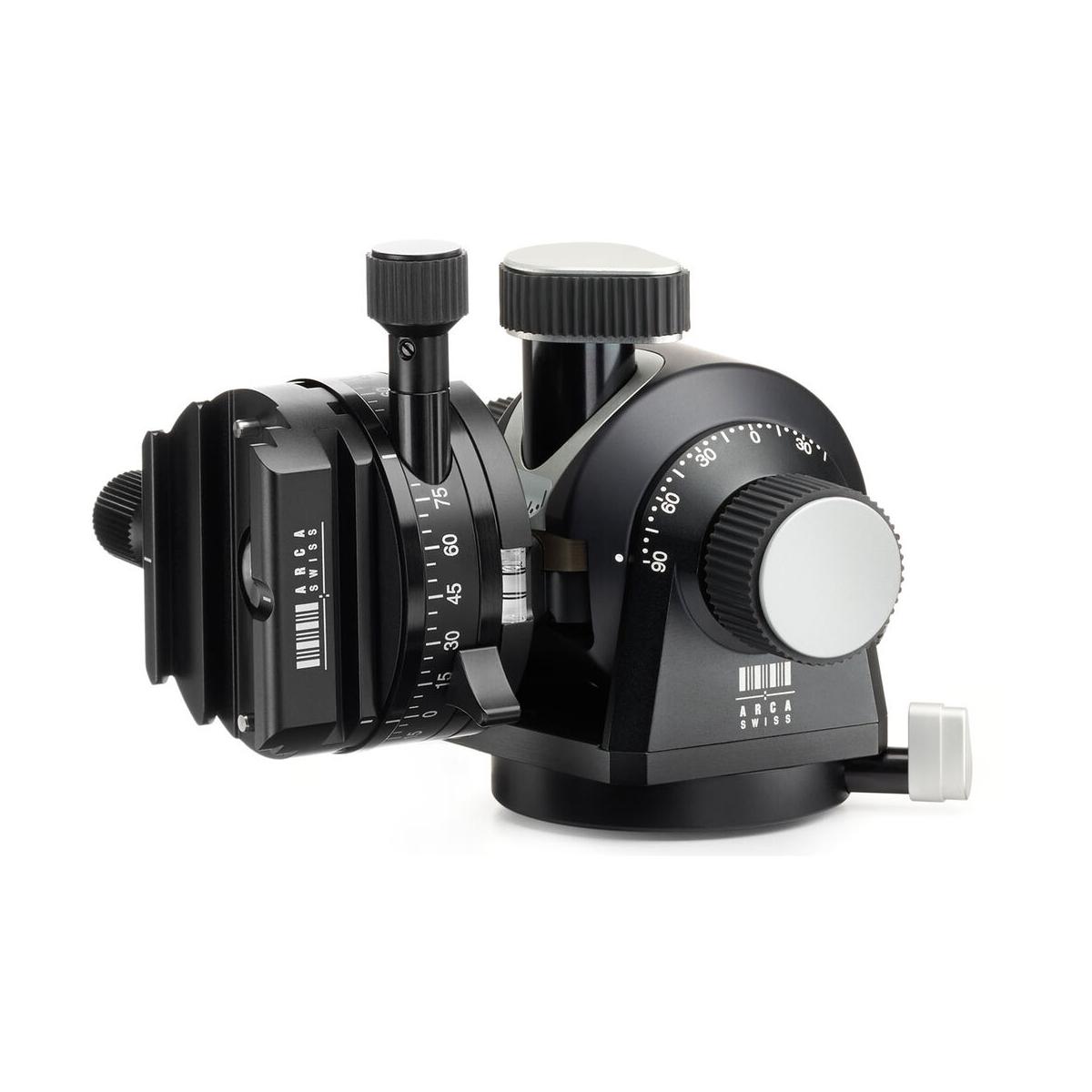

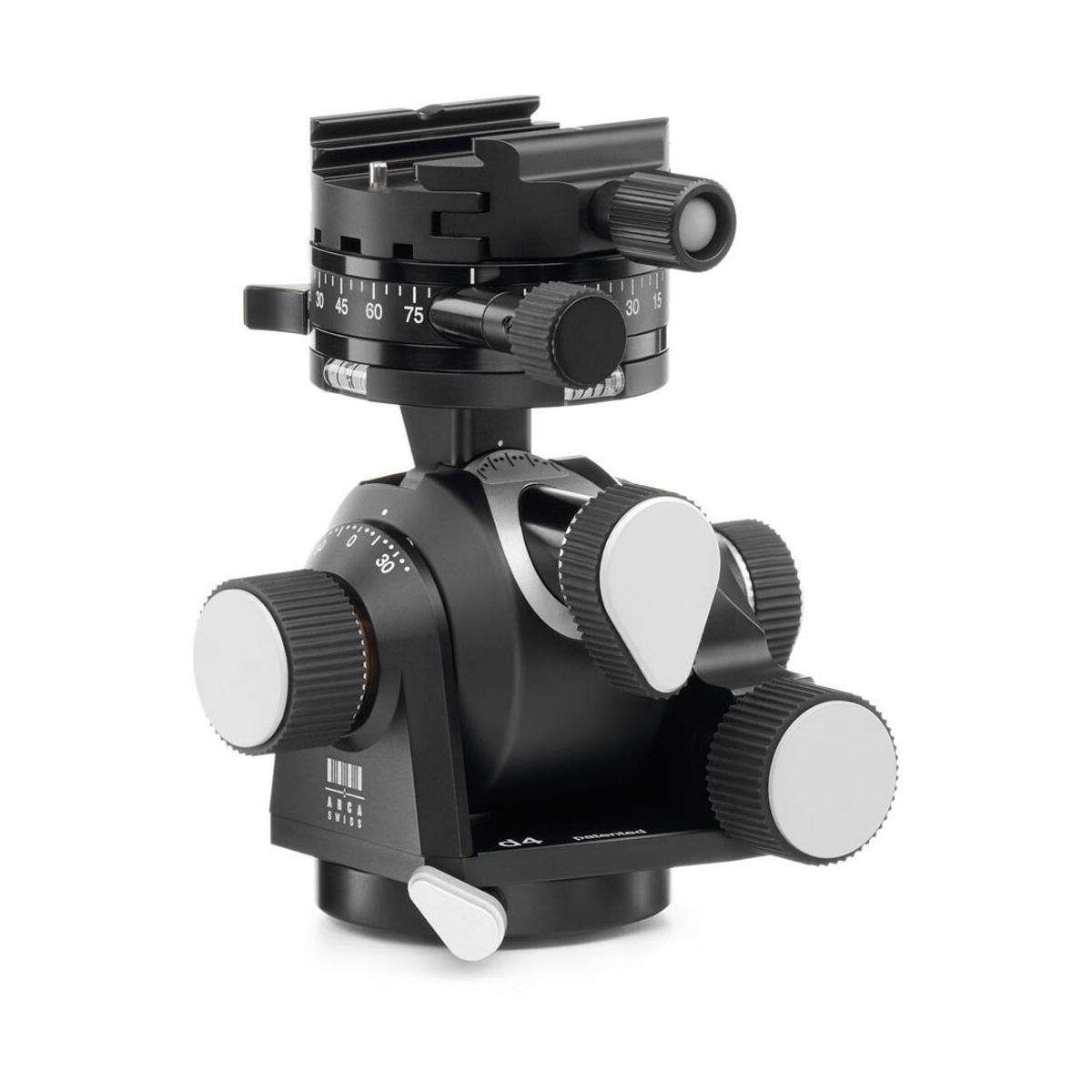

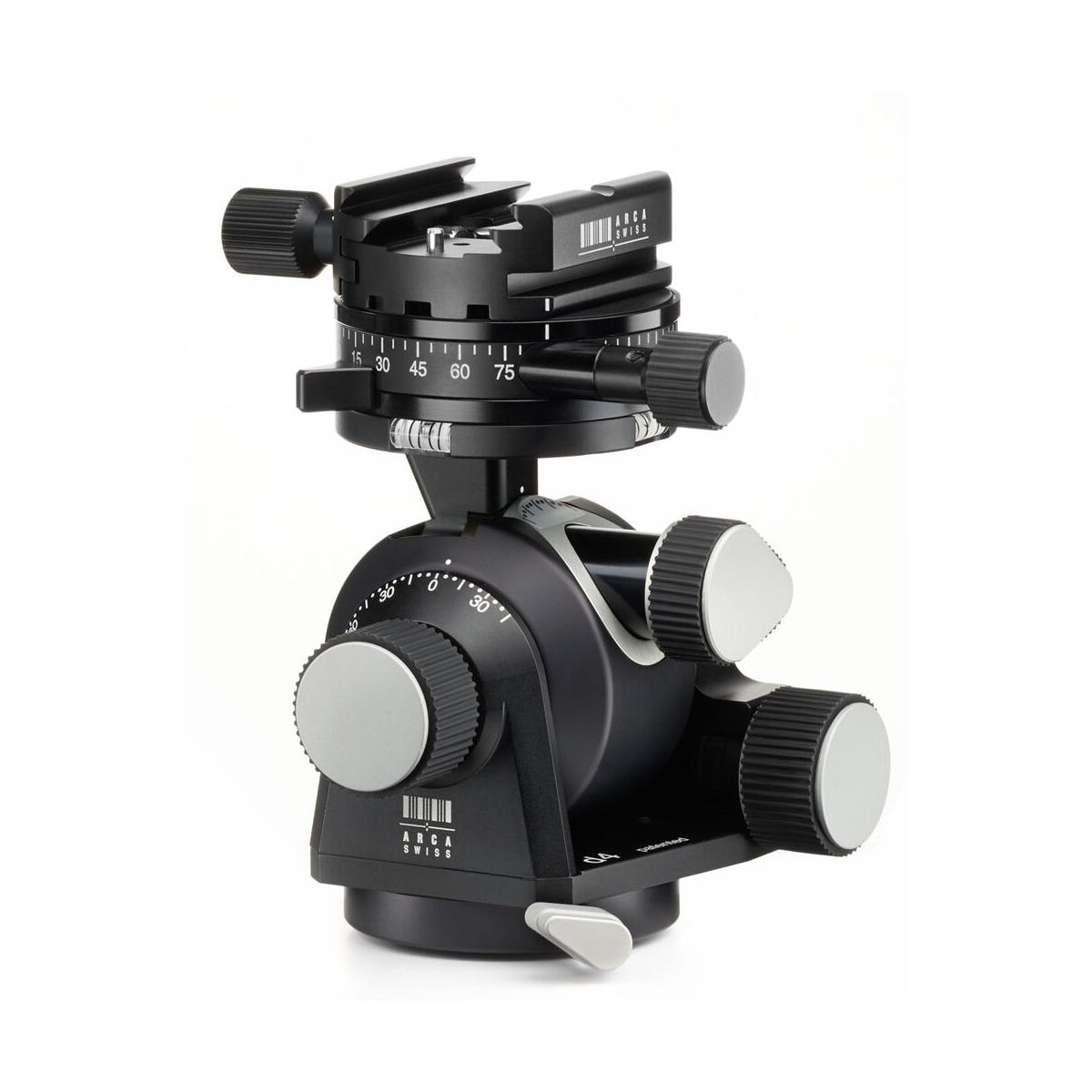

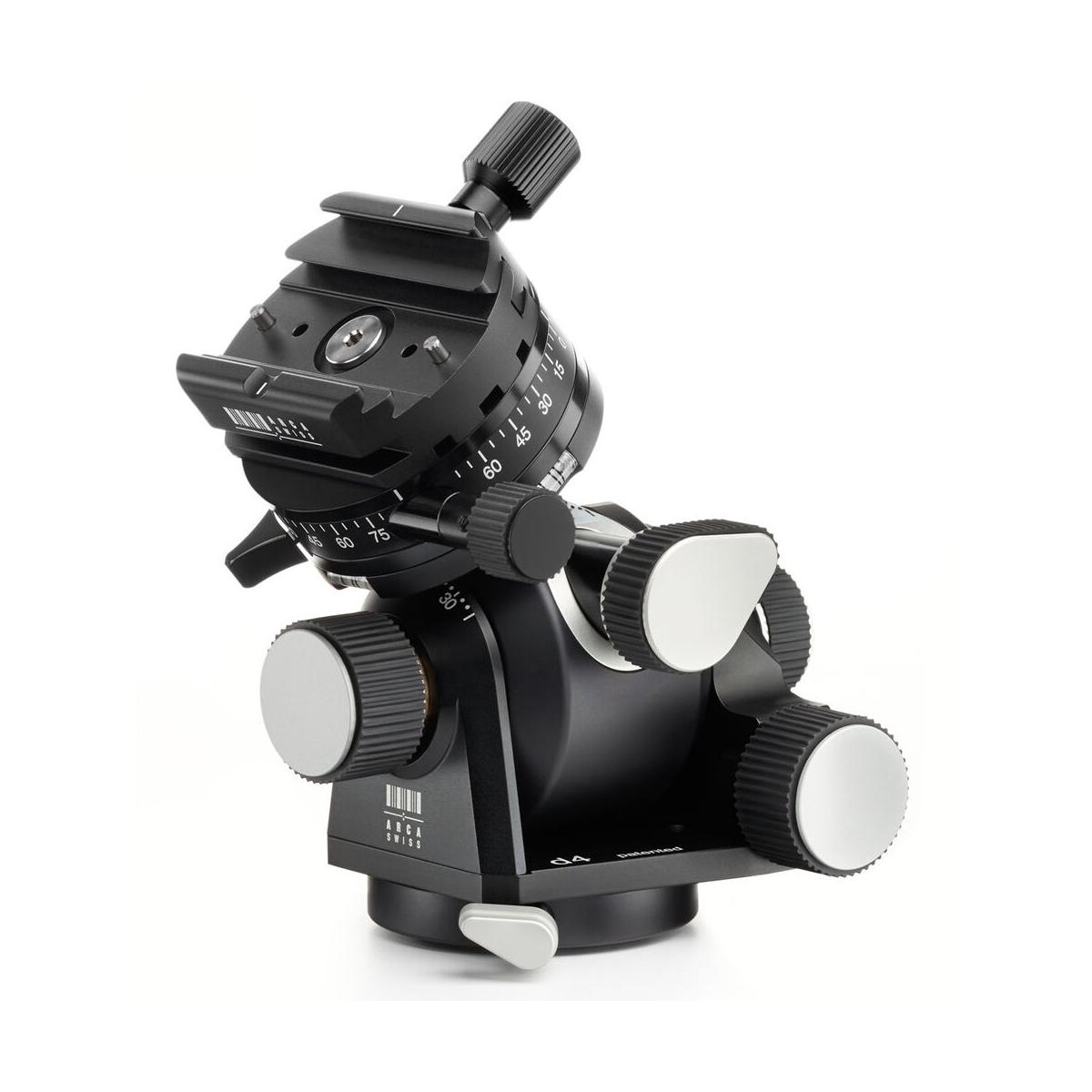

The ARCA-SWISS D4 gp tripod head offers ultimate control with its geared panning feature, providing coarse and quick adjustments or micrometric geared rotation of the camera. Its innovative and patented design, elegant and robust construction, and separate manual and geared controls for vertical and horizontal tilt make it a top choice for photographers.

• Professional-grade, geared tripod head designed for precision and versatility
• Separate controls for quick manual movements or precise micrometric geared movements, when locking levers are fixed
• Centralized movement of the horizontal and vertical axes minimizes compositional changes
• Weighs 2.2 lb / 980 gr with a load capacity of 66 lbs / 30 kg
• Horizontal tilt +40/-40°, vertical tilt +90° to -40°
• Dual panning mechanisms - 360° geared or manual top panning, plus 360° manual base panning
• Choice of quick release - Classic, flipLock® or monoball®Fix

d4 gp Classic
SKU: 870113

d4 gp flipLock®
SKU: 870114

d4 gp monoball®Fix
SKU: 870115

Type: Geared tripod head
Geared Operation: Gear-driven vertical/horizontal movements when manual levers are locked, with gear-driven top panning
Weight: 2.3 lb / 1045 gr
Dimensions: 133 x 110 x 90 mm
Load Capacity: 66 lbs / 30 kg
Base Mount: 3/8"-16 threaded socket
Panning at Base: Yes, manual, 360°
Panning at Top: Geared or manual top pan, 360°
Horizontal Tilt: +40/-40°
Vertical Tilt: +90° to -40°
Levels: 2 tubular levels on the top panning platform
Friction Control: No
Compatible camera plates: Classic or monoball®Fix
Feature: Self-locking geared + manual controls
