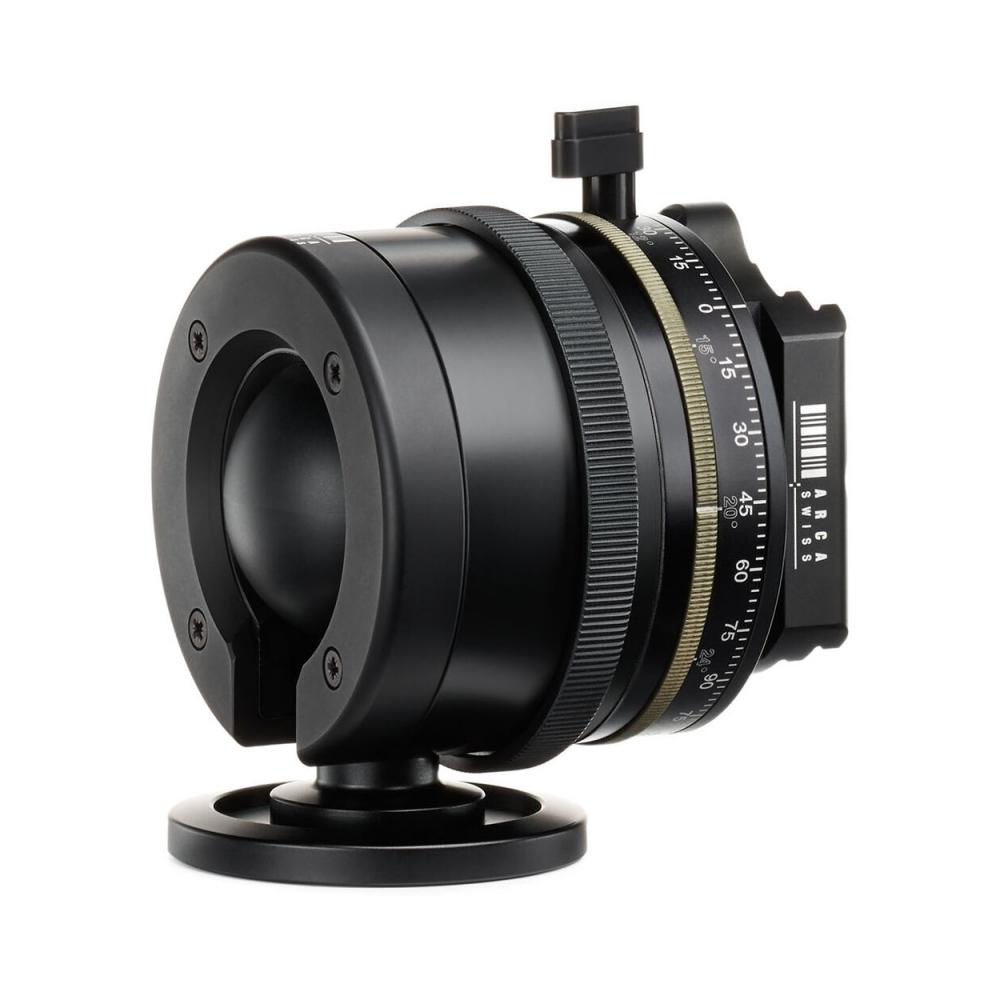

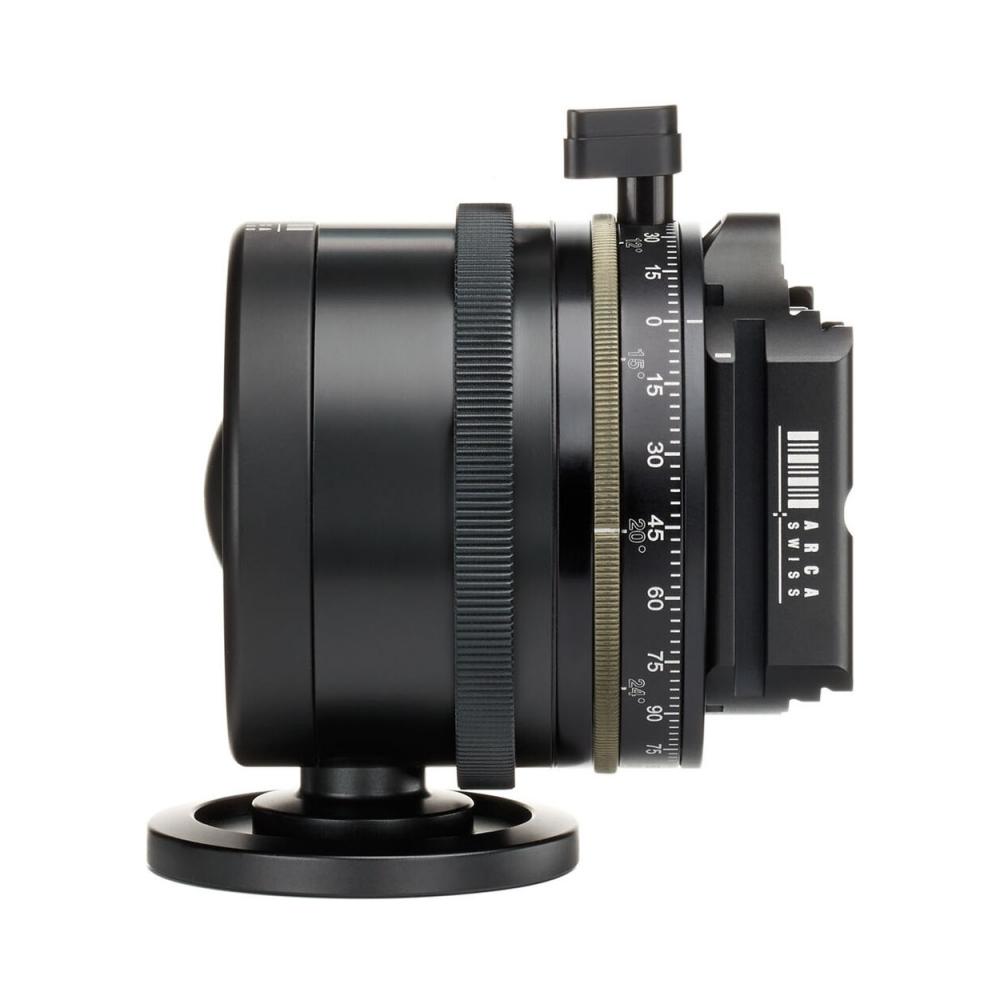

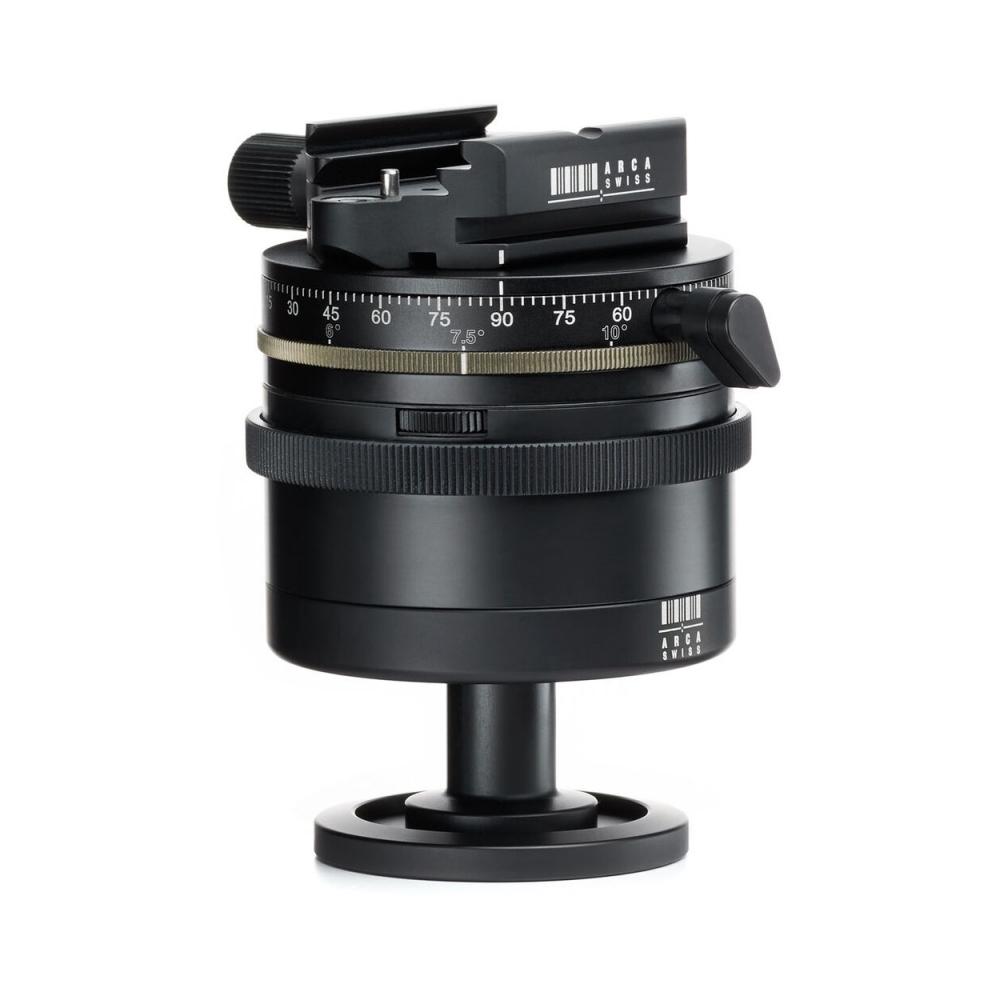

The ARCA-SWISS monoball® p1+ cp tripod head is a lightweight and versatile tripod head with additional capability for capturing panoramic images. It provides unmatched ease of use, speed, and control with 90° tilt and 360° top panning. Its low profile variable interval rotator can be panned freely or in preset selectable increments. Its patented aspherical monoball® features three locking elements to ensure smooth movement and control of the camera in any axis.

• Sleek minimal design with simple intuitive operation
• Inverted monoball® design for greater stability
• Aspheric ball provides increased friction as the monoball® tips
• Friction "+" control lock for all types of camera adjustment and security
• Weighs 1.4 lb / 645 gr with a load capacity of 66 lb / 30 kg
• Tilt range +/- 35° wtih 90° tilt through the notch
• Variable interval rotator with audible and tactile "clic" stops
• Lower scale with 10 detent options - 40° (9 stops), 30° (12 stops), 24° (15 stops), 20° (18 stops) 15° (24 stops), 12° (30 stops), 10° (36 stops), 7.5° (48 stops), 6° (60 stops) and free panning when set to the "OFF" detent
• Choice of quick release - Classic, flipLock® or monoball®Fix

Specifications

monoball® p1+ cp, Classic
SKU: 801157

monoball® p1+ cp, flipLock®
SKU: 801158

monoball® p1+ cp, monoball®Fix
SKU: 801156

Type: monoball® tripod head
Weight: 1.4 lb / 645 gr
Dimensions: 116 x 90 x 75 mm
Weight Capacity: 66 lbs / 30 kg
Body Diameter: 75 mm
Base Mount: 3/8"-16 threaded socket
Panning at Base: None
Panning at Top: Yes, 360°
Levels: Target bubble level on the quick release
Friction Control: Yes
ClicPan® panoramic rotator: Detent options - 40° (9 stops), 30° (12 stops), 24° (15 stops), 20° (18 stops) 15° (24 stops), 12° (30 stops), 10° (36 stops), 7.5° (48 stops), 6° (60 stops), and OFF for 360° free panning
Feature: p1+ design update allows positioning at any angle
