| Oscillator type: |
GFSK |
| Carrier frequencies: |
2.4GHz (2404-2476MHz) |
| Antenna: |
2.4GHz built-out antenna |
| Frequency response: |
35Hz-14kHz (+/-3dB) |
| Signal to noise ratio: |
75dB or more |
| Polar pattern of lavalier microphone: |
Omni-directional |
| Reference deviation |
10ppm |
| Distortion |
0.05% or less ((32Ω,1 kHz, 65mW output) |
| Voice delay |
62ms or less |
| Receiver sensitivity |
-87dBm |
| RF output power |
5mW |
| Headphone output level |
65mW (32Ω) |
| Reference audio input level |
-30~-42dBv (MIC input, 0dB attenuation) |

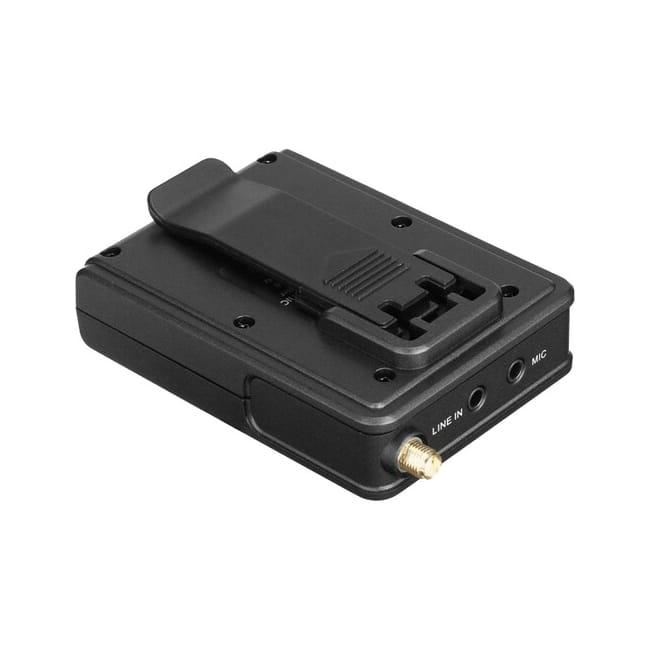

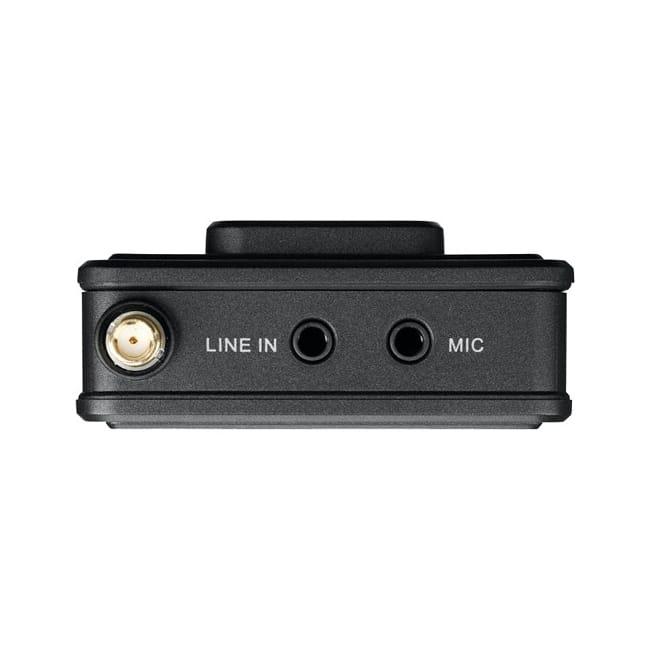

| Audio input connectors |
3.5mm mic input
3.5mm line input |

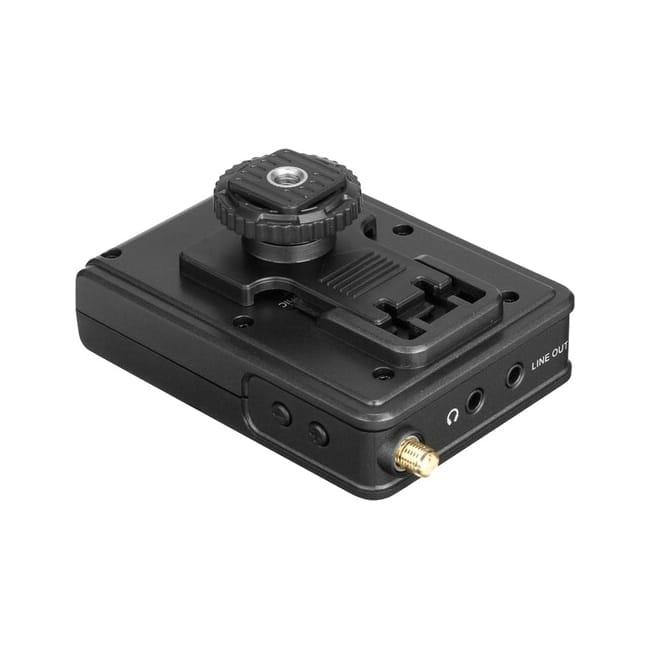

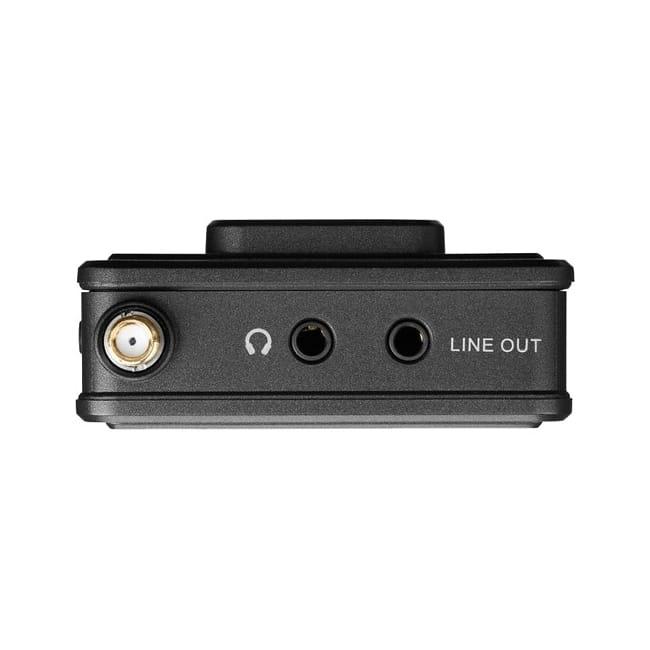

| Headphone output connector |
3.5mm mini jack |
| Operating Distance |
70m (without obstacle) |
| Battery |
Two AA size batteries |
| Approximate Battery Life |
≥ 20 hours |
| Dimensions |
TX: 62.5*85.7*26.4 mm
RX: 62.5*85.7*26.4 mm
|
| Weight |
TX: 68g (2.40oz) (without batteries)
RX: 68.5g (2.42oz) (without batteries)
|
| Operating temperature |
0°C to 50°C |
| Storage temperature |
–20°C to +50°C |
