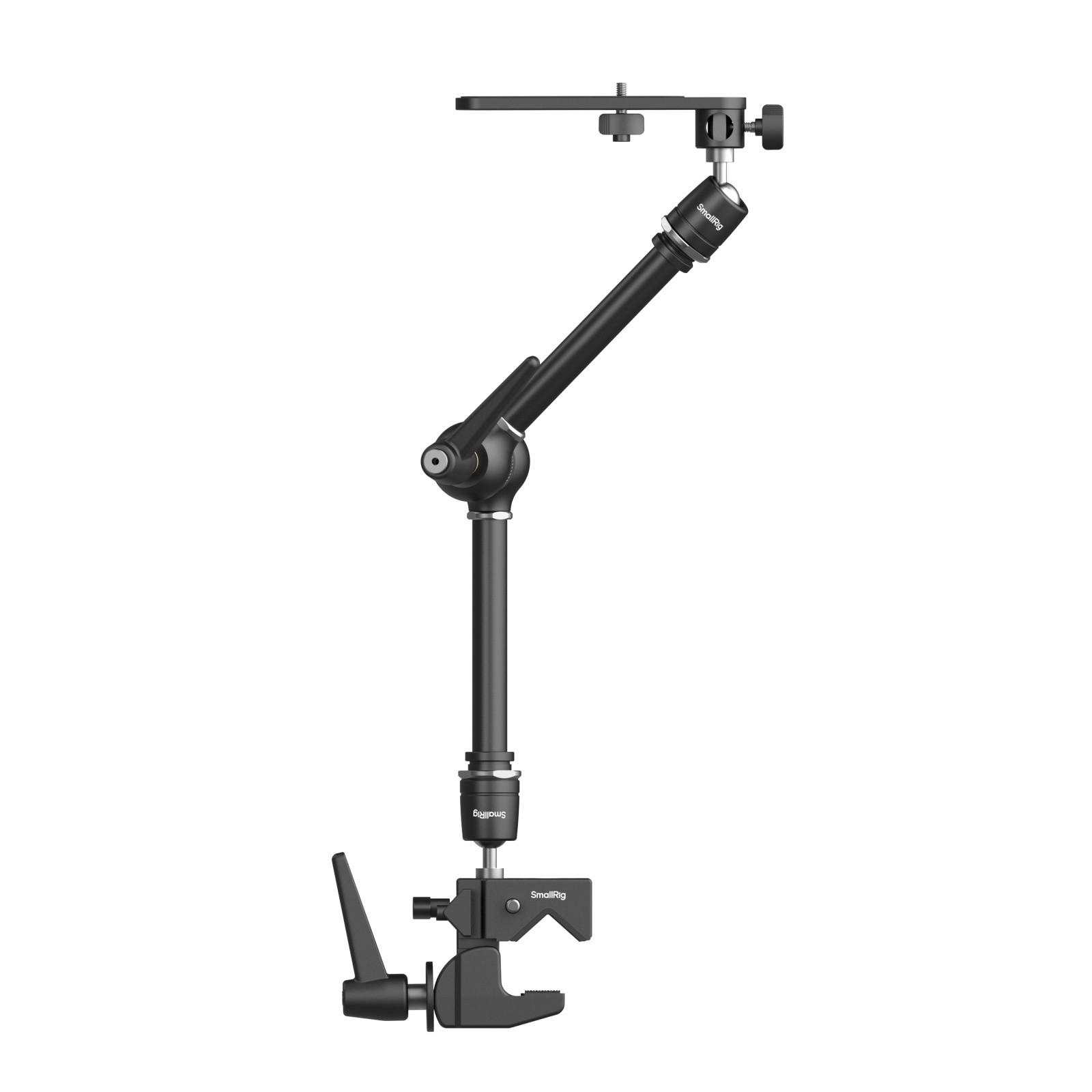

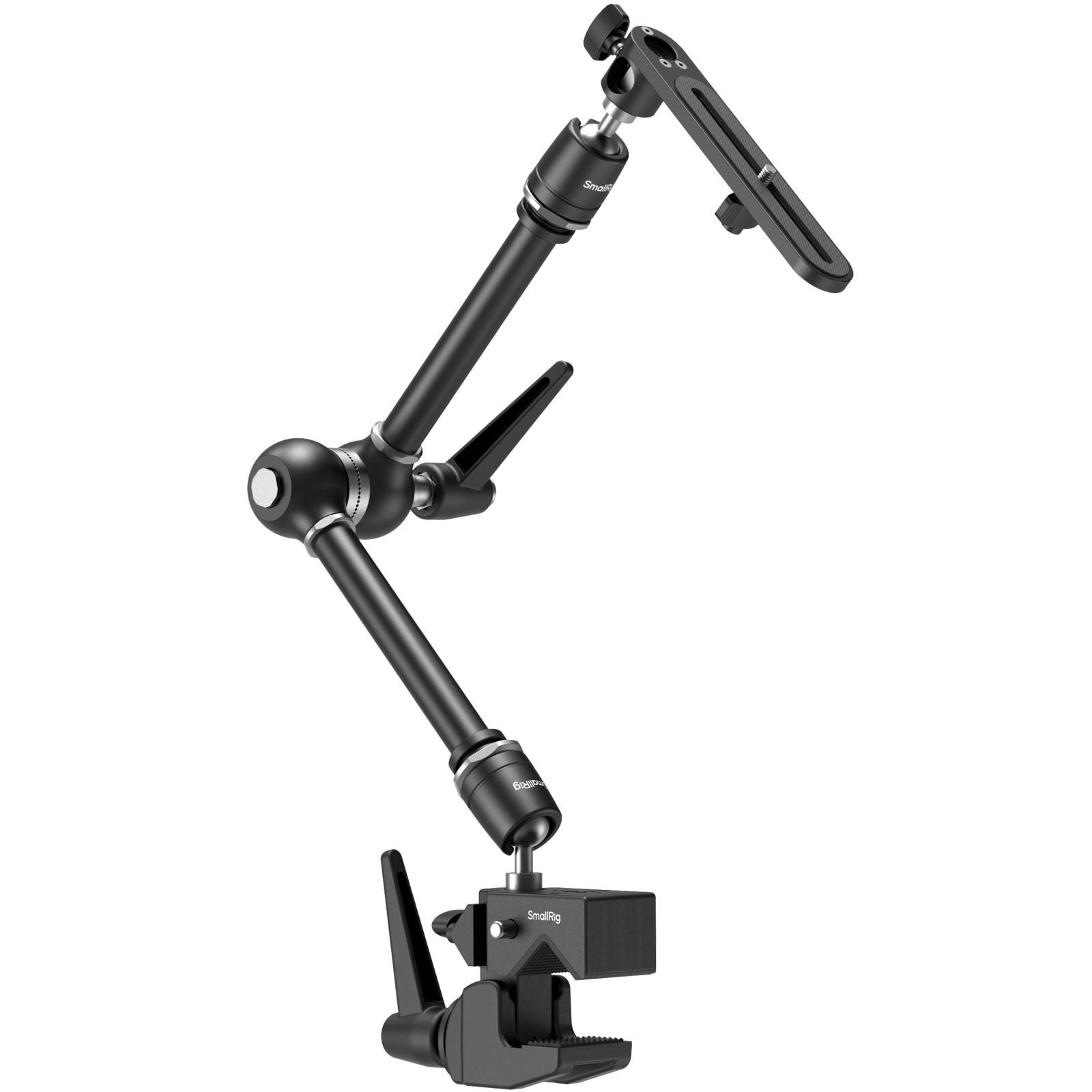

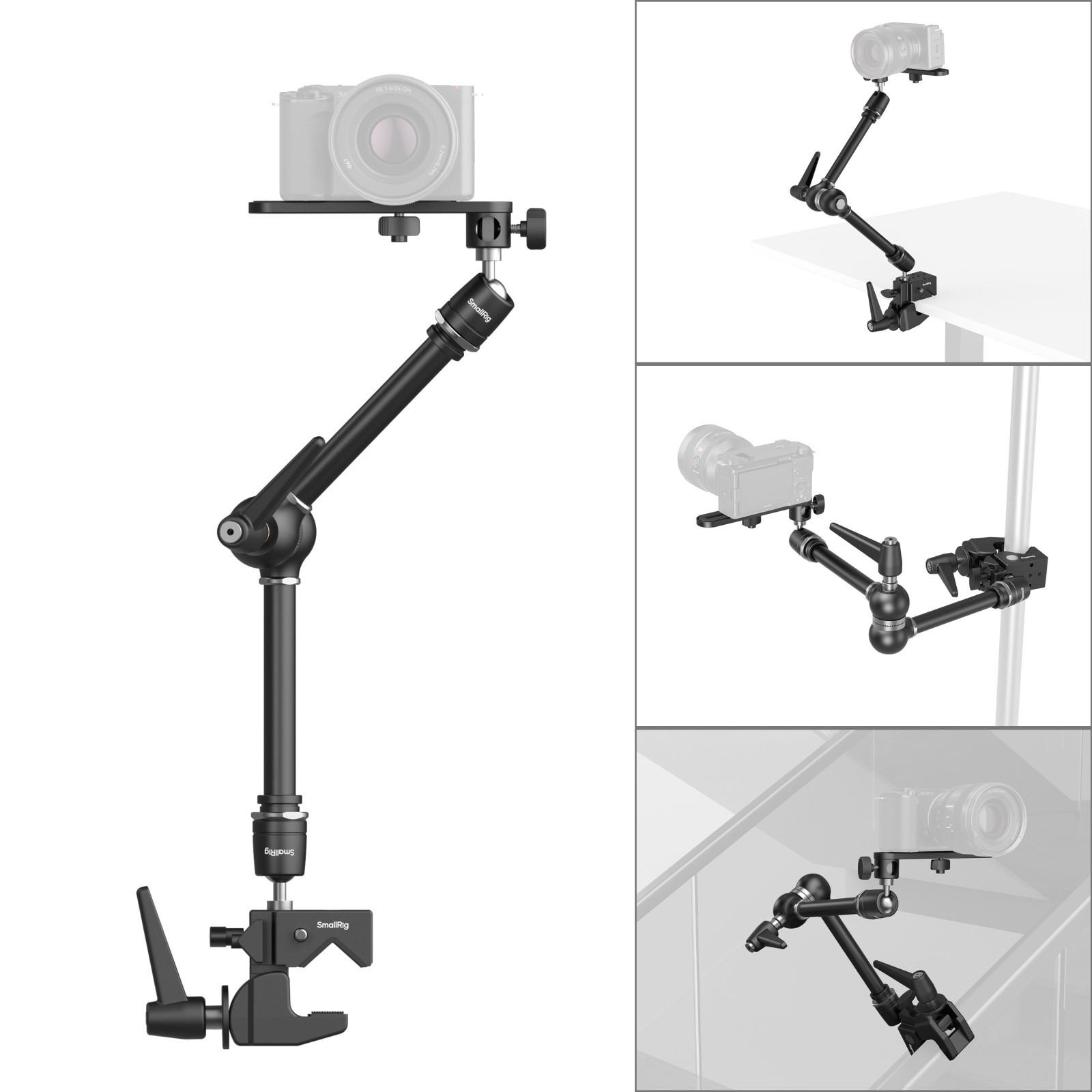

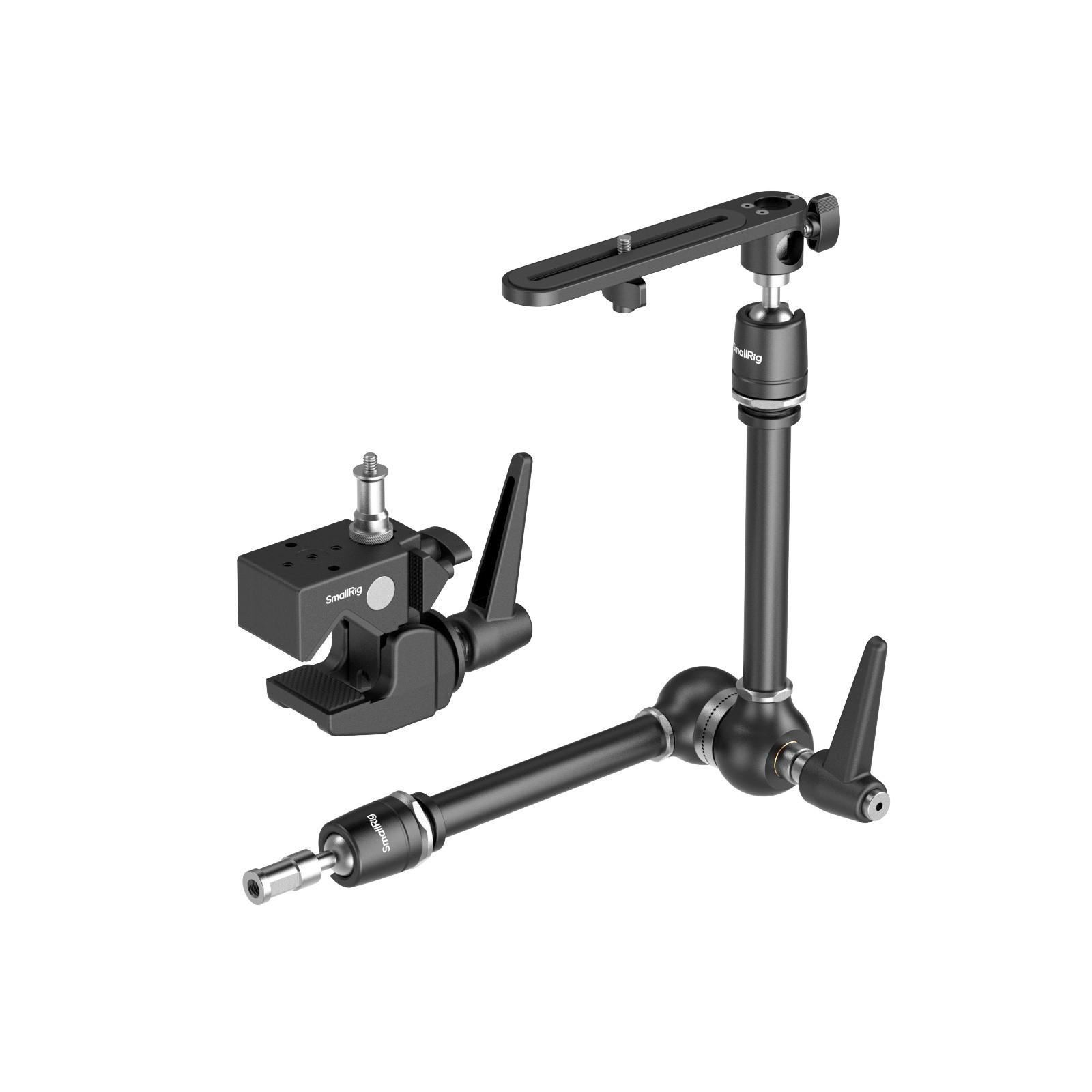

SmallRig Super Clamp with Magic Arm Kit 4862 offers a flexible support solution for mounting equipment in tight spaces. This kit includes an adjustable magic arm and a super clamp.

The magic arm, measuring 524mm (20.6in) in length, securely attaches to the super clamp via the anti-twist 1/4"-20 thread. The clamp grips round tubes with diameters ranging from 10–55mm (0.4–2.2in) and, when used with the removable wedge block, can secure flat surfaces up to 30mm (1.2in) thick. The clamp jaws feature built-in pads to protect clamped objects and enhance grip stability.

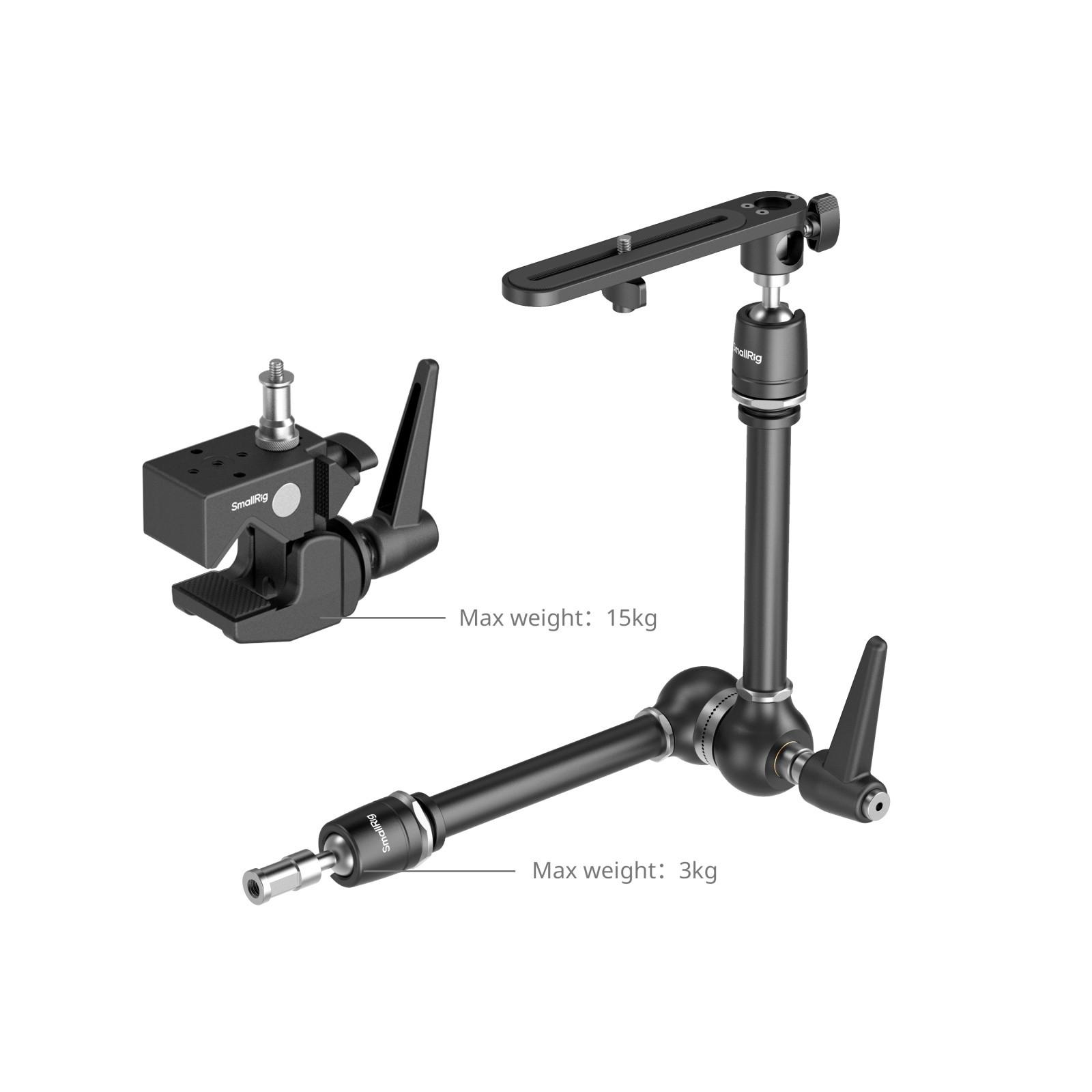

Constructed from durable aluminum alloy, the entire kit supports loads of up to 3kg (6.6lb). For other compact filming setups, consider related SmallRig kits such as the Magic Arm with Crab Clamp Kit (ID 4454, 3726).

Work With

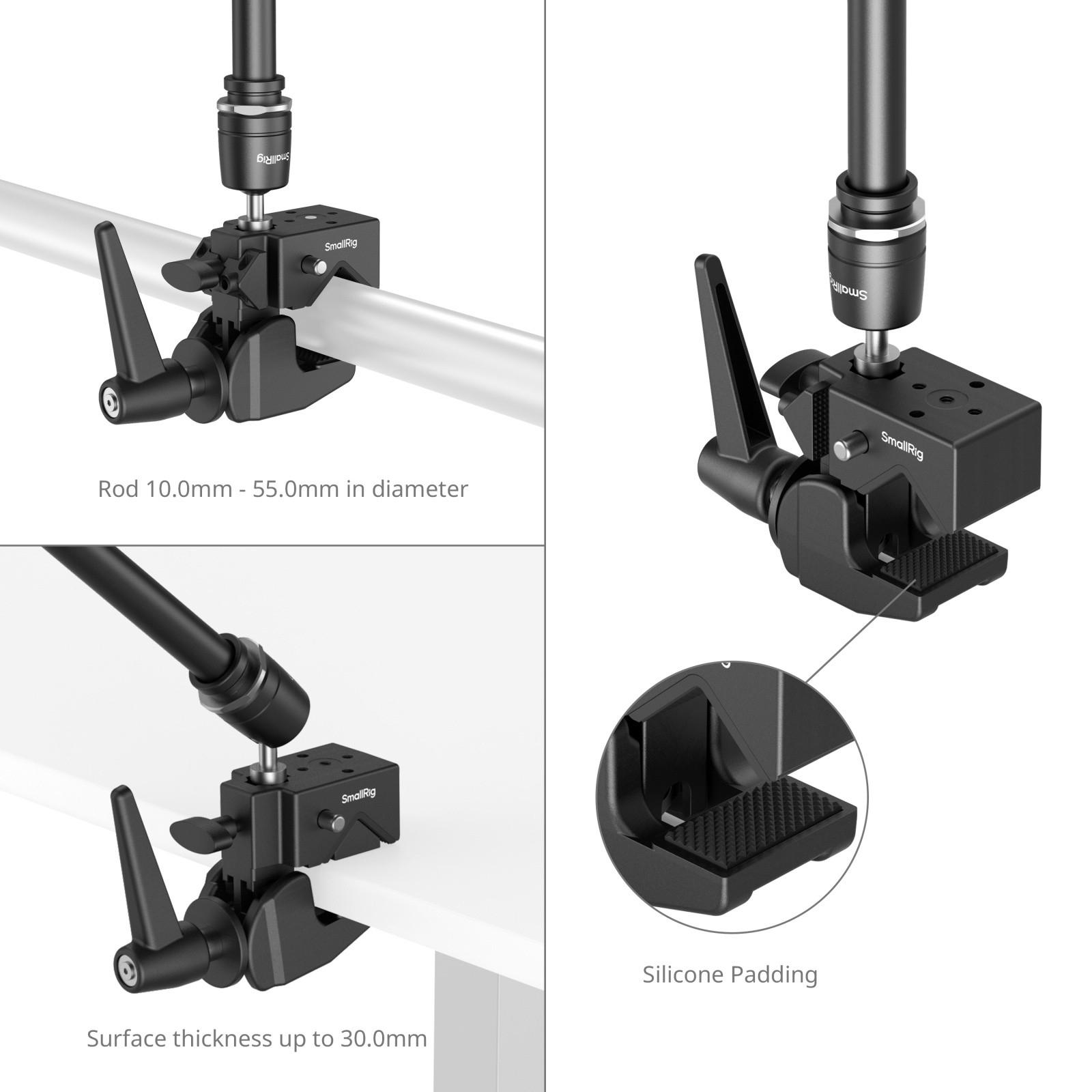

When clamping cylindrical objects, remove the wedge block; suitable for cylindrical objects with diameters ranging from 10mm to 55mm (0.4in to 2.2in)

When clamping flat surfaces, install the wedge block; the maximum clamping thickness is 30mm (1.2in)

Not recommended for flat surfaces exceeding 30mm (1.2in) in thickness

(For accuracy, please refer to the actual data.)

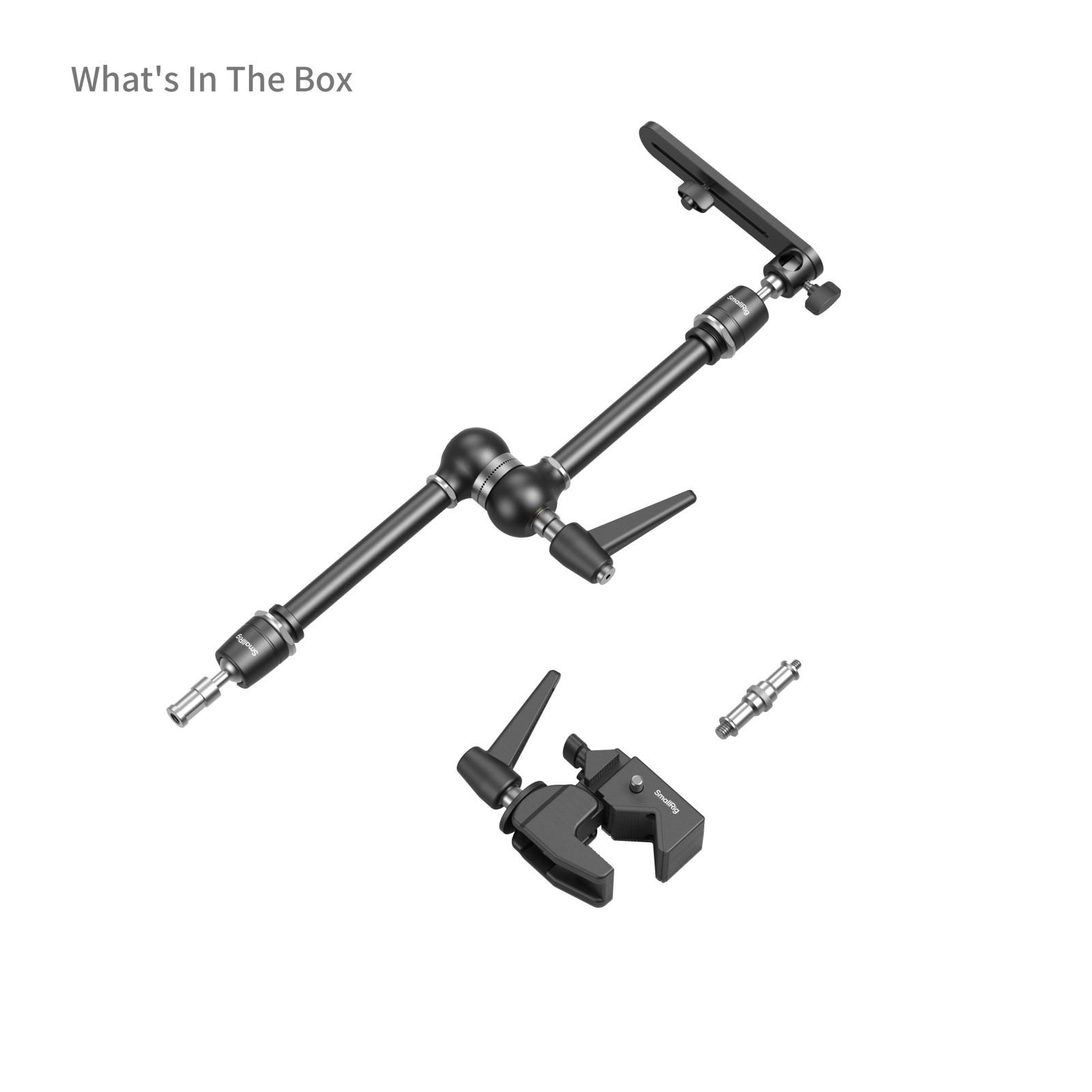

Packing List

Super Clamp x 1

Magic Arm x 1

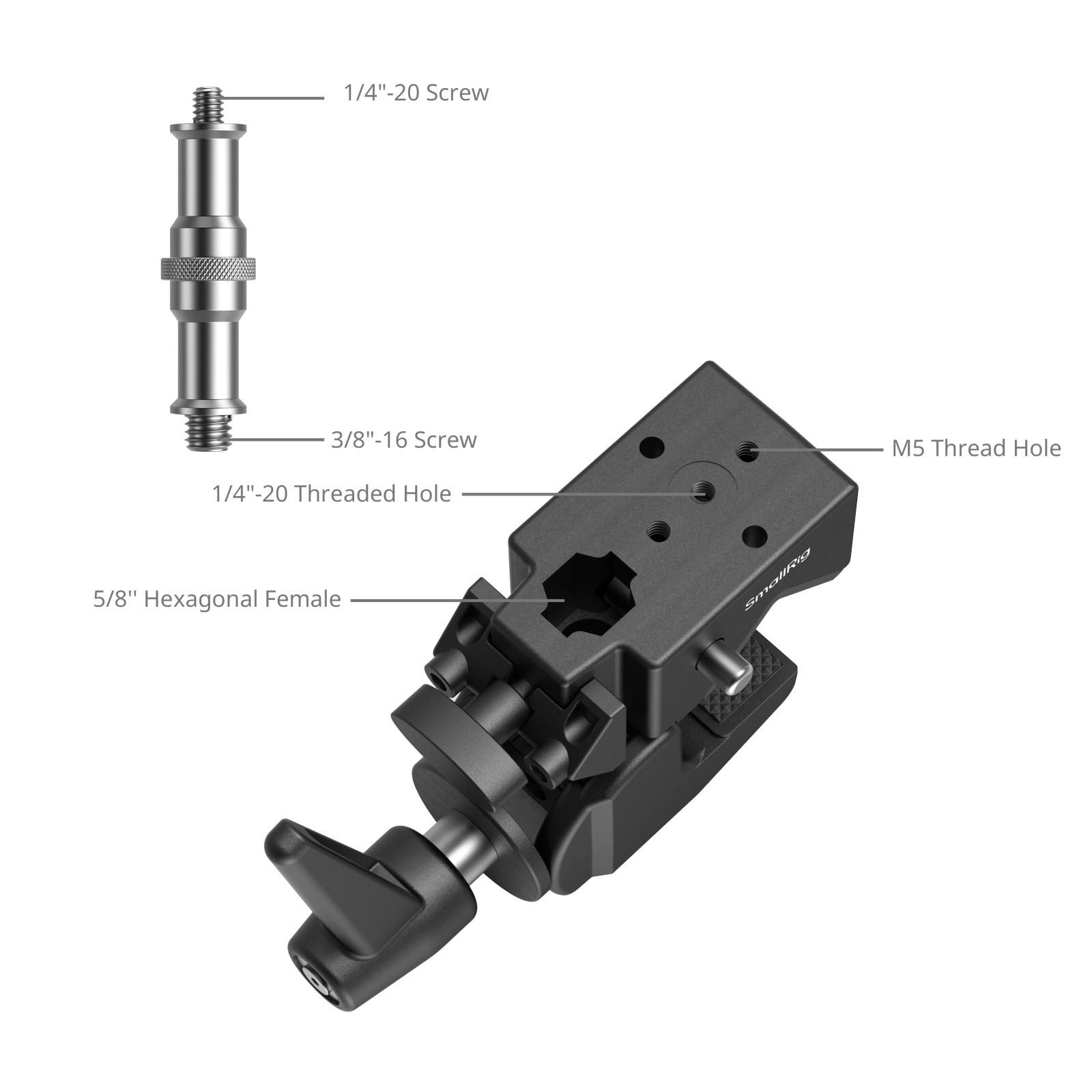

1/4"-20 & 3/8"-16 Top Screw x 1

Technical Data

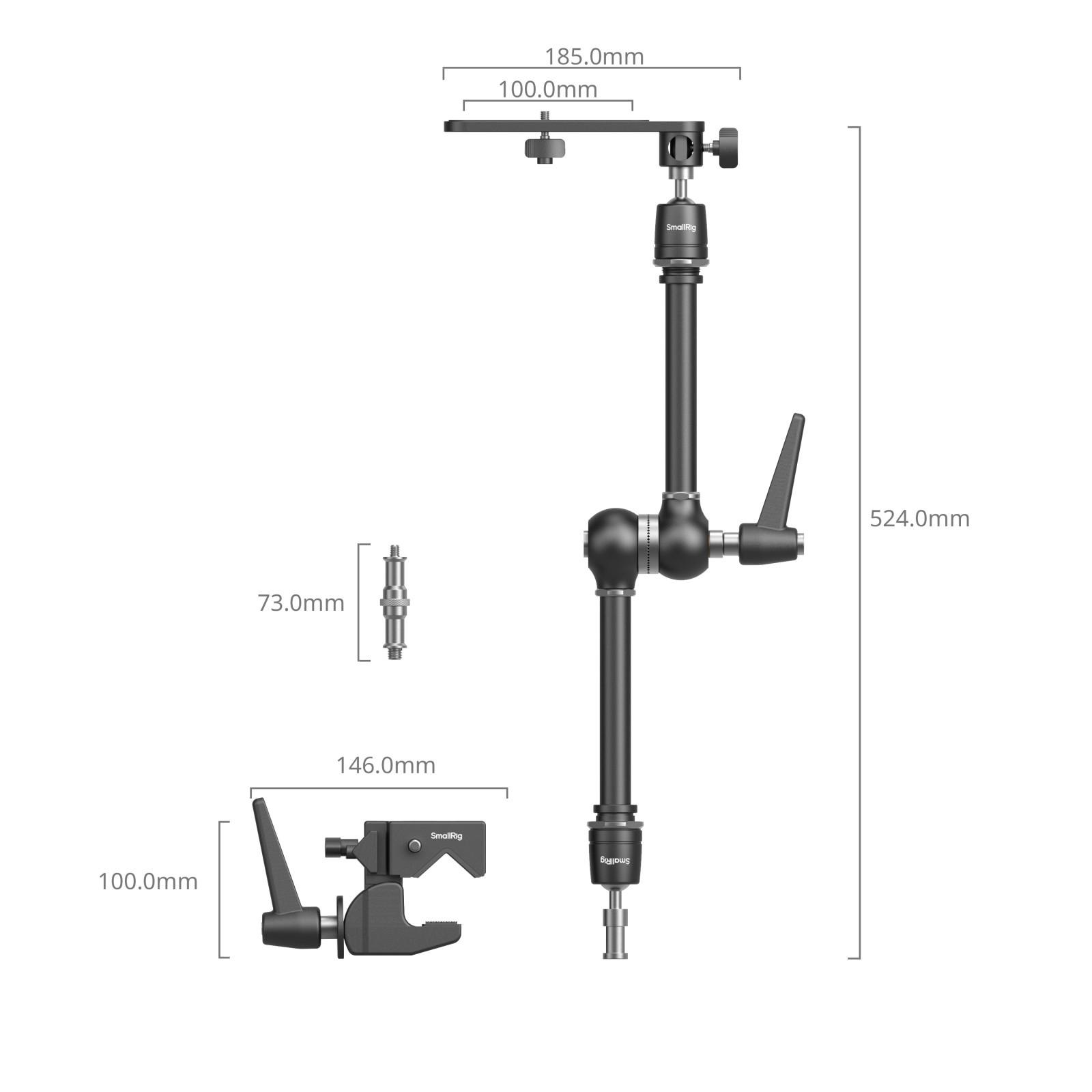

Product Dimensions: 285.0 x 140.0 x 90.0mm / 11.2 x 5.5 x 3.5in

Package Dimensions: 415.0 x 221.5 x 75.0mm / 16.34 x 8.73 x 2.95in

Product Weight: 1830.0 ± 5.0g / 64.5 ± 0.2oz

Package Weight: 2080.0 ± 5.0g / 73.36 ± 0.2oz

Material(s): Aluminum Alloy
