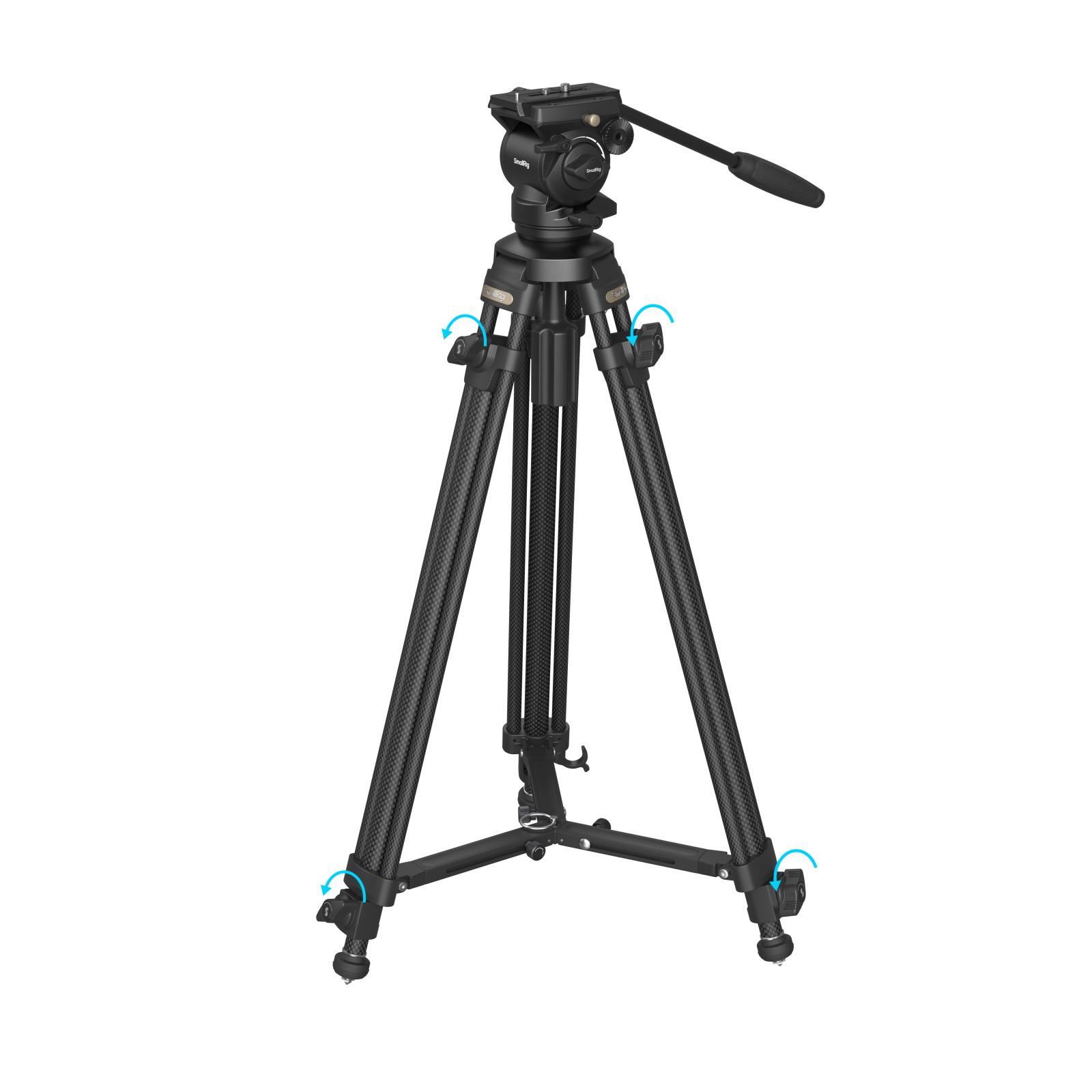

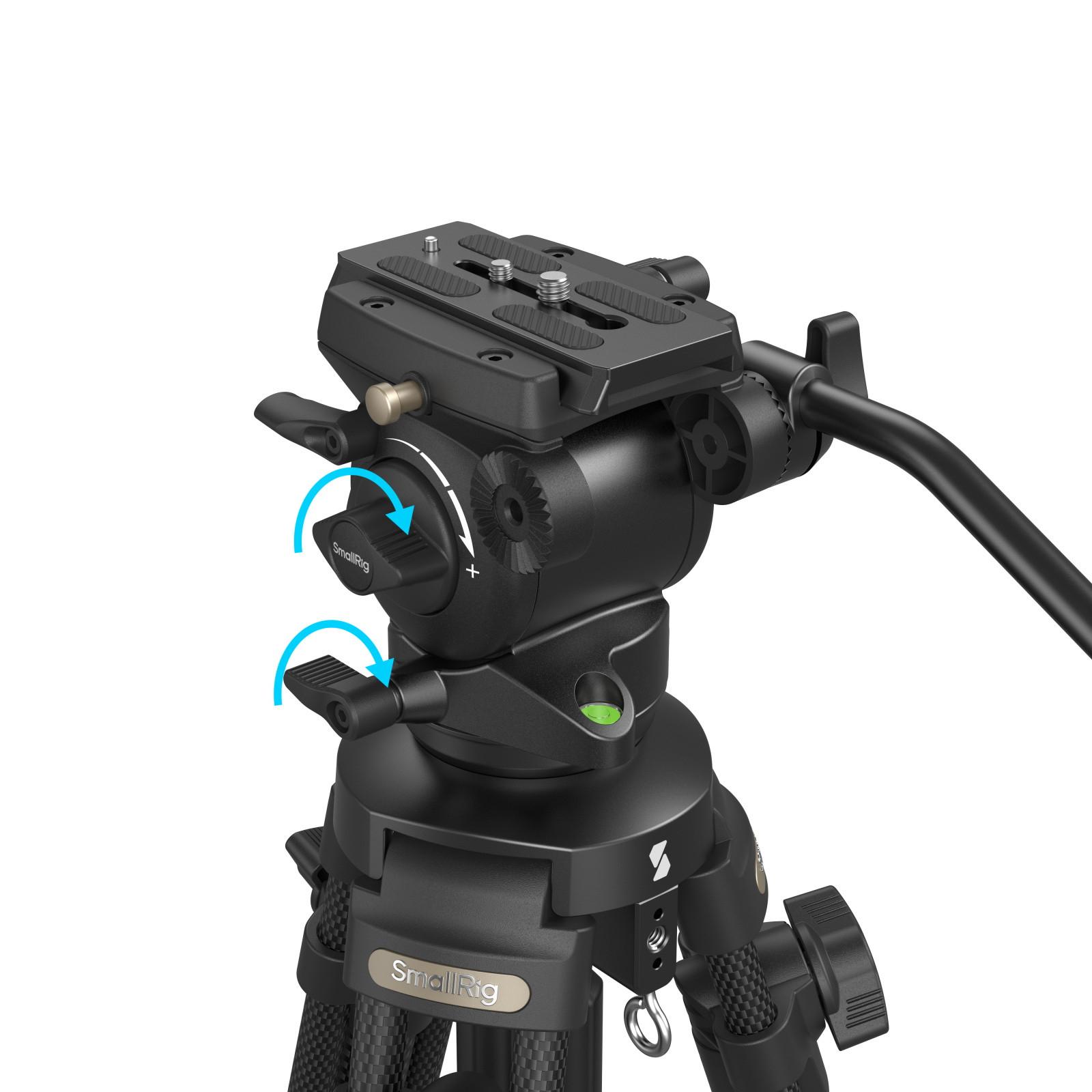

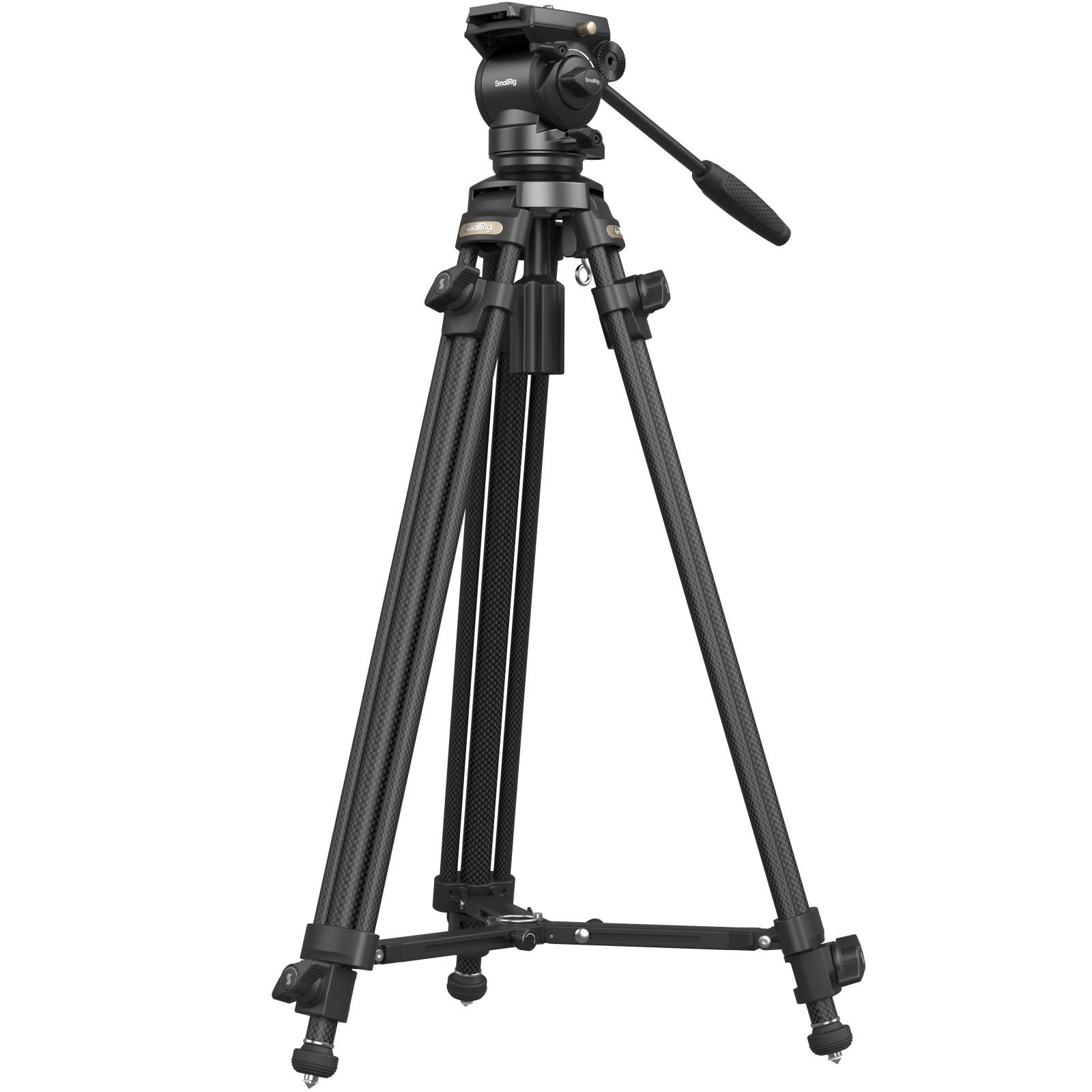

SmallRig Lightweight Video Carbon Fiber Tripod Kit AD-50 4685 is a lightweight video tripod kit to facilitate video shooting. The tripod legs are made of carbon fiber, through the 2-1-1 arrangement, to provide stable performance and reduce weight, the weight of the kit is only 2.8kg (6.2lb); suitable for site mobility of the video shooting scene; the tripod comes with a center quick lift rope design, by connecting the center connector pull ring and the bottom of the bowl seat pull ring, you can quickly lift the center connector, reduce the space occupied by the tripod; the tripod through the knob locking method locking legs, the kit system working height range of 73~163cm (28.7~64.1in), folder length of 79cm (31.1in). The video head with adjustable step-less damping system on TILT and a fixed counterbalance system to provide smooth pan and tilt camera movements; The video head load capacity is 6kg (13.2lb), which can meet the use of a small camera; the tripod is equipped with an anti-dislodgement foot spiked design, and the spiked feet mode can be switched through the rotating feet pads, which can meet the needs of different scenarios. The tripod comes with an anti-deflection 1/4"-20 threaded hole for the expansion of external devices such as a magic arm, microphone, monitor, or image transmitter.

Note:

1. Not sand dust resistant.

2. Max load capacity: 6kg (13.2lb).

3. Please lock the mid-level spreader and ground spreader before using this tripod.

Work With

Manfrotto 501PL Quick Release Plate

65mm / 2.56in Bowl Adapter

Packing List

1 x Tripod

1 x Allen Wrench

1 x Smartphone Holder

1 x Storage Bag

1 x Guarantee Card

Technical Data

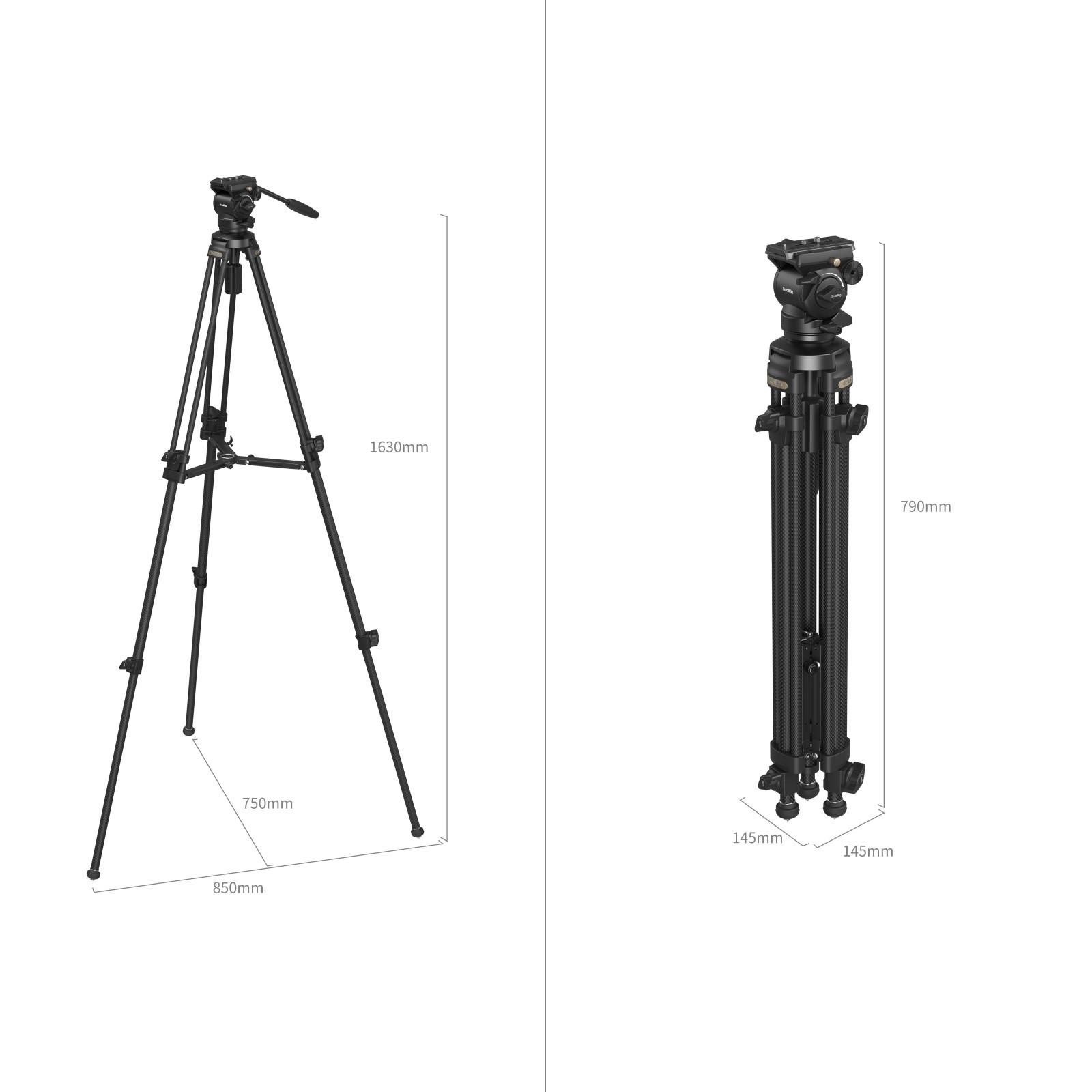

Product Dimensions: 790.0 x 145.0 x 145.0 mm / 31.1 x 5.7 x 5.7 in

Package Dimensions: 815.0 x 150.0 x 150.0 mm / 32.1 x 5.9 x 5.9 in

Product Weight: 2.80 ± 0.1kg / 6.16 ± 0.02lb

Package Weight: 3.87 ± 0.1kg / 8.50 ± 0.02lb

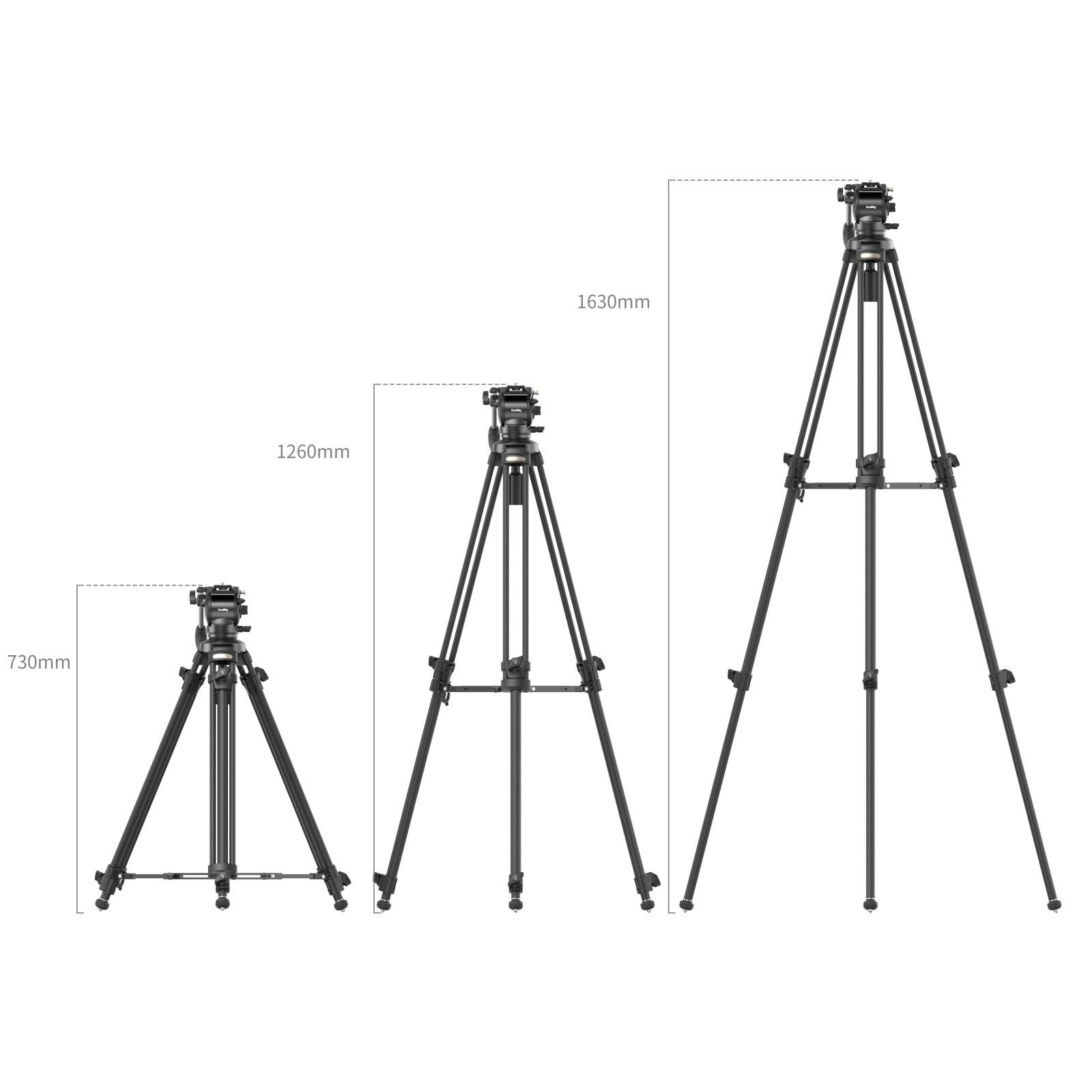

Adjustable Height: 73cm~163cm / 28.7in~64.1in

Closed Length: 79cm / 31.1in

Leg Sections: 3

Leg Diameter: 14mm/24mm/20mm / 0.55in/0.94in/0.79in

Bowl Adatper Diameter: 65mm / 2.56in

Tilt Range: 90° / -50°

Tilt Drag: Continuously adjustable from 0 to max level

Pan Drag: Fixed

Counterbalance System: Fixed

Pan Bar Length: 28cm / 11in

Quick Release Plate Length: 10.5cm / 4.1in

Mid-level Spreader Extended Distance: 8cm / 3.15in

Material(s): Carbon Fiber, Aluminum Alloy, ABS, Stainless Steel, Silicone
