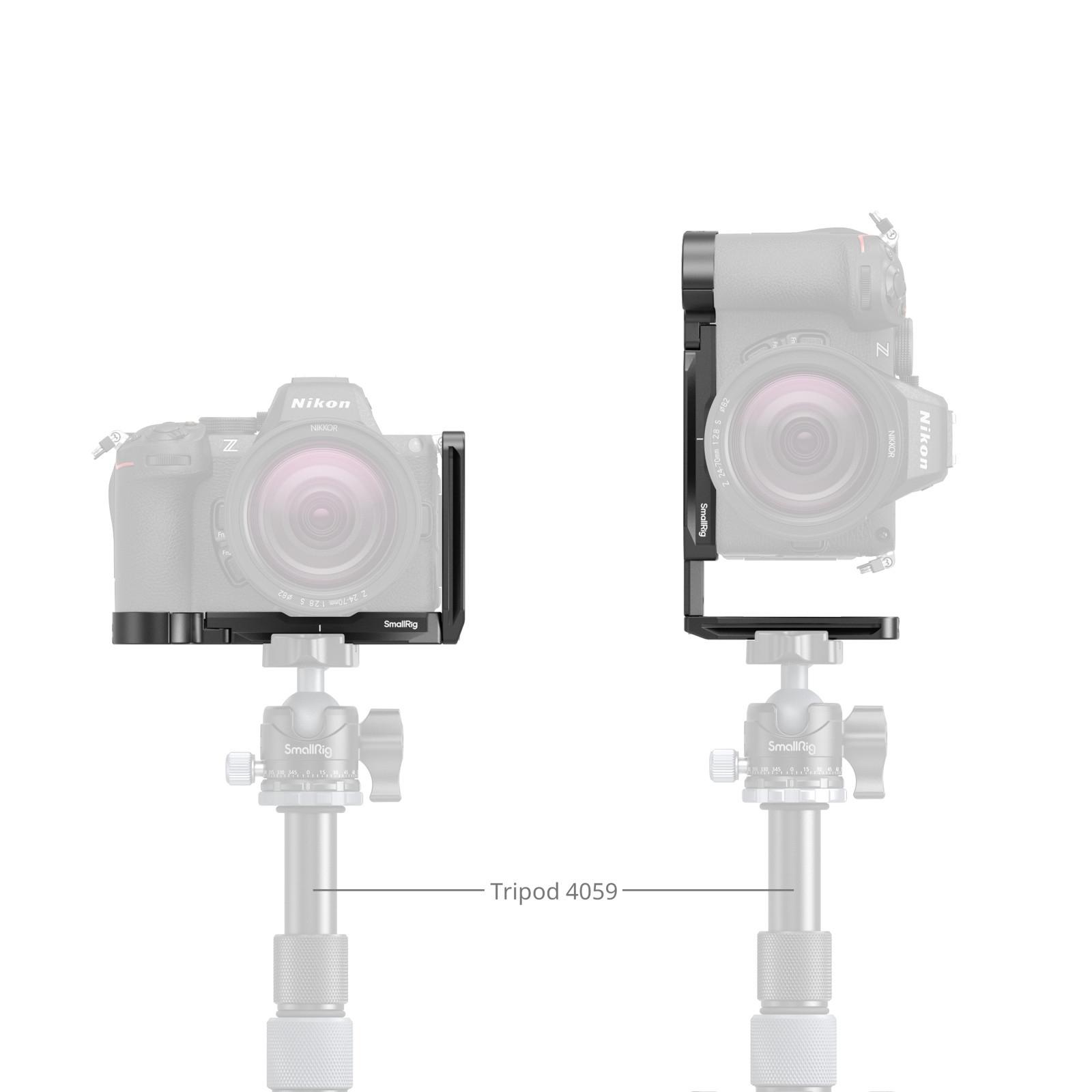

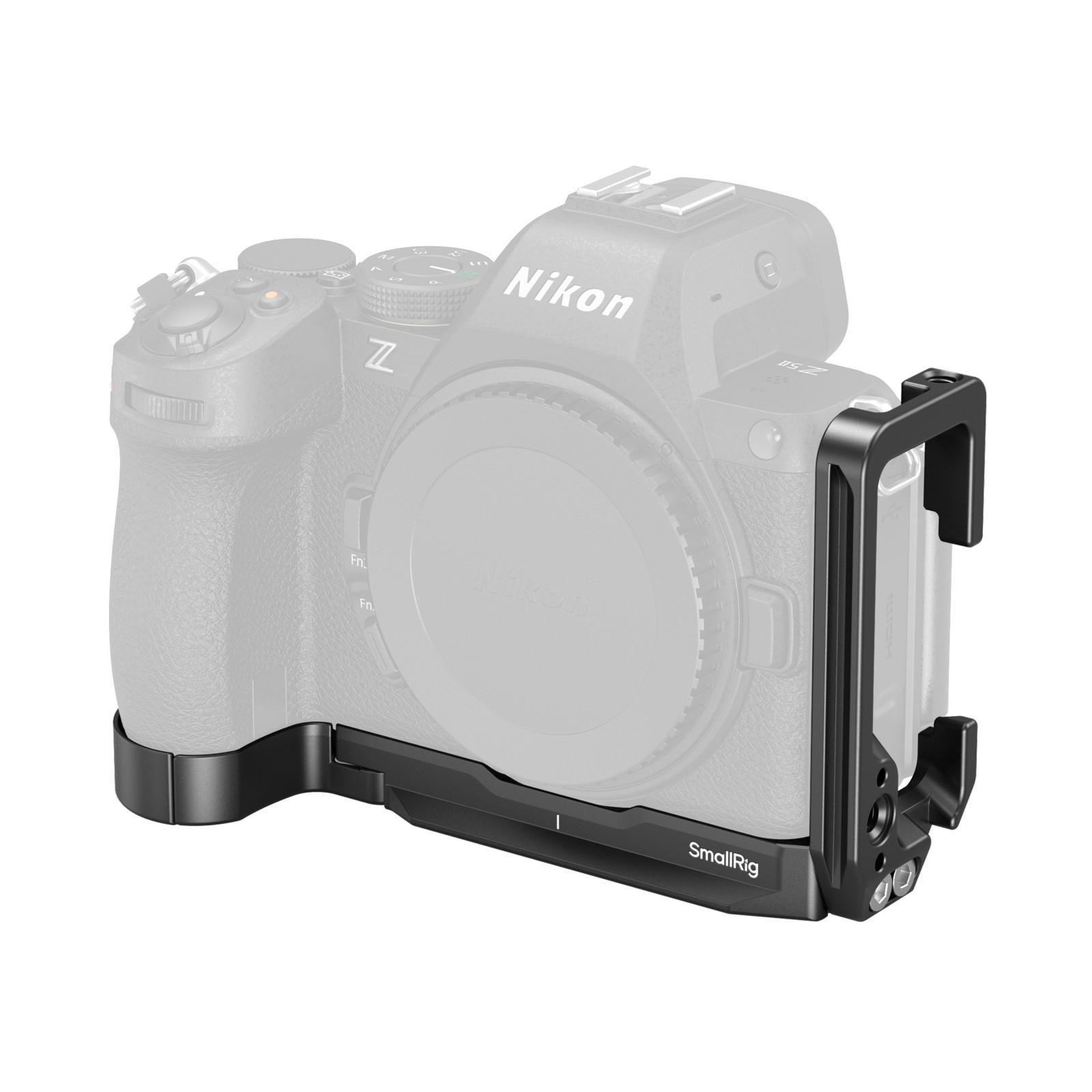

SmallRig L-Shaped Mount Plate for Nikon Z5II 5256 is designed to facilitate quick switching between horizontal and vertical shooting while enhancing the camera’s grip. The L-plate is secured to the camera body using a 1/4"-20 screw and locating pins at the base, preventing deflection. Built-in silicone pads protect the camera from scratches.

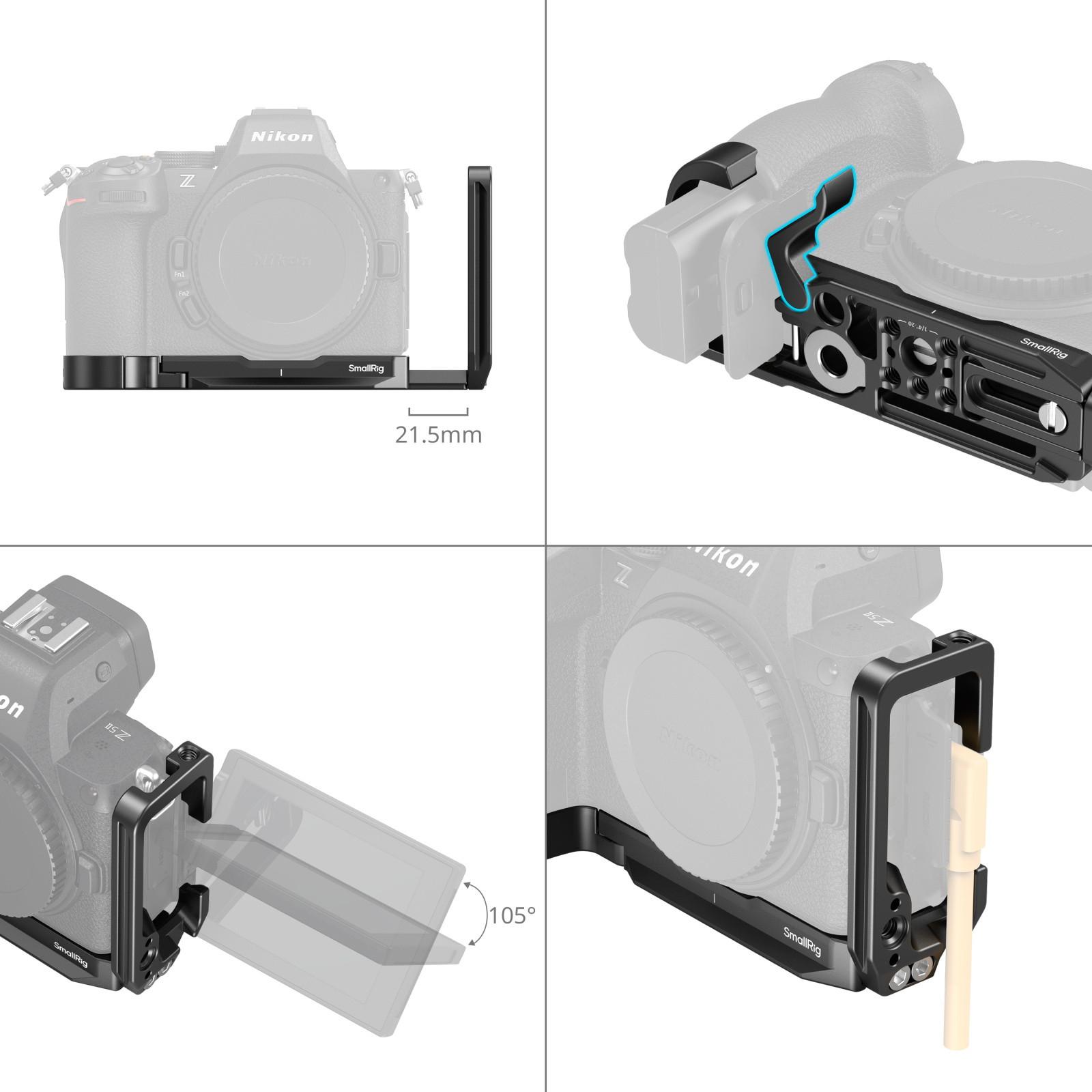

The modular design allows the side plate to be detached and the base plate to be used independently, offering versatility for diverse shooting scenarios. Both the base and side plates are designed to avoid interference with camera ports and functions, such as the battery compartment, angled USB-C cables, and the 105° rotation of the flip screen.

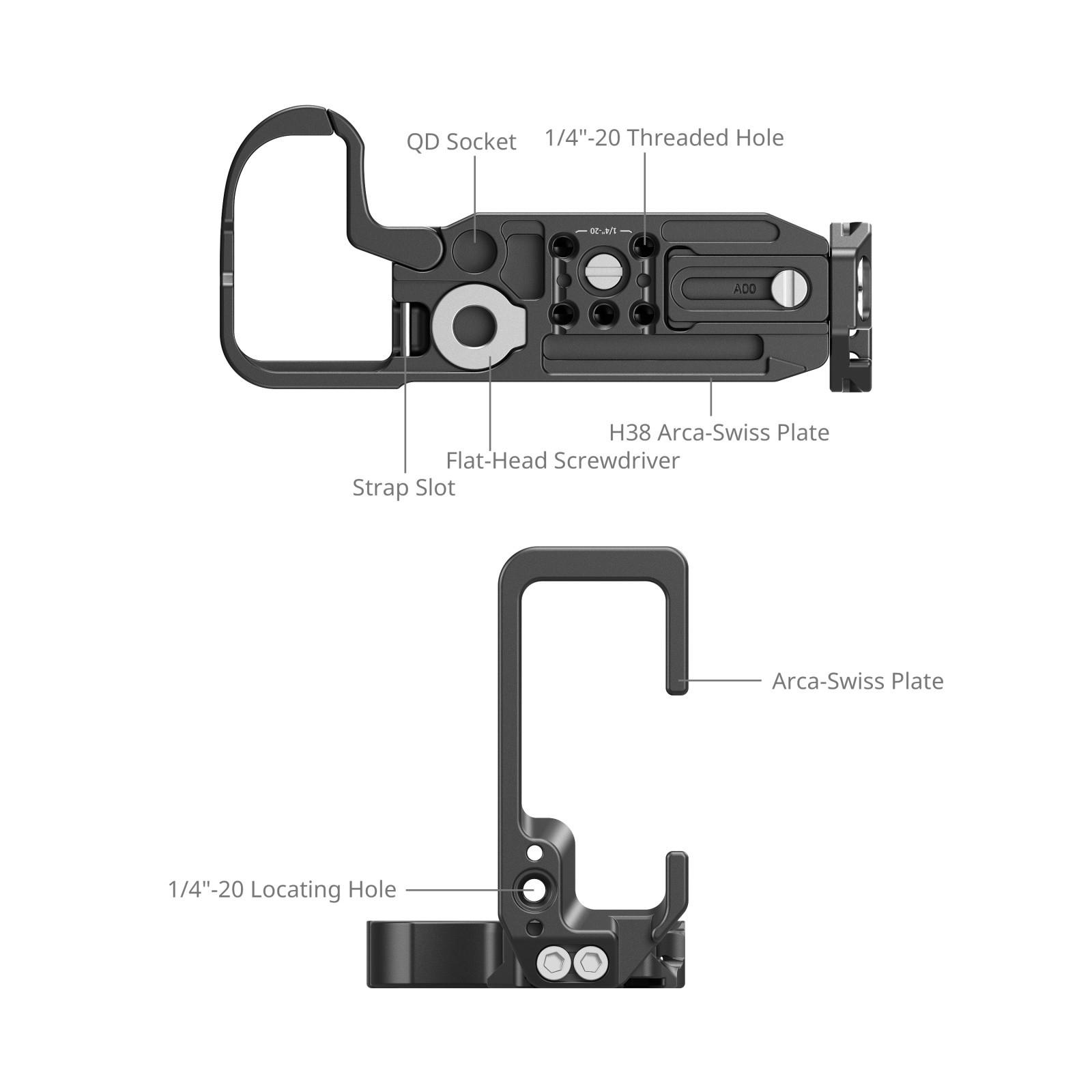

The side plate extends by 21.5mm / 0.8in for convenient cable management in portrait orientation. It features multiple expansion interfaces, such as 1/4"-20 threaded holes, 1/4"-20 locating holes, QD sockets, and strap slots, compatible with accessories like QD shoulder straps (ID 4118B), microphones (ID 3468), and tripods (ID 3989, 4353) for multi-scenario shooting. The plate also features shoulder strap slots, allowing the camera to hang lens-down for safety.

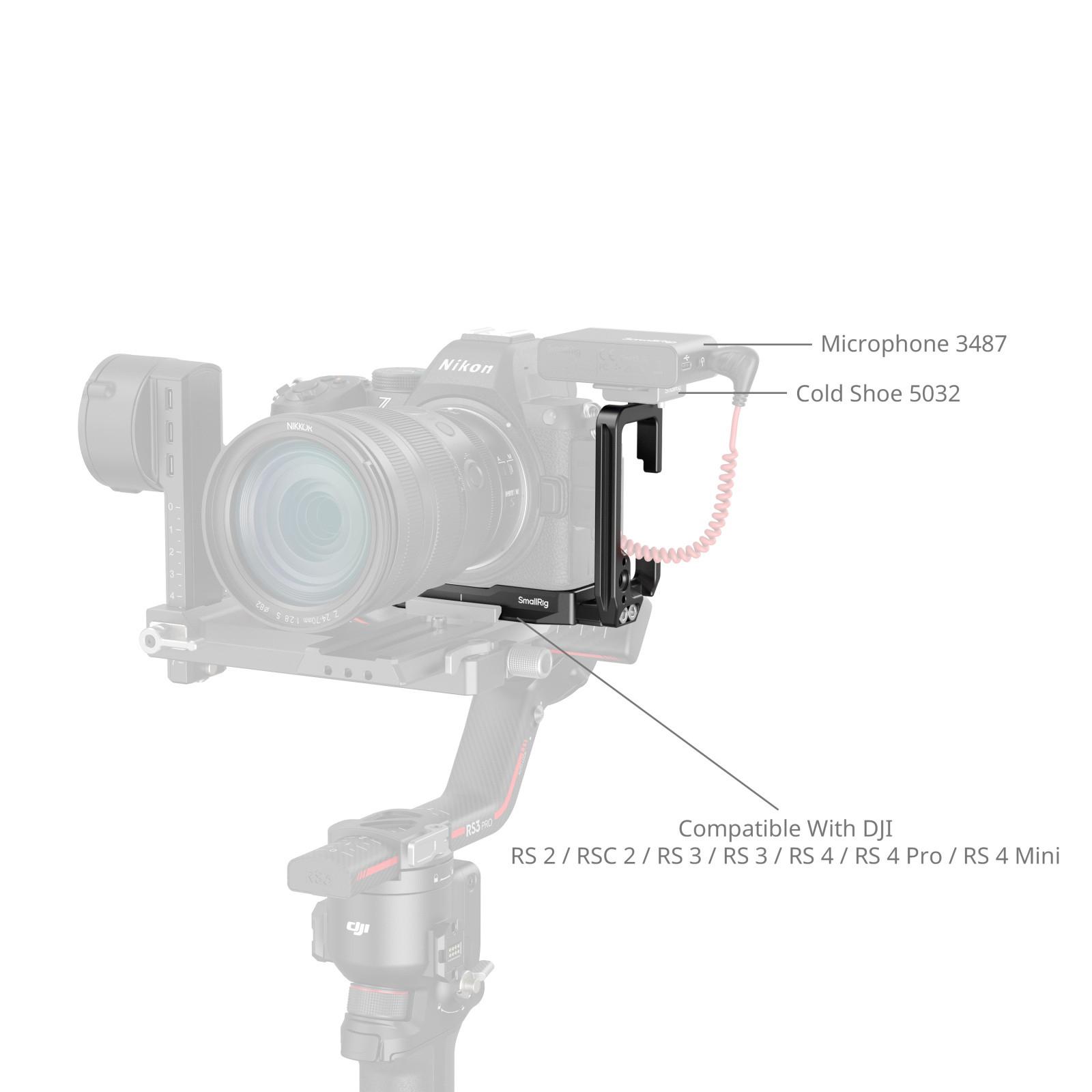

The base and side plates feature Arca-Swiss quick release plates, compatible with Arca-Swiss tripods and stabilizers like the DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 4, RS 4 Pro, and RS 4 Mini, enabling quick switching between stabilizers, tripods, and handheld setups. For extended power, it allows for attaching V-mount battery plates (ID 4505) and V-mount batteries (ID 4608). The base plate is equipped with a magnetic flat wrench for easy assembly and disassembly.

Work With

Nikon Z5II, Z7, Z6, Z7II, Z6II, Z5

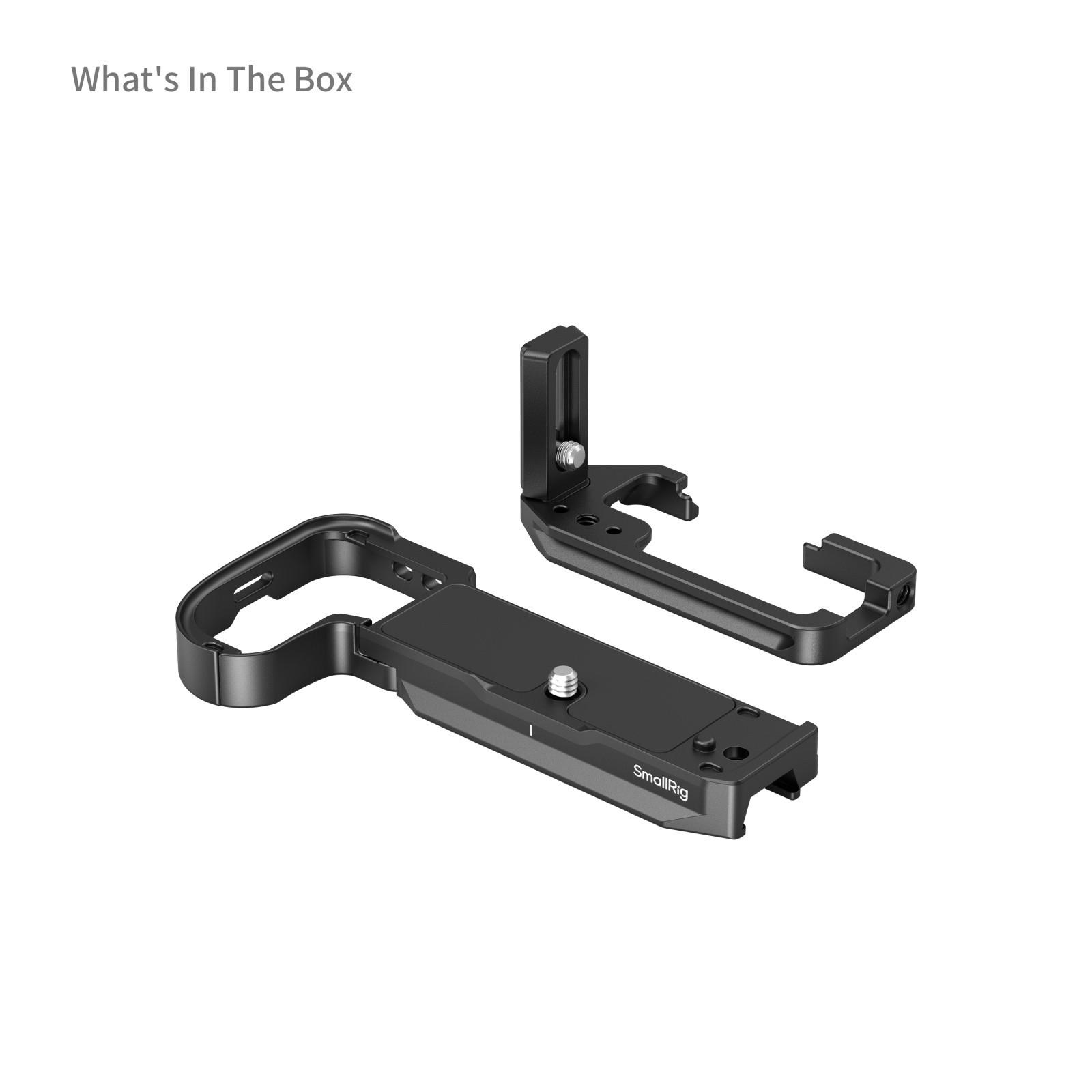

Packing List

L-Shaped Mount Plate x 1

Side Plate x 1

User Manual x 1

Technical Data

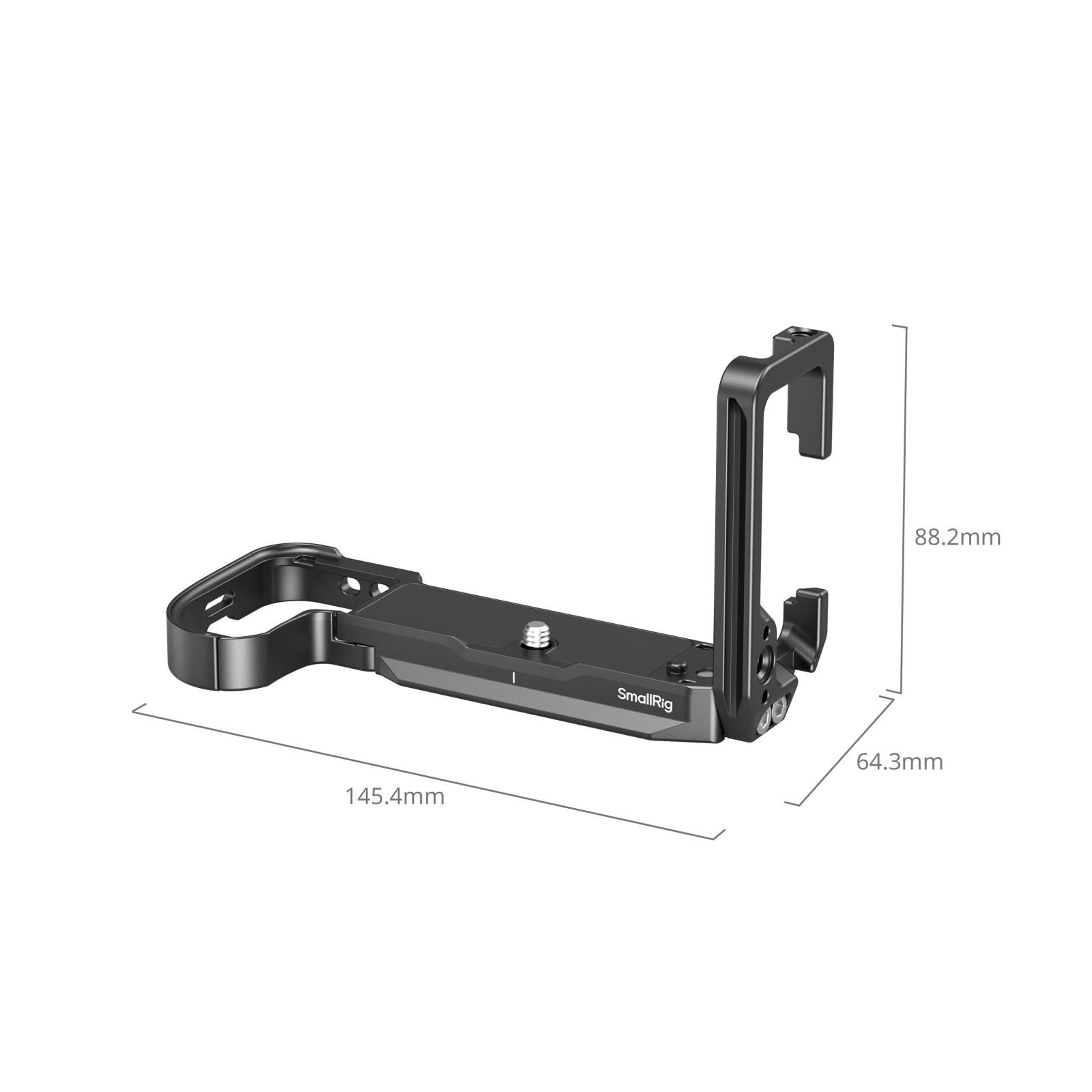

Product Dimensions: 145.4 × 64.3 × 88.2mm / 5.7 × 2.5 × 3.5in

Package Dimensions: 144.0 × 102.5 × 56.0mm / 5.7 × 4.0 × 2.2in

Product Weight: 120.0 ± 5.0g / 4.2 ± 0.2oz

Package Weight: 179.4 ± 5.0g / 6.3 ± 0.2oz

Material(s): Aluminum Alloy, Stainless Steel
