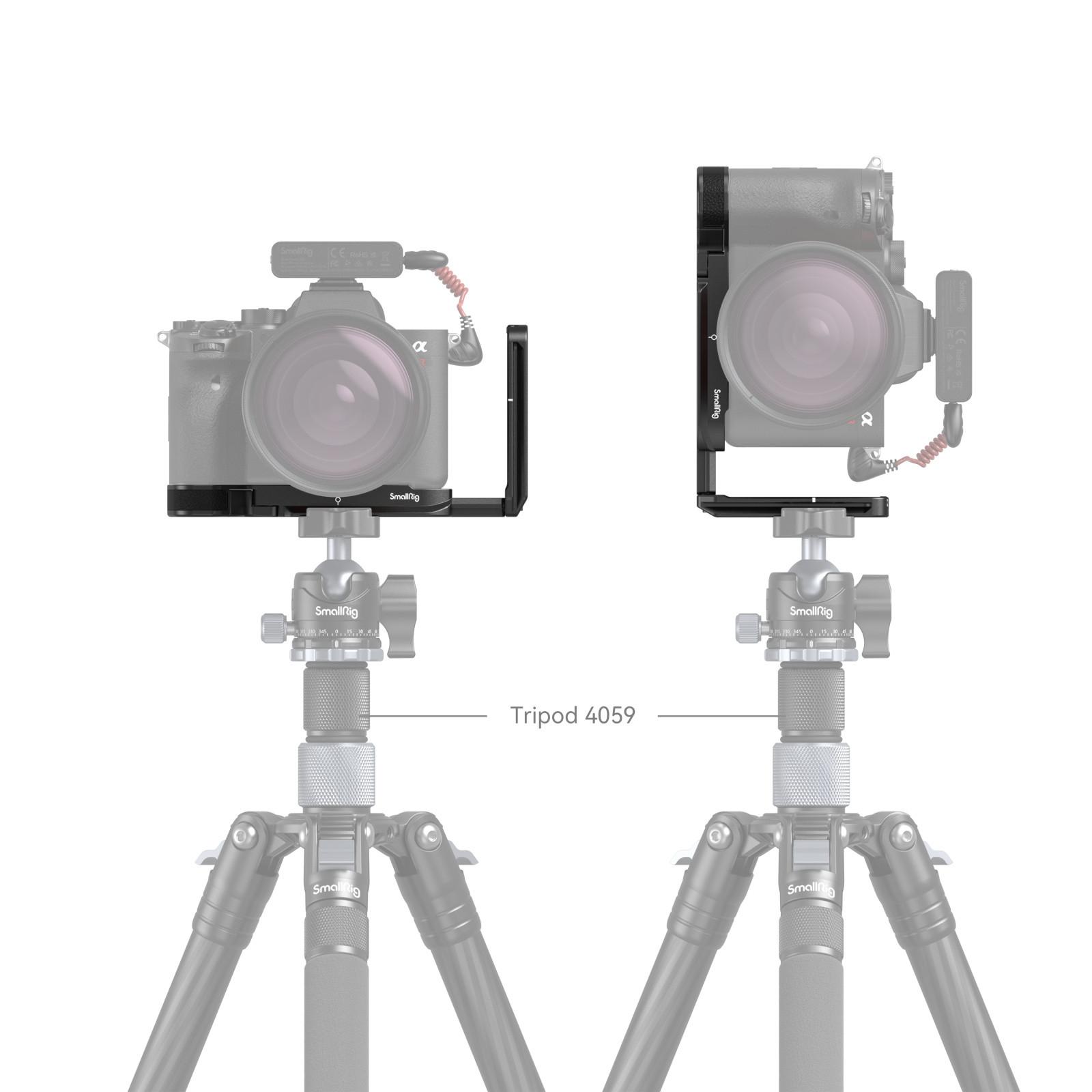

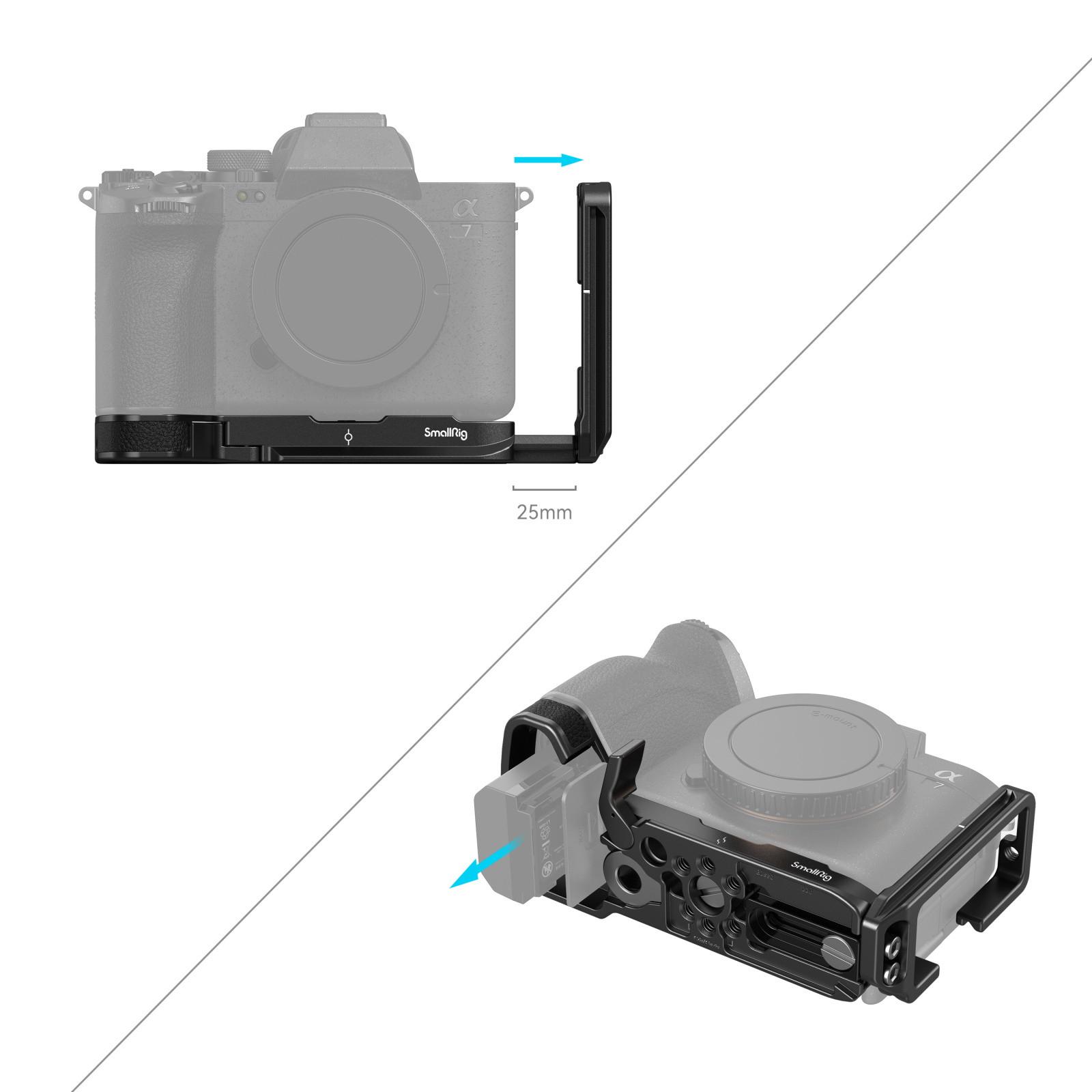

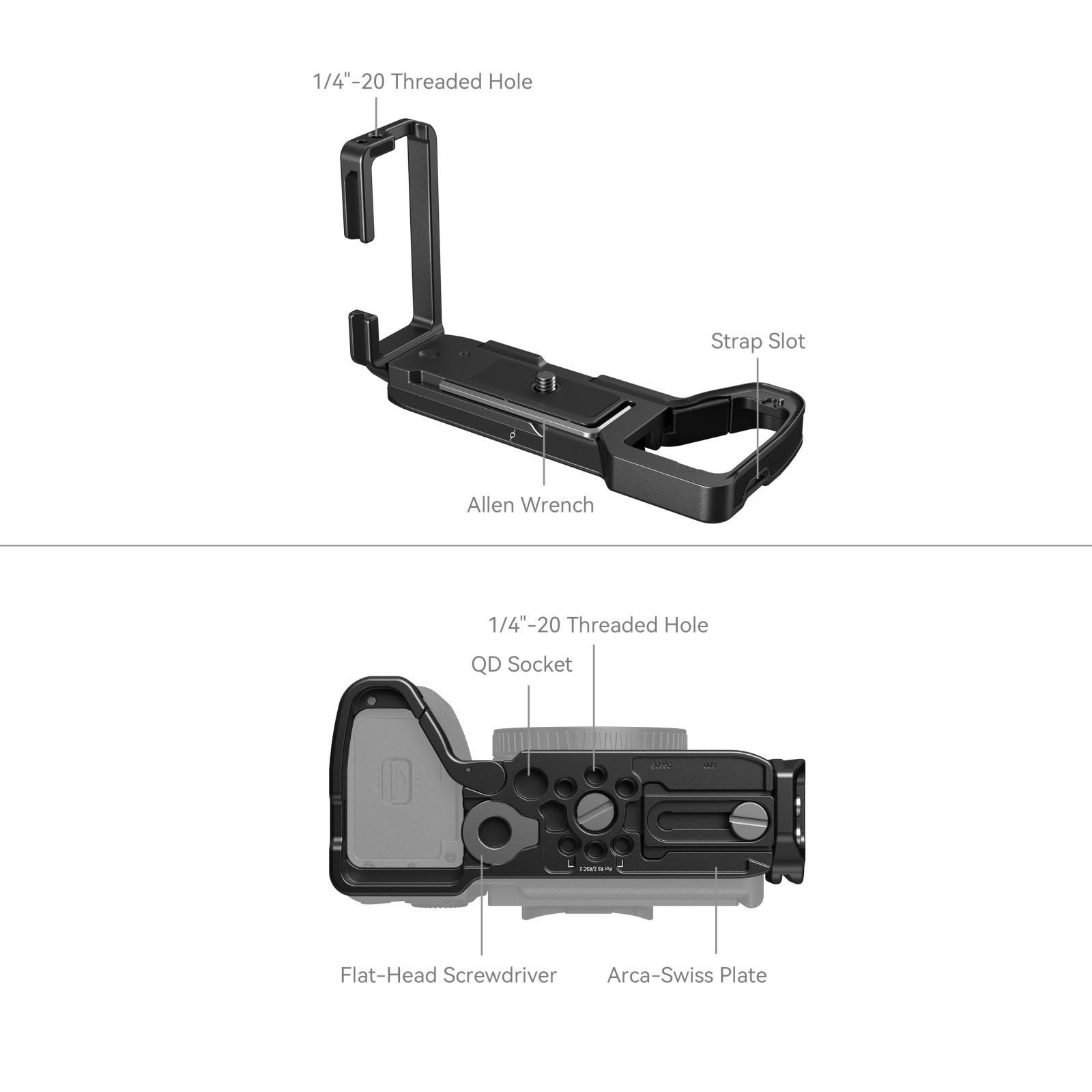

SmallRig L-Bracket for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 1 / Alpha 7R IV / Alpha 9 II 3660B is designed to facilitate a switch between horizontal and vertical modes and to improve grip experience. It locks the camera via one 1/4 "-20 screw at the bottom and one locating pin, with rub pads preventing scratches, and has a hinge arm at the battery door that fits the camera curve to enhance grip. Embedded select genuine leather in the baseplate integrates into the camera body. Baseplate built-in Arca Swiss quick-release plate at the bottom, compatible with Arca-type tripods or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals; Multiple 1/4"-20 threaded holes at the bottom support quick-release plates, tripods; Built-in wrist strap hole for use with Hand Strap 3848, also features a QD mount to attach the QD strap buckle, and a built-in flat-head screwdriver & hex spanner for easy installation and removal. Arca-Swiss quick-release side plate for quick switch between horizontal and vertical modes on tripod, as well as a 25mm stretchable side plate that allows cables through in vertical shooting; The side plate is extendable to allow attaching HDMI cables and adjusted back and forth to facilitate 180-degree opening and 120-degree rotation of the LCD screen of Alpha 7 IV / Alpha 7S III.

Work With

Sony Alpha 7R V

Sony Alpha7 IV

Sony Alpha 7S III

Sony Alpha 7R IV

Sony Alpha 1

Sony Alpha 9 II

Packing List

Baseplate x 1

Technical Data

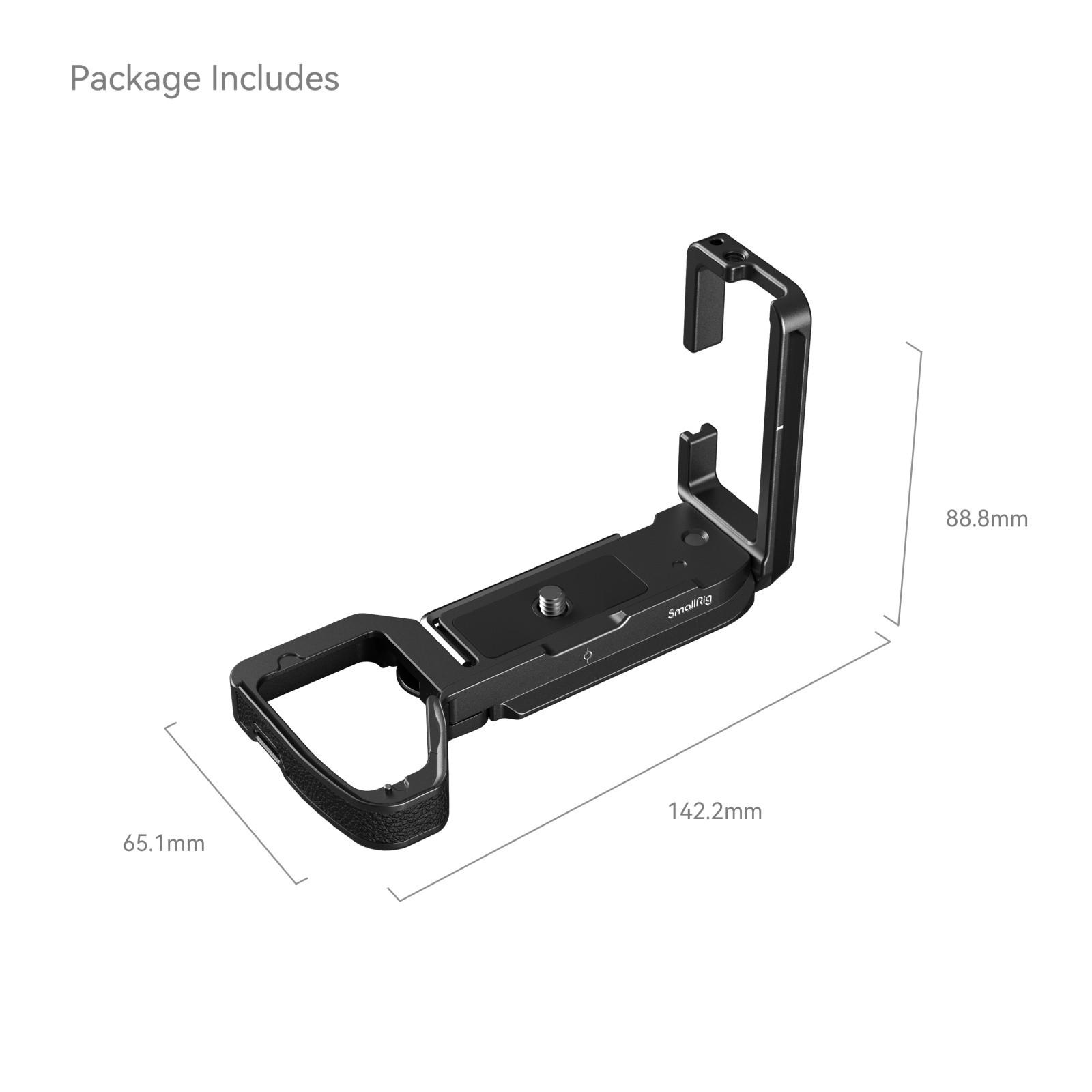

Product Dimensions: 142.2 x 65.1 x 88.8mm

Package Dimensions: 161.0 x 123.0 x 71.5mm

Product Weight: 135g±5g

Package Weight: 255g±5g

Material(s): Aluminum Alloy, Stainless Steel, Silicone, Genuine Leather
