SmallRig Basic Cage Kit for Sony Alpha 7R  V / Alpha 7 IV /  Alpha 7S III 3668B  is designed to facilitate low-angle shots and protect the camera while offering a wide range of accessory mounts. It includes a cage, an HDMI cable clamp, and a top handle. The top handle feels comfortable and enables easy carrying at the low-angle shot. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails and QD socket  support monitor mount 2294, microphones, LED lights, monitor mount 2903B, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4"-20 screw and two locating pins, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow for attaching hand straps. The cage comes with a built-in magnetic flat-head screwdriver & hex spanner for easy disassembly and assembly.

Note：

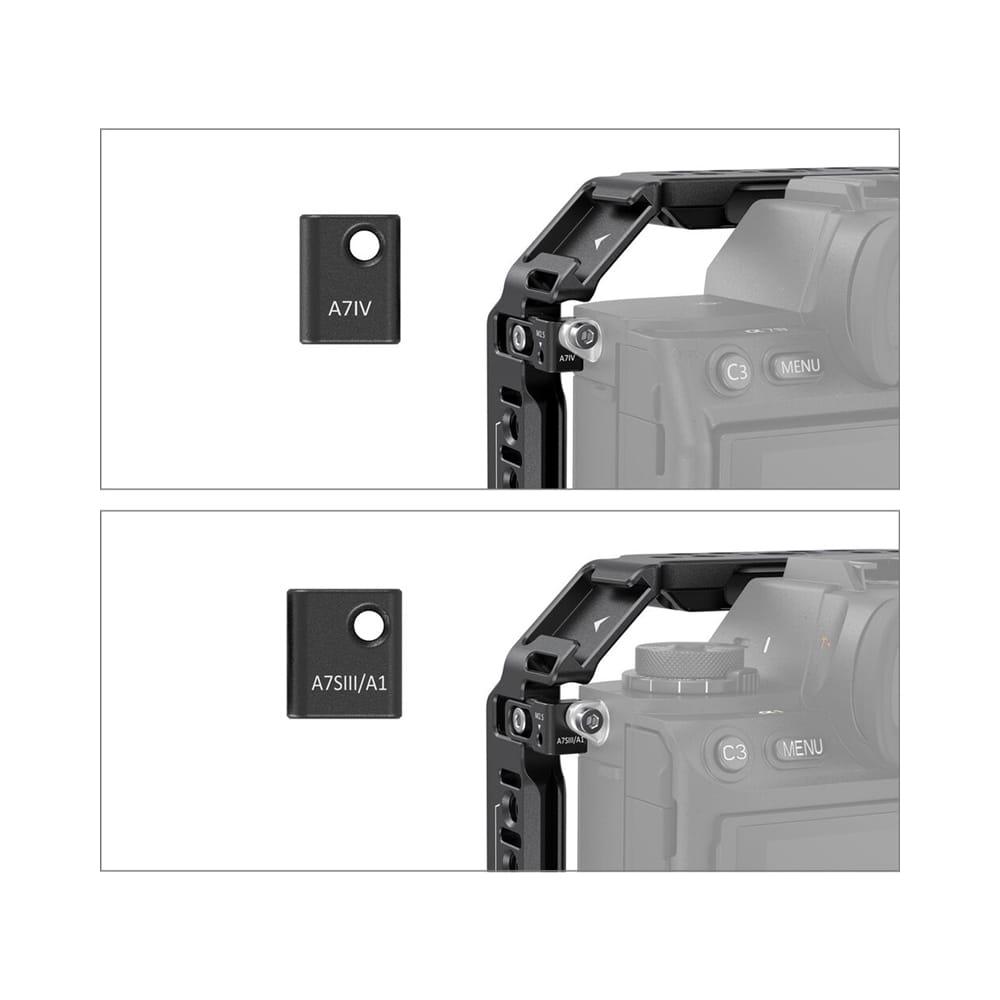

1. After fixing the 1/4"-20 screw at the bottom of the cage, remove the anti-deflection pin from the staging hole in the battery compartment position and fix it to the corresponding position.

2. To use the side lock adapter of the cage, please remove the split ring on the left side of the camera first.

3. HDMI Cable Clamp interferes with the synchro terminal interface when used on the Alpha 7R V camera.

Work With

Sony Alpha 7R V

Sony Alpha 7 IV

Sony Alpha 7S III

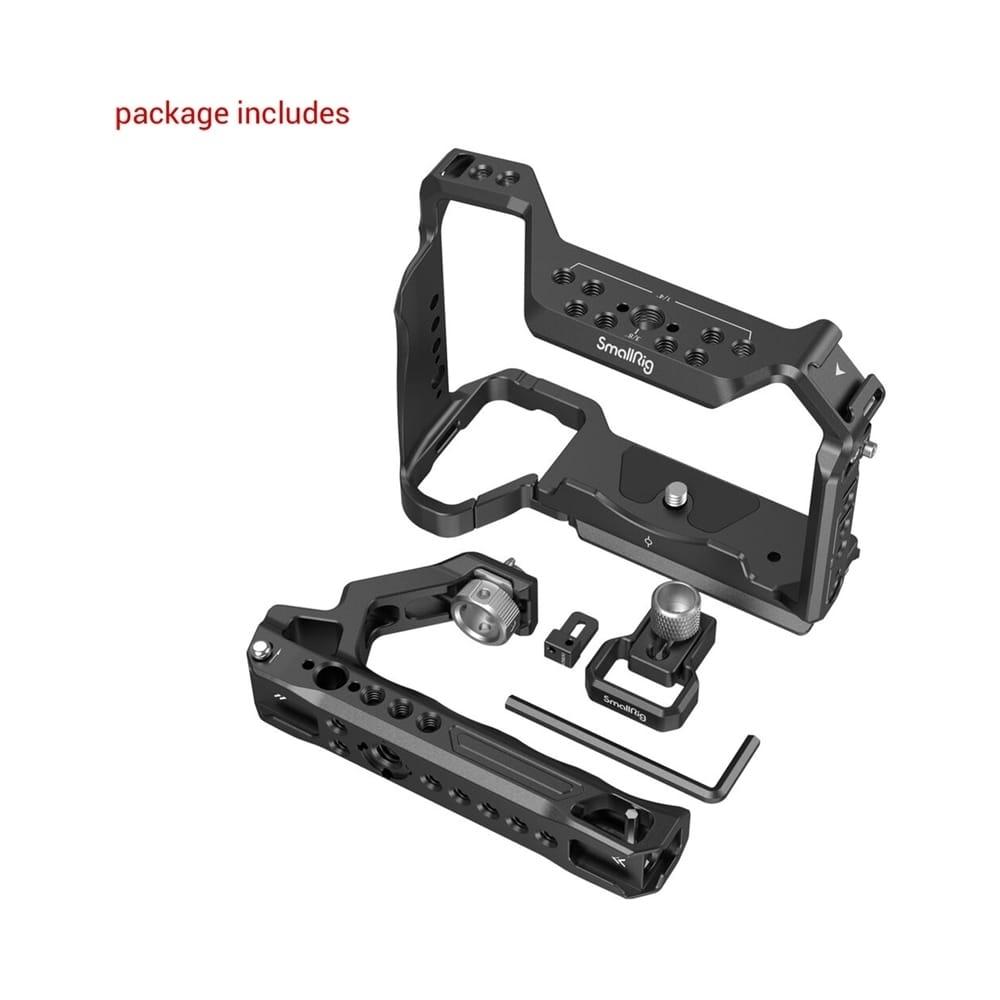

Packing List

1 x Cage

1 x HDMI Cable Clamp 3000

1 x ARRI Locating Handle 2165C

1 x hex spanner

Technical Data

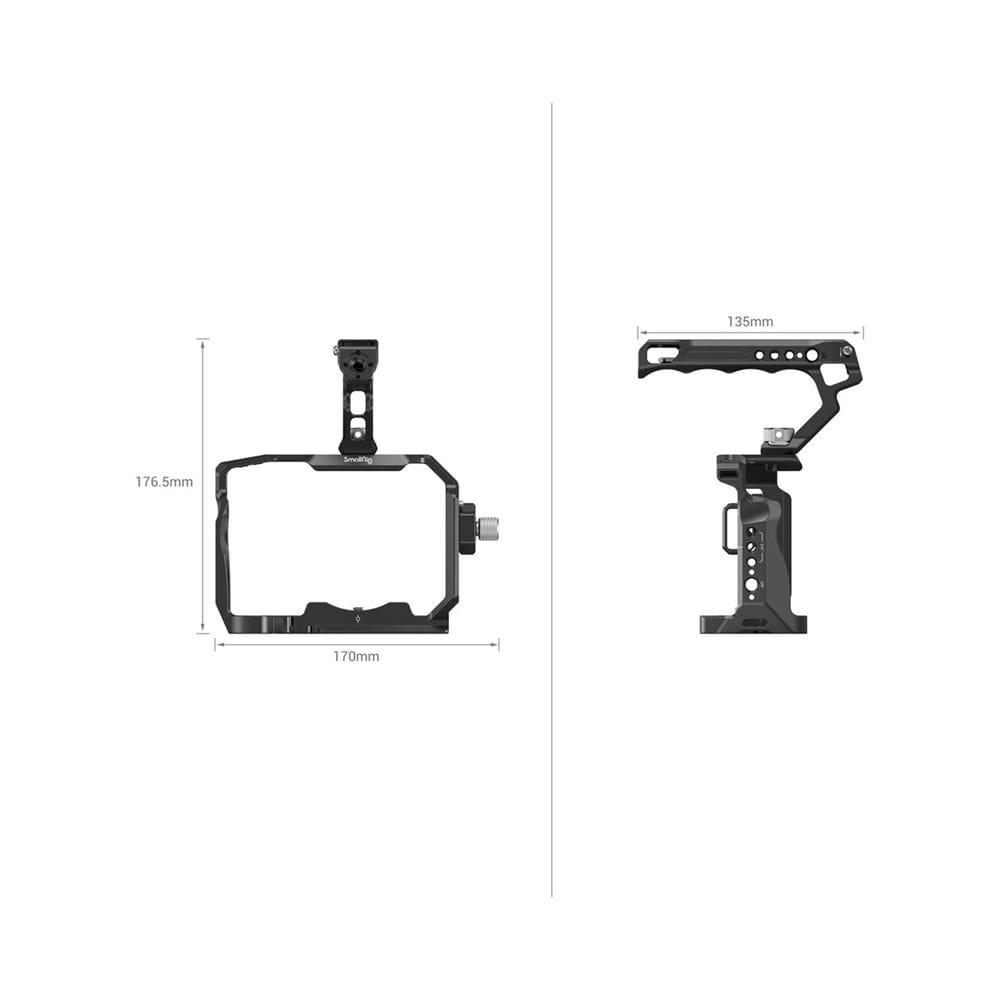

Product Dimensions: 170 x 176.5 x 135mm

Package Dimensions: 165 x 155 x 85mm

Product Weight: 361g±5g

Package Weight: 474g±5g

Material(s): Aluminum Alloy, Stainless Steel, Silicone
