Wide measurement range of Color Temperature (1,600 to 40,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)

Conforms to Class A of JIS C 1609-1: 2006 as Illuminance meter class

Expanded Color Rendering Properties (CRI, SSI, TLCI, TLMF, TM-30-18)

Extended Color Control Parameters (Hue/Saturation, CIE 1931 x, y chromaticity coordinate)

Lighting Filter for RoscoⒸ and LEEⒸ, Camera Filter for Kodak WrattenⒸ , LEEⒸ and FujiⒸ, and LB/CC Index

Convenient Display Modes for photo/cinematography such as Multiple Lights and White Balance Correction

Up to 99 data measurements can be stored in memoryUser-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function

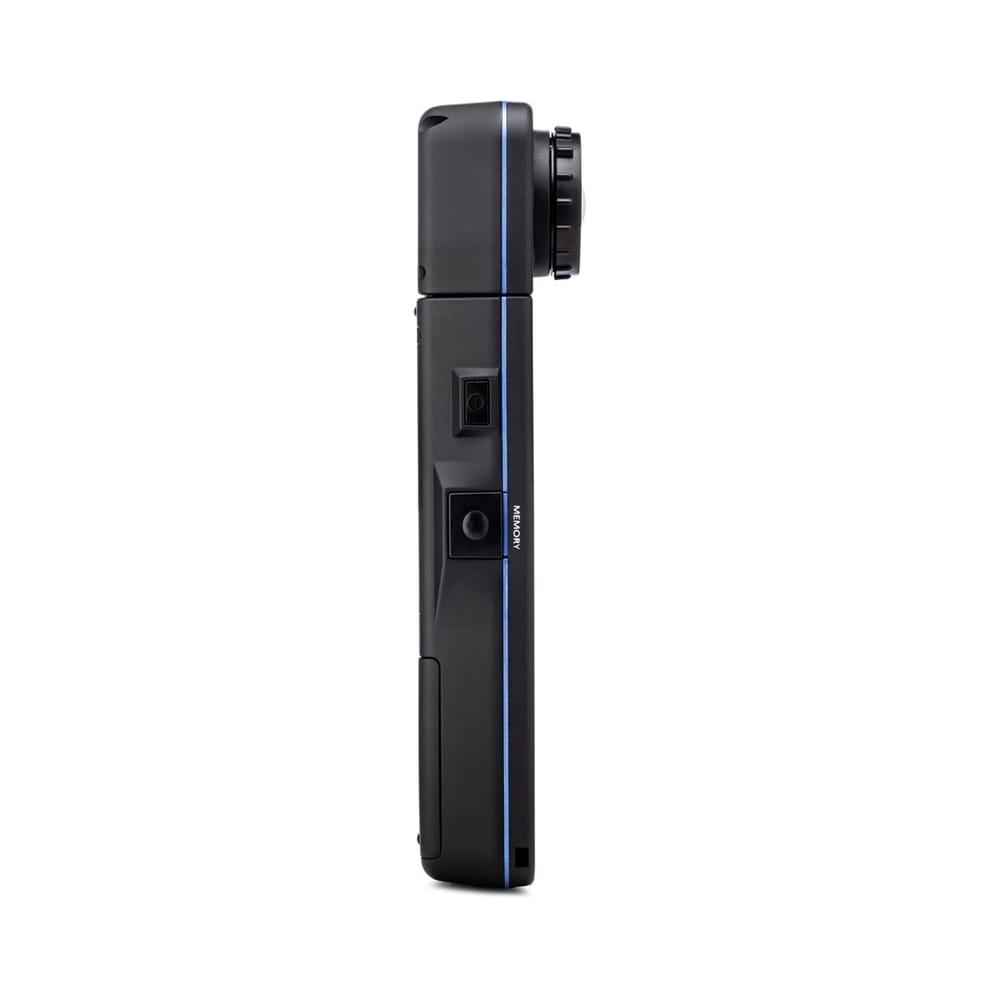

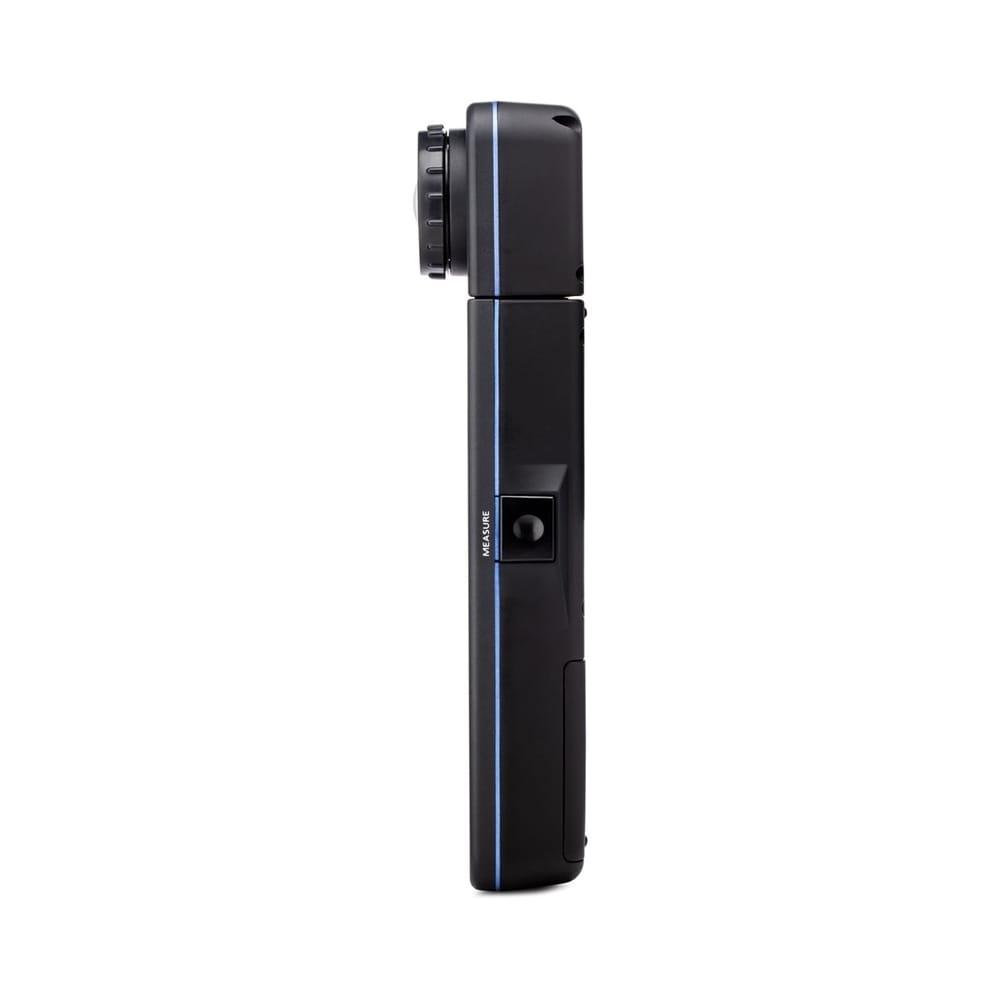

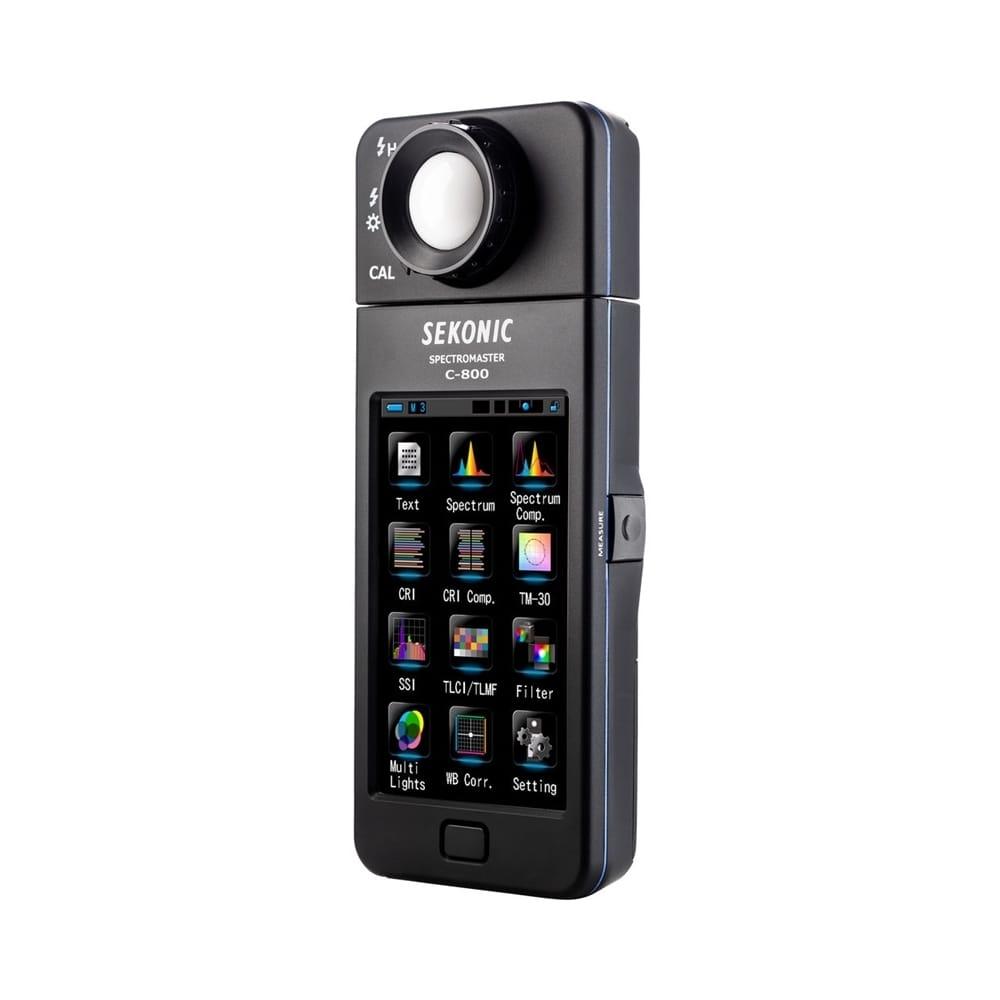

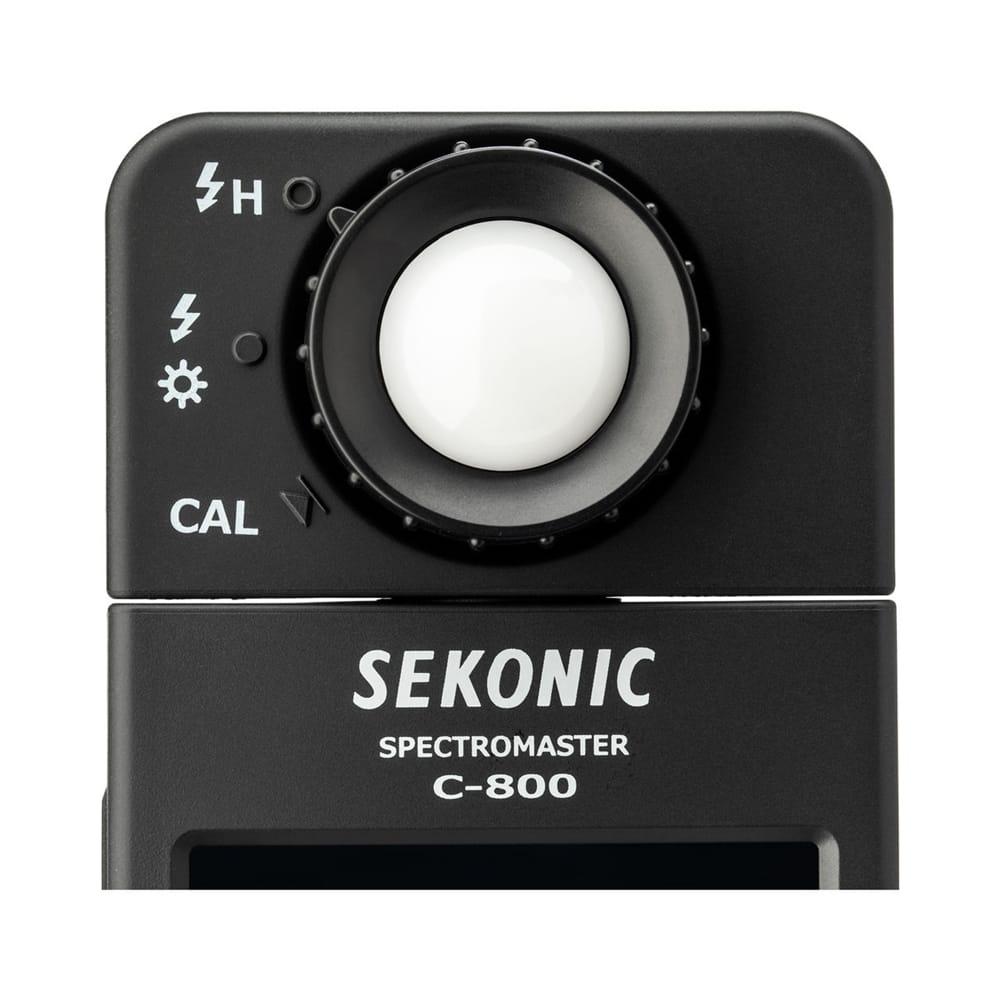

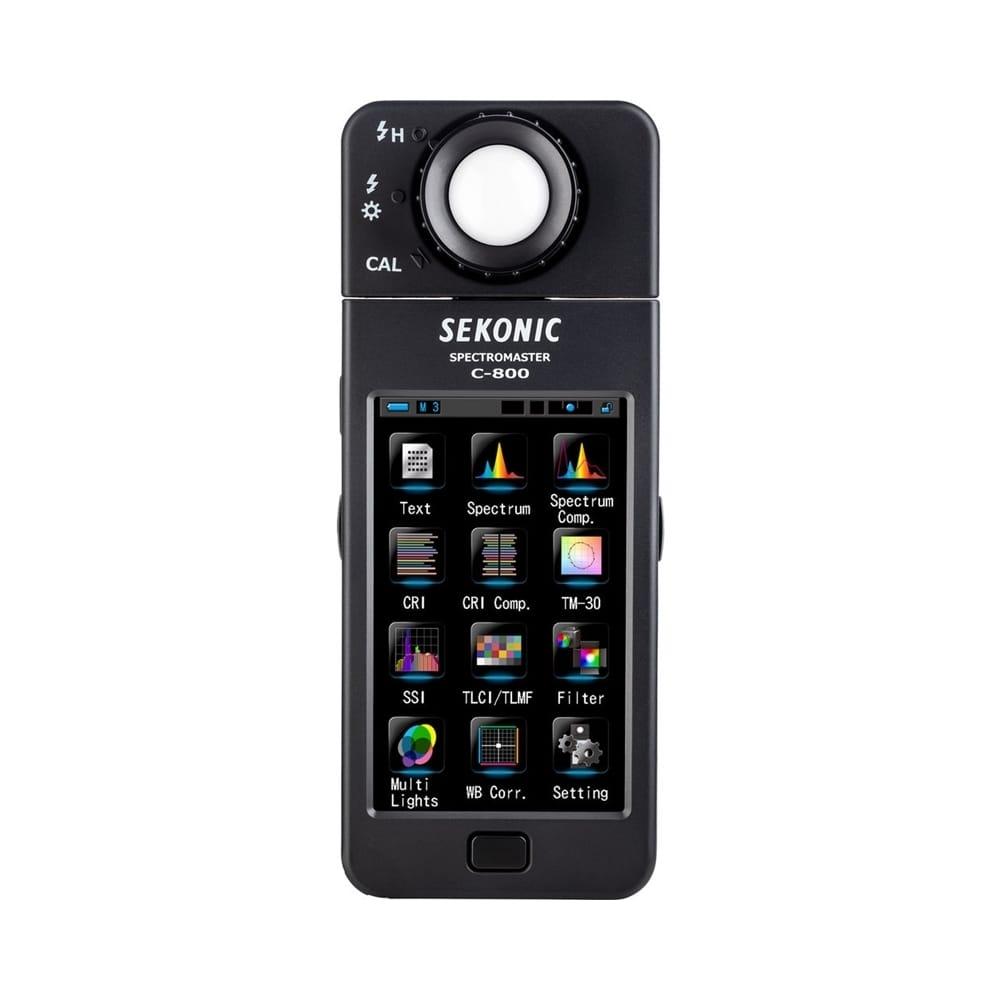

The Sekonic Spectrometer C-800 is a full-spectrum color meter that can precisely measure every kind of light including LED HMI Fluorescent and electronic flash. Its high-resolution measuring system featuring CMOS sensor enables capturing spikes in light source output to provide unsurpassed color measurement accuracy. Different than any spectrometer today the C-800's direct display of values for major light source and lens filter brands simplifies correcting and modifying light color for cleaner recording and faster post process.

The New C-800 has CRI, TLCI, TLMF, TM-30-18, and CRI. Currently, the only meter to have SSI (Spectral Similarity Index) developed by the Academy of Motion Picture Arts and Science and Technology Council. Now you can compare and score lights based upon their spectral similarity.

With the C-800 matching the new generation of RGB, RGBW and RGBAW LED's has never been easier. The meter will give you any lights (x, y) values to measure precise chromaticity coordinates, and you can measure Hue and Saturation to get the best match from any RGB LEDs. Now matching your LEDs to any available light source, gelled or not, can now be done in seconds.

The enhancements to the new C-800 show the commitment and importance of end-user input and compatibility with new and growing trends in the color control industry. The new Spectrometer C-800 will give filmmakers and photographers increased confidence with lights to render true to life skin tones and realistic color, as well as match lights better than any other meter on the market. The C-800 will empower you to light better.



Family:

C-800

Sensor:

CMOS linear image sensor

Measuring System:

Spectro Meter
Incident light: Swivel head

Measuring Range and Modes:



Measuring Modes (Ambient Light):

Ambient light

Measuring Modes (Flash light):

Cordless, Cord-in (PC)

Measuring Range at ISO100 (Ambient Incident Light):

1 lx to 200,000 lx *
0.1 fc to 18,600 fc **

*Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”

**Models sold in Japan do not display "fc (fc*s)" due to legal restrictions.

Measuring Range (Flash Incident Light):

20 lx・s to 20,500lx・s
1.86 fc・s to 1,900 fc・s

Spectral Wavelength Range:

380nm to 780nm

Color Measuring Mode (Display Mode):

Text mode, Spectrum mode, Spectrum comparison mode, CRI mode, CRI comparison mode, TM-30 mode, SSI mode, TLCI/TLMF modem Filter mode (lighting and camera filter), Multi Lights mode, White Balance Correction mode

Color Measuring Range (Ambient Light):

1,600 to 40,000K

Color Measuring Range (Flash Light):

2,500 to 40,000K

Color Measuring Units (Color Parameters):

Correlated color temperature (CCT), Deviation (Δ uv), x, y, Hue, Saturation,

Color Measuring Units (Color Rendering Properties):

CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units (Photo/Cinematography):

LB/CC filter number (camera/lighting filter), LB/CC index, CC number,

Target Color Temperature Range:

2,500K to 10,000K

Shutter Speeds Range (Ambient Light):

Auto - Max.: 15 sec., Min.: 0.5 sec.

Shutter Speeds Range (Flash Light):

1s to 1/500s (plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400)

Memory:

Yes (99 times)

Contrast/Comparison Function:

Yes

Custom Settings:

Yes (12 custom settings)

Physical:



Tripod Socket:

Yes

Operating Temperature:

-10 deg. C to 40 deg. C

Storage Temperature:

-10 deg. C to 60 deg. C

Power Source:

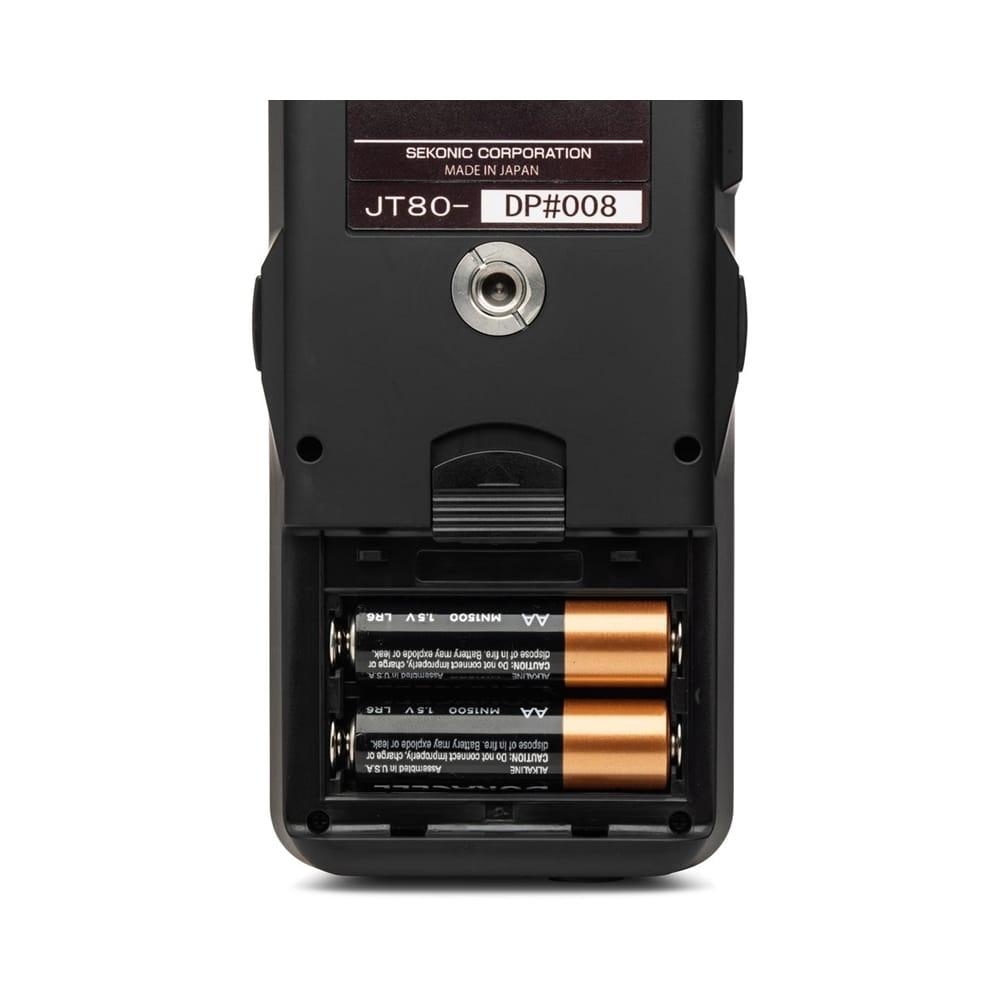

1.5V x 2 (AA battery), USB bus-power

LCD:

4.3" color dot matrix touch panel LCD

Product Weight (lb):

0.51

Product Weight (kg):

0.23

Product Height (in):

1.06

Product Length (in):

7.2

Product Width (in):

2.87

Product Height (cm):

2.7

Product Length (cm):

18.3

Product Width (cm):

7.3

*1: "Under" is displayed when the illuminance is less than 5 lx (0.46 fc) or the Tcp is less than 1,600 K, and "Over" is displayed when the illuminance is over 10,000 lx (929 fc) or the Tcp is over 40,000 K.

*2: Tcp is Température de Couleur Proximale (Correlated Color Temperature).

C-800 Series Utility Software (download from www.sekonic.com) offers easy settings in the meter and analysis of memorized data in a computer. (Memory title can be edited, Memorized value can be saved back and forth between computer and meter)
