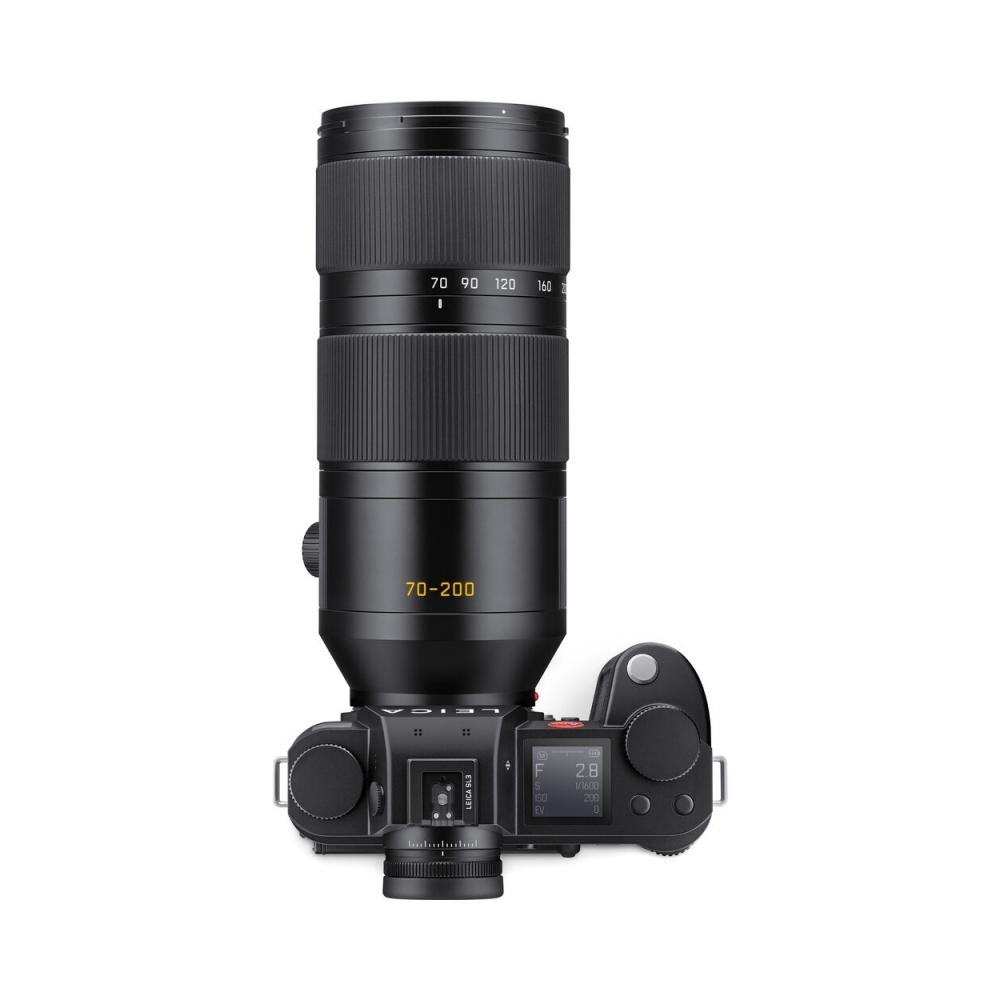

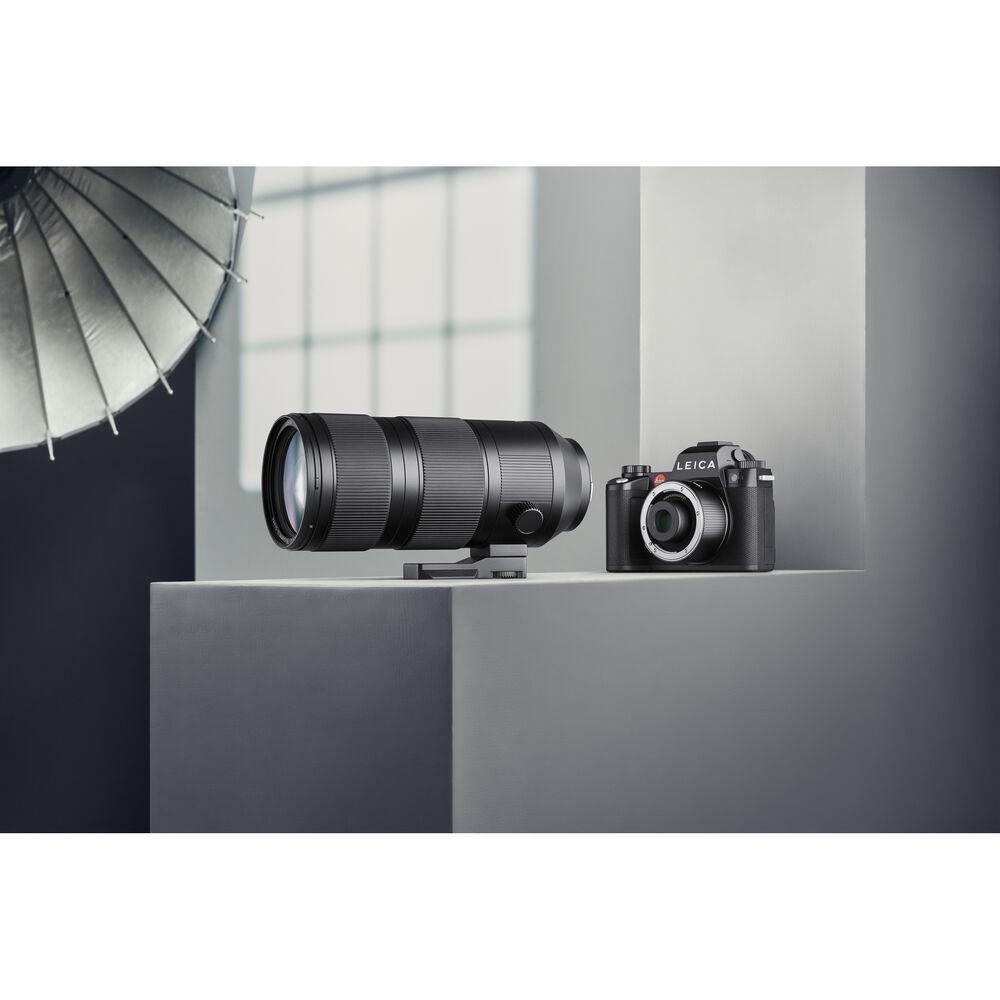

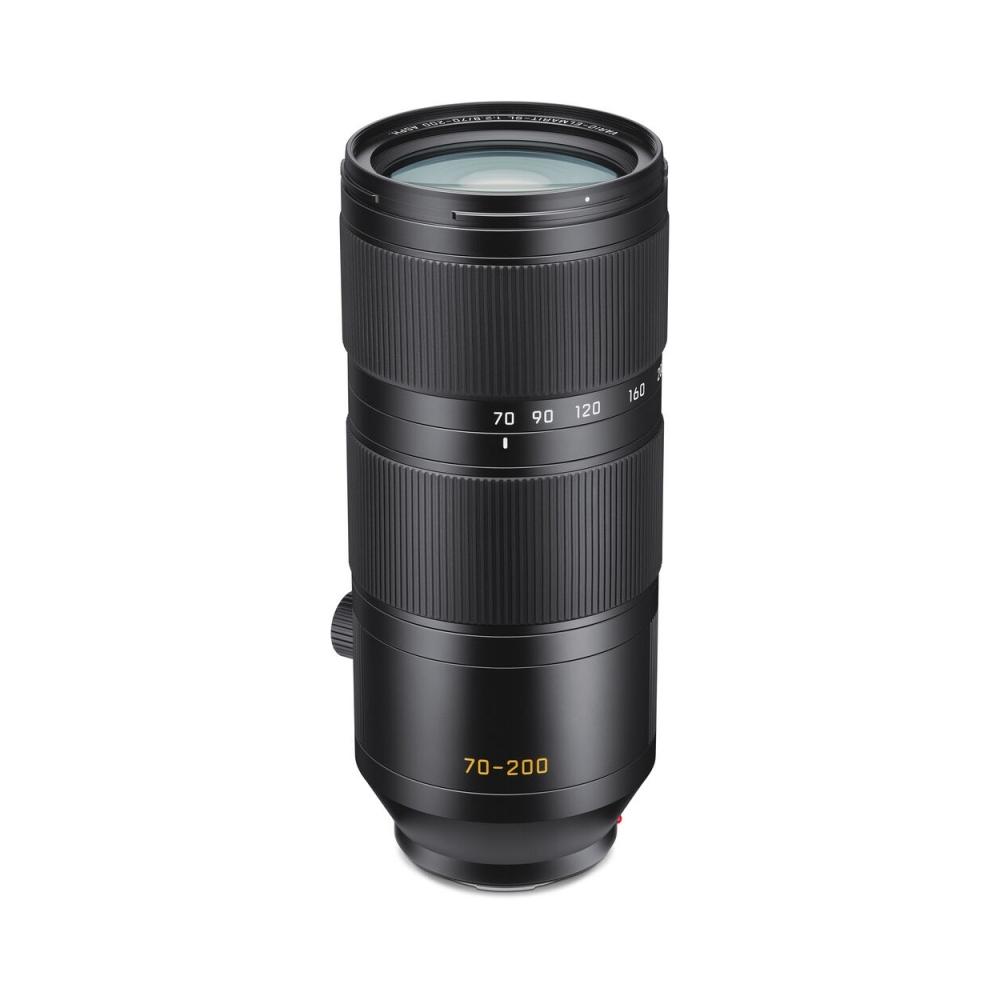

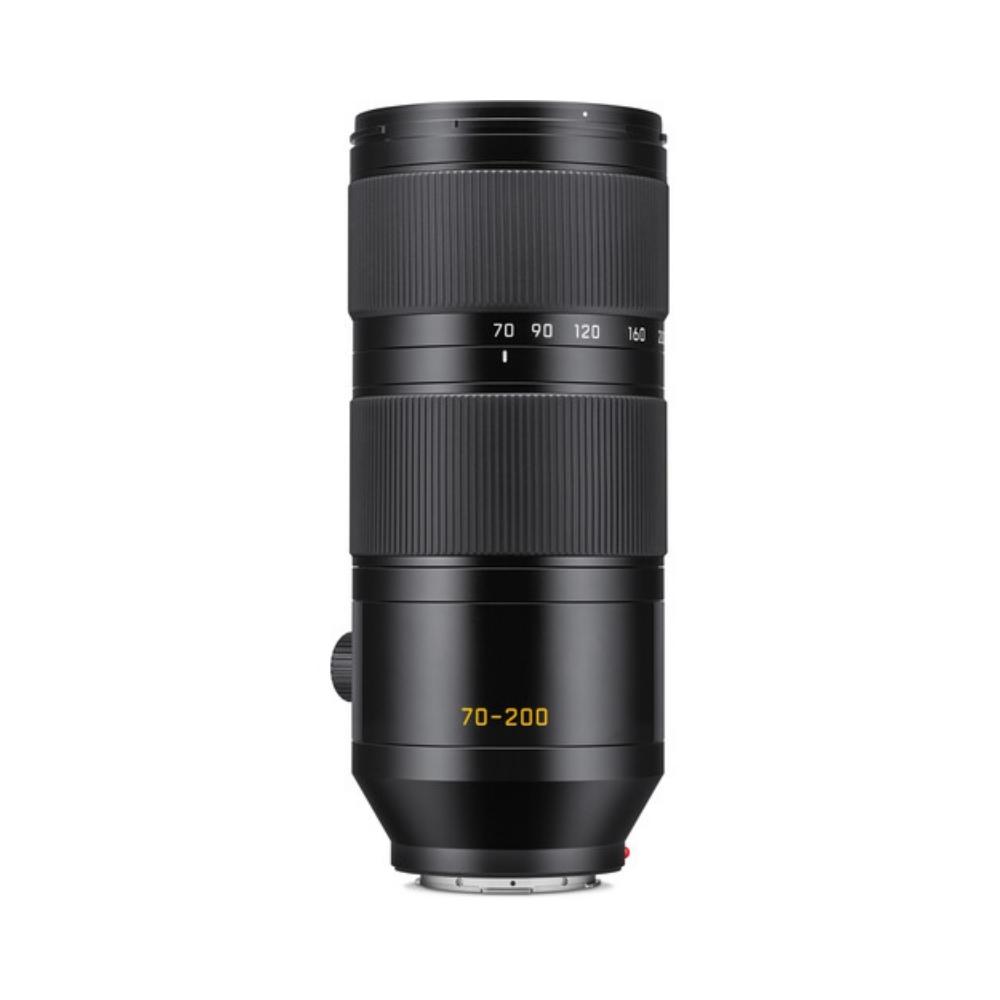

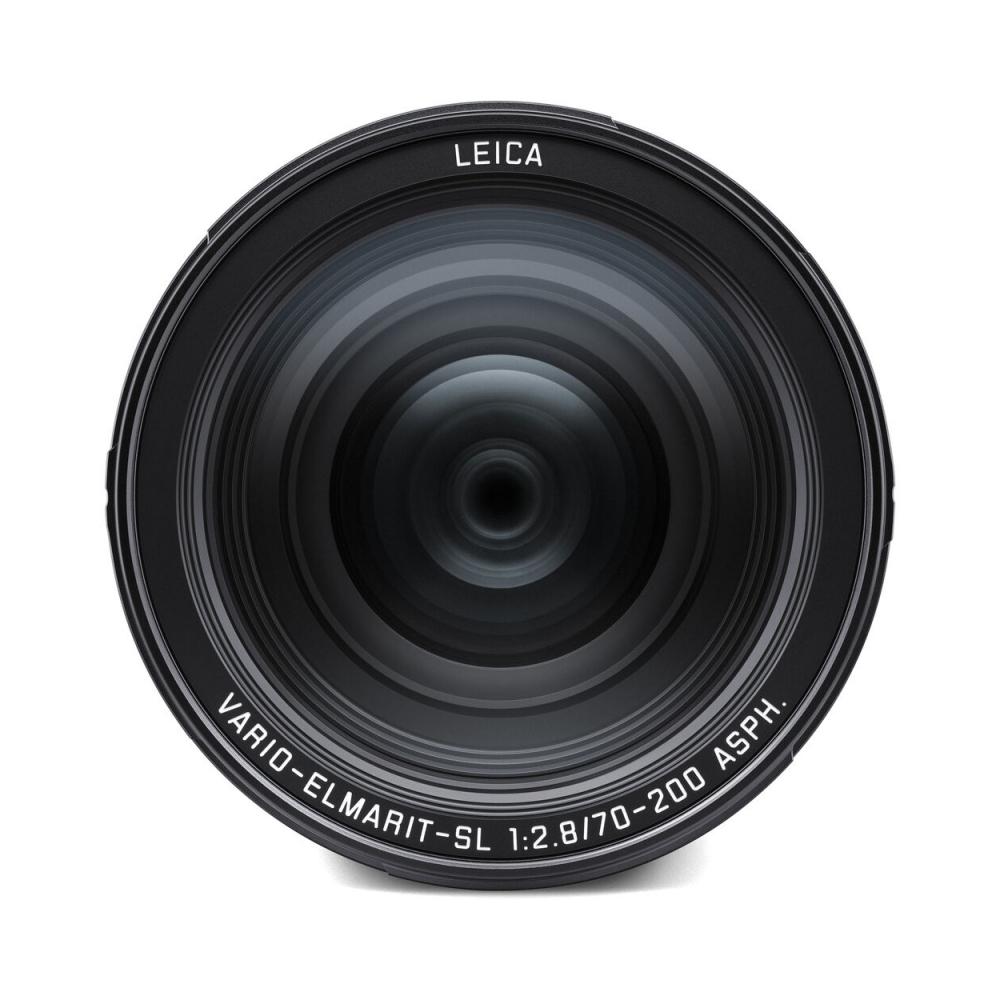

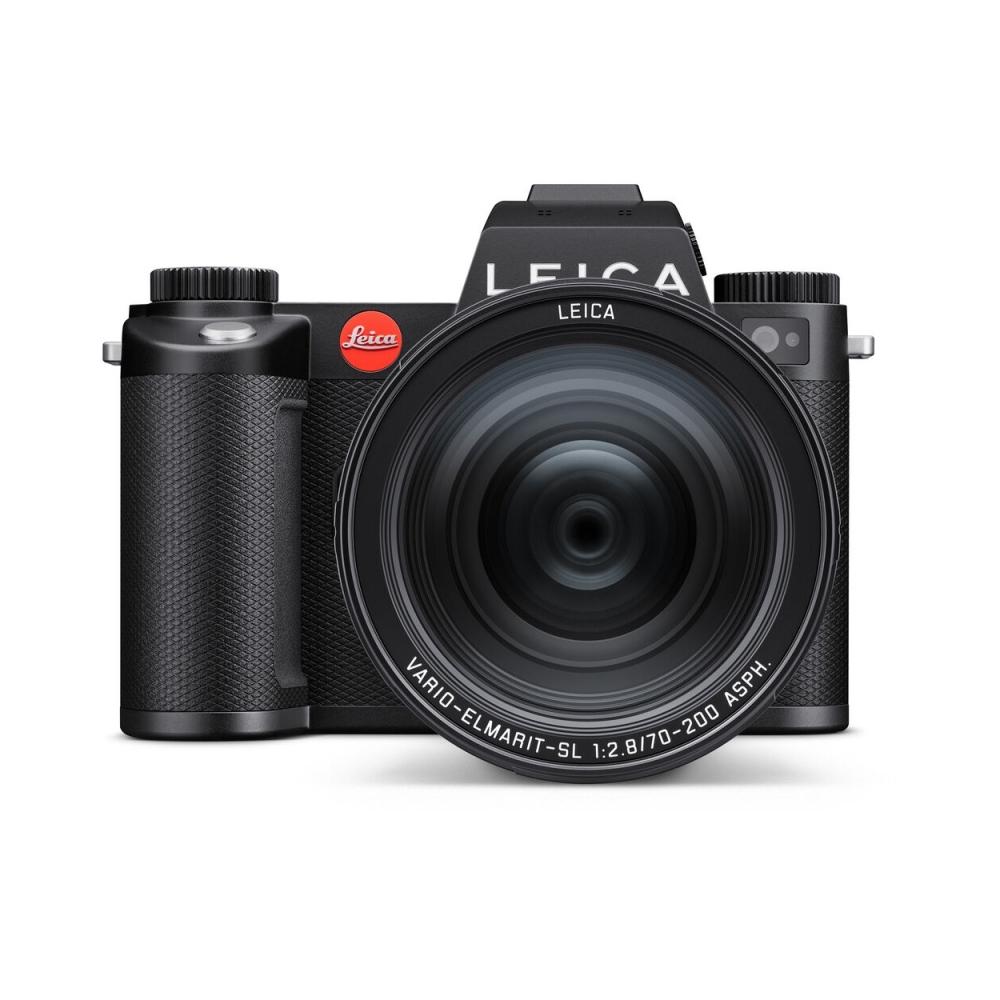

The fast zoom lens for the SL-System makes it possible to capture diverse and demanding scenes in remarkable quality. With its exceptional optics, durable materials, and compact design, the Leica Vario-Elmarit-SL 70-200 f/2.8 ASPH. offers versatile photography and videography capabilities, even in low light, thanks to its consistently wide aperture.
70-200mm telephoto zoom lens
Impressive portraits as well as event, sports and nature photography
Aperture f/2.8
Maintains consistently high speed throughout the entire zoom range
Robust and solid
All-metal housing made of aluminium, dust and splash-proof
Blur-free images
Thanks to excellent optical stabilisation
Versatile and flexible
The classic telephoto zoom focal length is ideal for portrait photography. It effectively isolates the subject from the background, allows for precise focus control and offers maximum flexibility in capturing image details. The extensive zoom range, large aperture, and optical stabiliser handle the challenges of sports, nature, and event photography effortlessly, allowing you to remain composed even in fast-paced situations.
High performance trinity set
Together with the Super-Vario-Elmarit-SL 14-24 f/2.8 ASPH. and the Vario-Elmarit-SL 24-70 f/2.8 ASPH., the Vario-Elmarit-SL 70-200 f/2.8 ASPH. completes the high-performance trinity set with L-Mount bayonets. The set ensures the Leica SL-System is perfectly prepared for any shooting scenario, spanning the entire focal length range from 14mm ultra-wide to 200mm telephoto, all with a consistent f/2.8 aperture.
Constructional Details
The 20 lenses are arranged into 15 groups, including three with aspherical surfaces, to deliver maximum imaging performance. All lenses are crafted from high-quality glass, with seven featuring low refractive index and exceptionally low dispersion and high abnormal partial dispersion, ensuring razor-sharp, high-contrast and true-to-life colours. The lens's various focal lengths are achieved through reliable internal focusing, maintaining a constant, compact length throughout the entire zoom range.
Finest details from afar
The Leica Extenders L 1.4x and L 2.0x, both compact in size, easily fit into any camera bag. They bring you closer to the action and reveal distant details that become visible only when zoomed in. Use the Leica Extender L 1.4x to extend the range of the Vario-Elmarit-SL 70-200 f/2.8 ASPH. quickly and easily to 280mm at any time and even up to 400mm with the Leica Extender L 2.0x.
| Order No. |
11096 |
View angle (diagonal/horizontal/vertical)
Full-frame (24 x 36 mm) |
70 mm: 33,4°/28,0°/18,9° | 200 mm: 12,7°/10,6°/7,1 ° |
| Lens system |
|
| Number of lenses/assemblies |
20/15 |
| Position of the entrance pupil before the bayonet |
70 mm: 121,3 mm | 200 mm: -11,5 mm |
| Focus range |
70 mm: 0,65 m to ∞ | 200 mm: 1,00 m to ∞ |
| |
|
| Focusing |
|
| Setting |
Choose automatic (Autofocus) or manual mode on the camera |
| Smallest object field |
Full-frame: 70 mm: 169 mm x 254 mm | 200 mm: 124 mm x 185 mm |
| Largest scale |
70 mm: 1:7,0 | 200 mm: 1:5,1 |
| |
|
| Aperture |
|
| Setting/Function |
Electronically controlled aperture, setting on the camera, half or third values can also be set |
| Smallest aperture |
22 |
| |
|
| Bayonet |
Leica L bayonet fitting with contact strip |
| Firmware |
Lens firmware can be updated via the camera |
| Coating |
Hydrophobe Aqua-Dura® coating on external lenses |
| Material |
Magnesium and aluminum full-metal housing, black anodized, dust and splash water protected |
| Housing |
The lens comes equipped with a tripod clamp and detachable tripod shoe.
Only this specific tripod clamp must be used for shoots with tripod to avoid damage
to the bayonet of the camera. |
| Filter thread |
E82 |

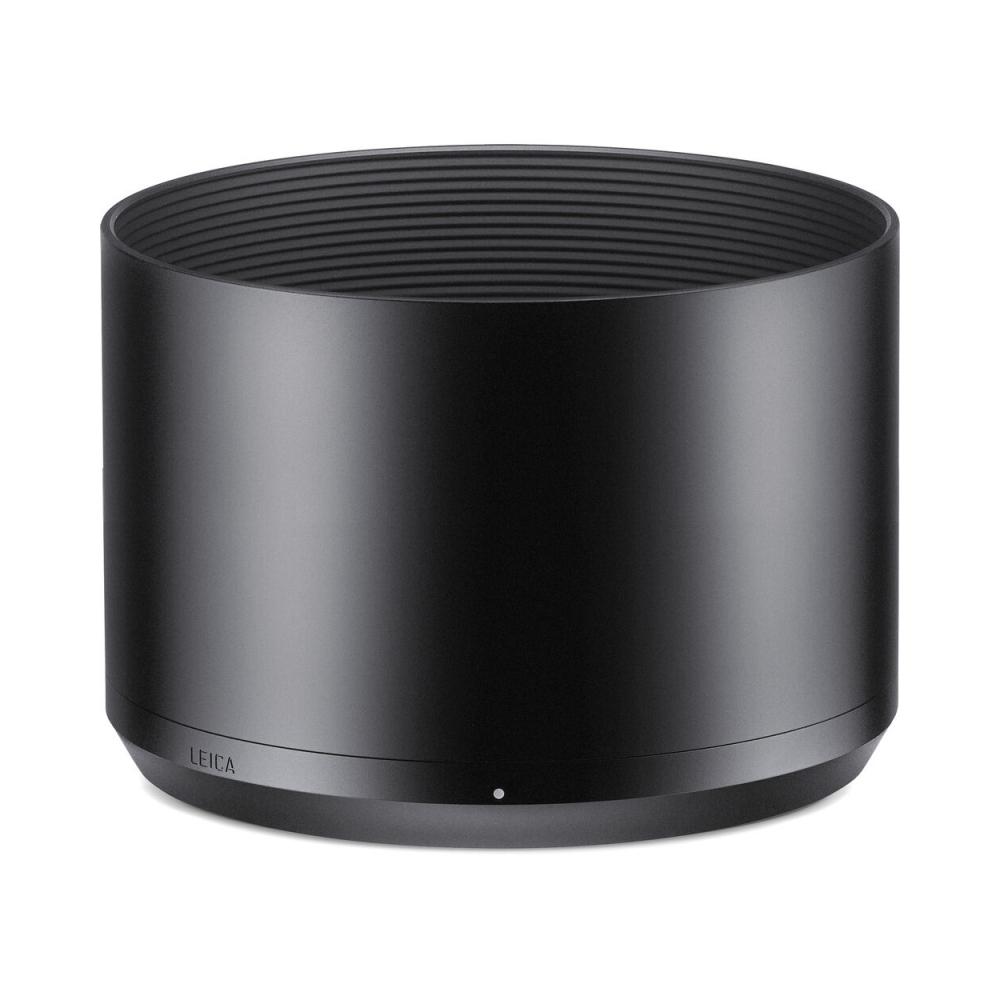

| Lens hood |
Male bayonet for lens hood (included in the scope of delivery) |
| |
|
| Dimensions |
|
| Length |
Approx. 207 mm/259 mm (without/with lens hood) |
| Diameter |
Approx. 89 mm/97 mm (without/with lens hood) |
| Weight |
Approx. 1540 g/1670 g (without/with lens hood) |
