Type

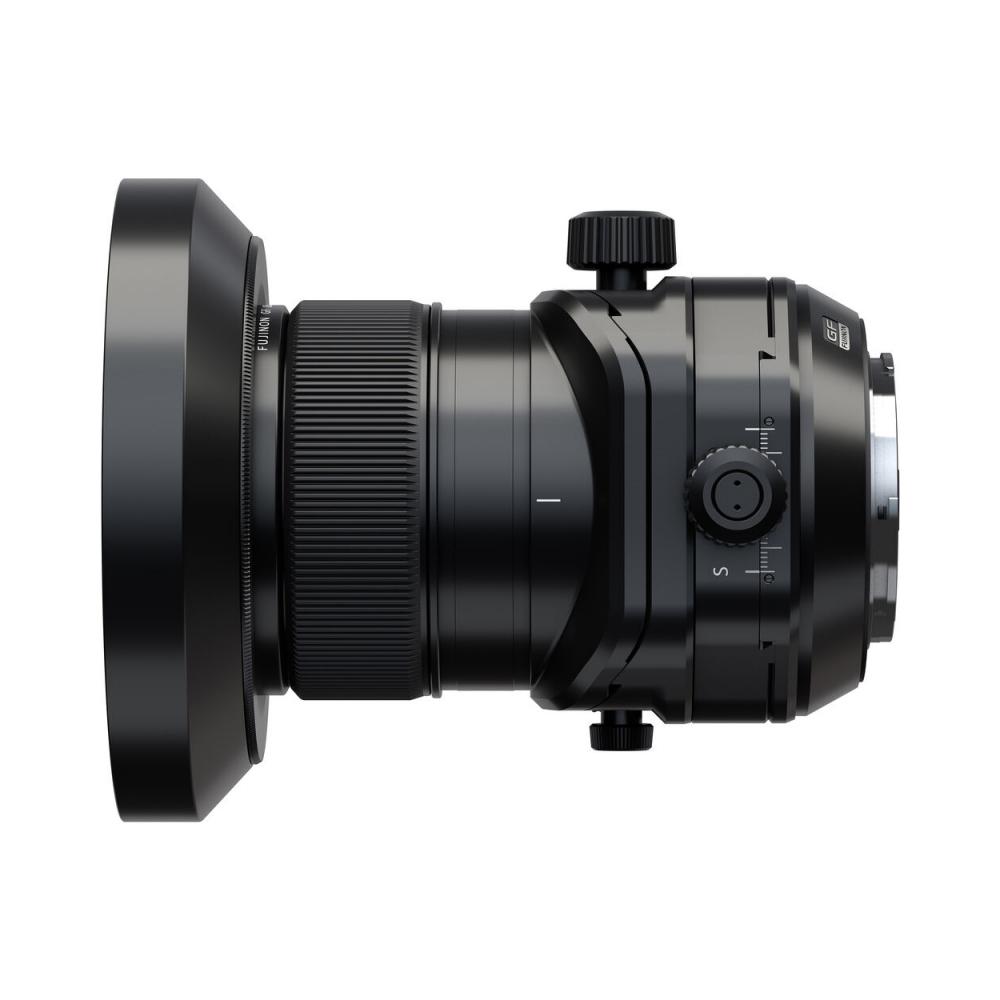

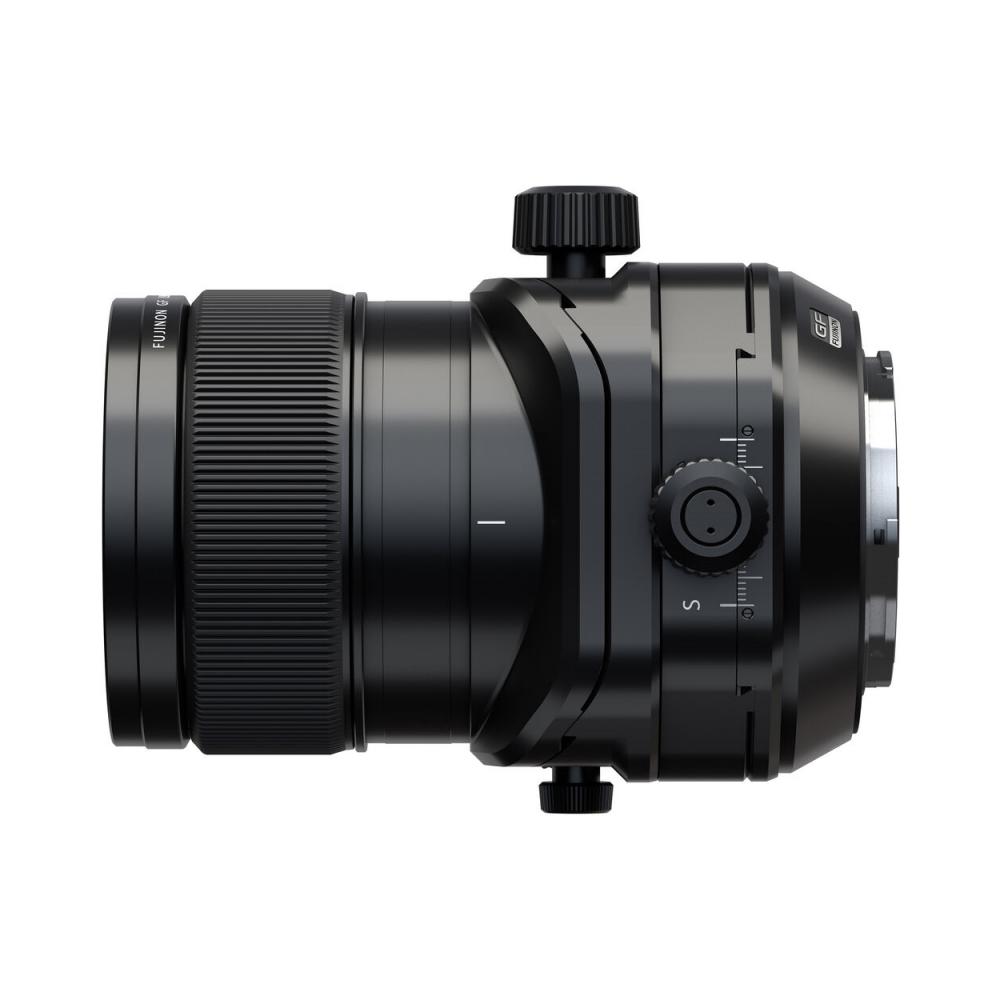

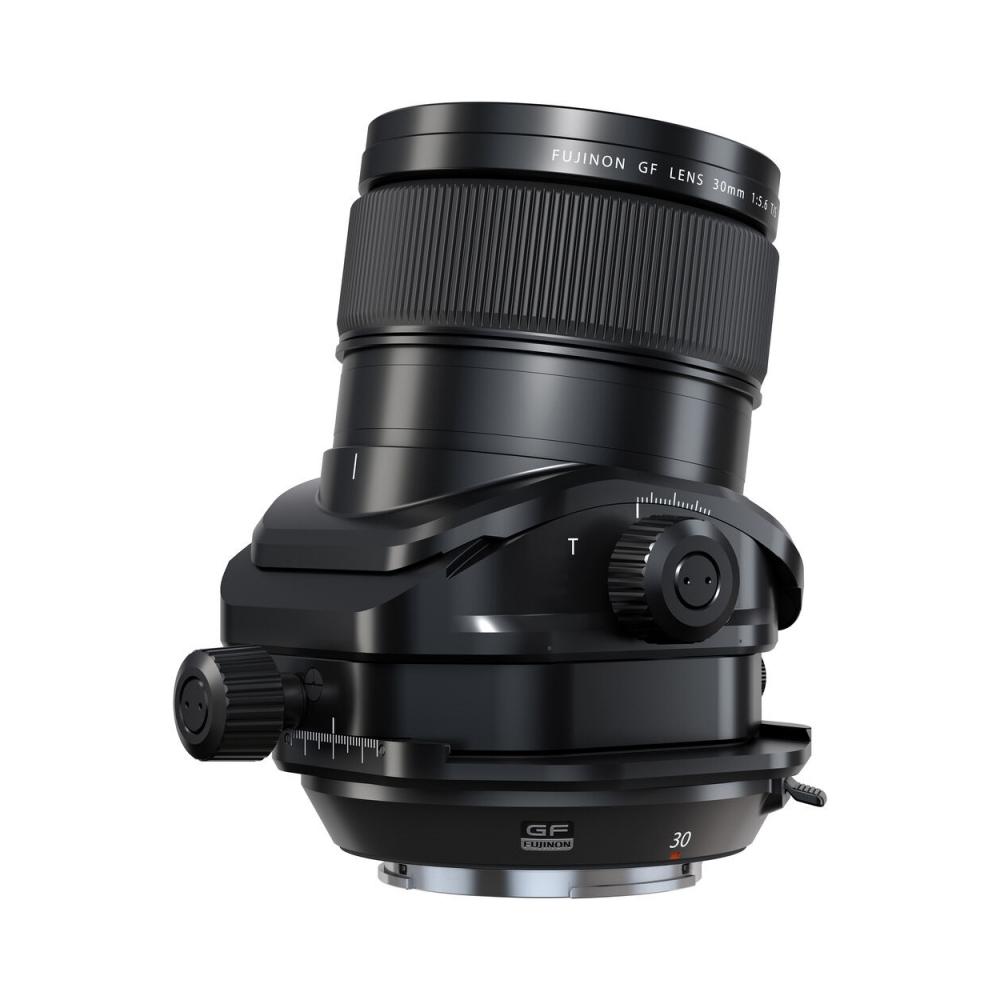

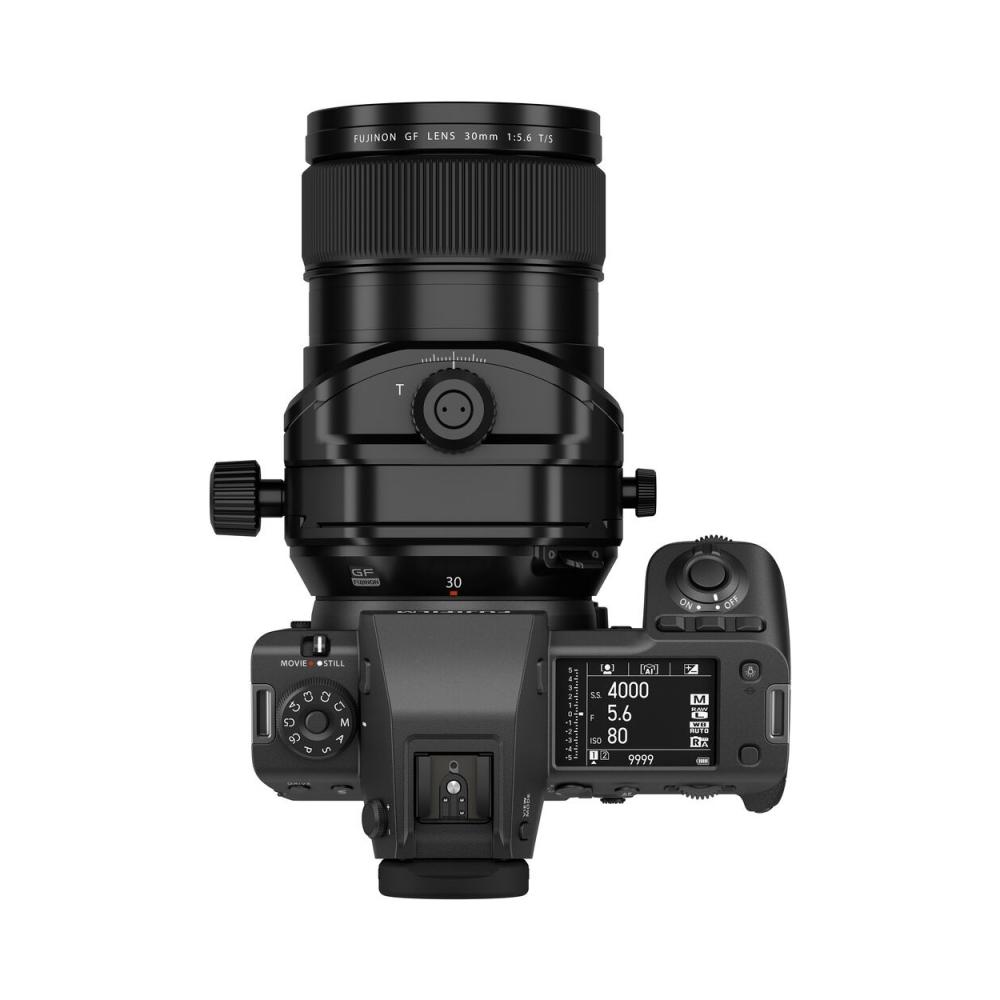

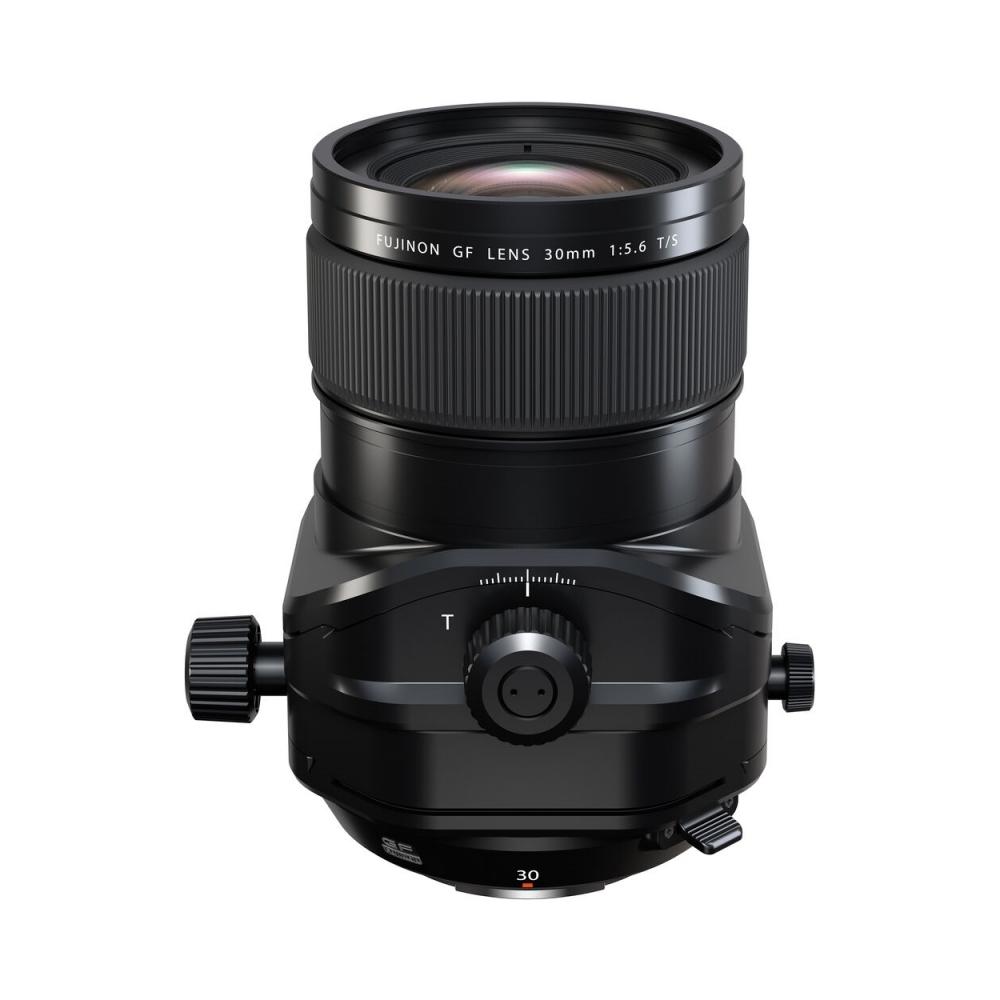

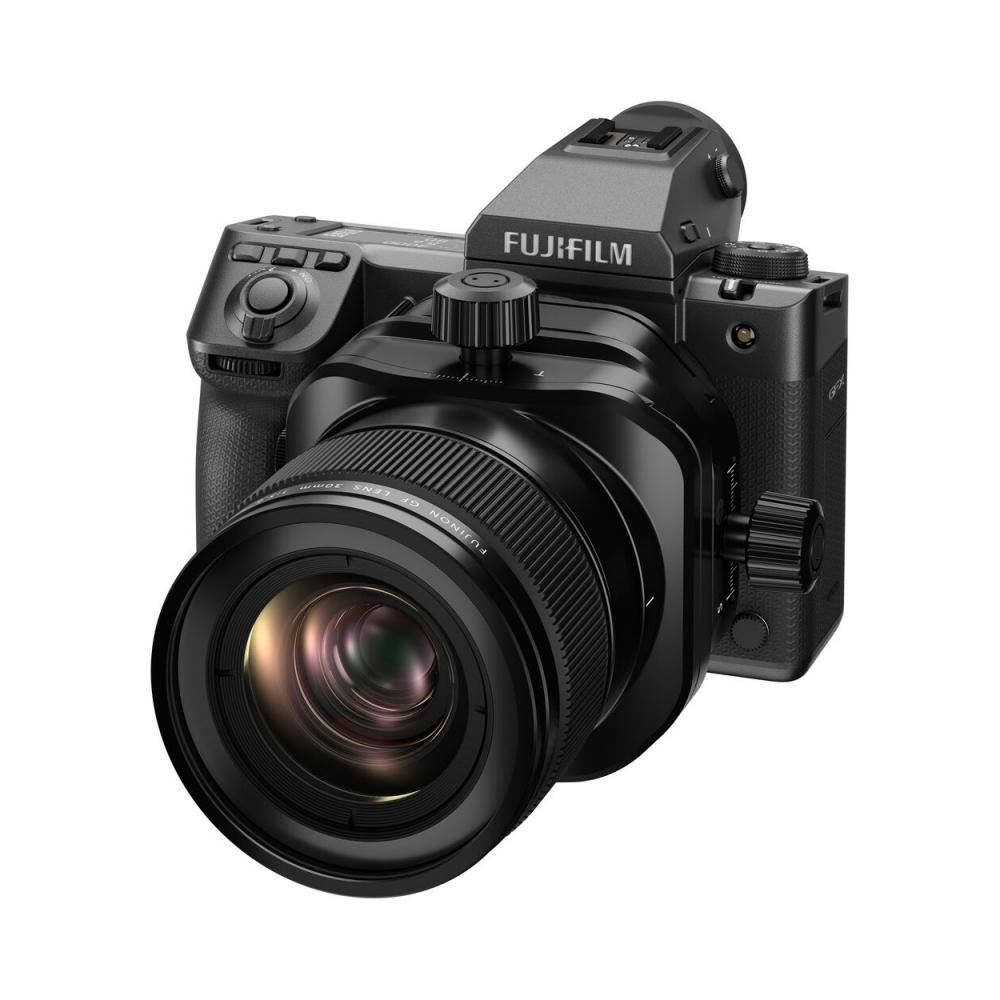

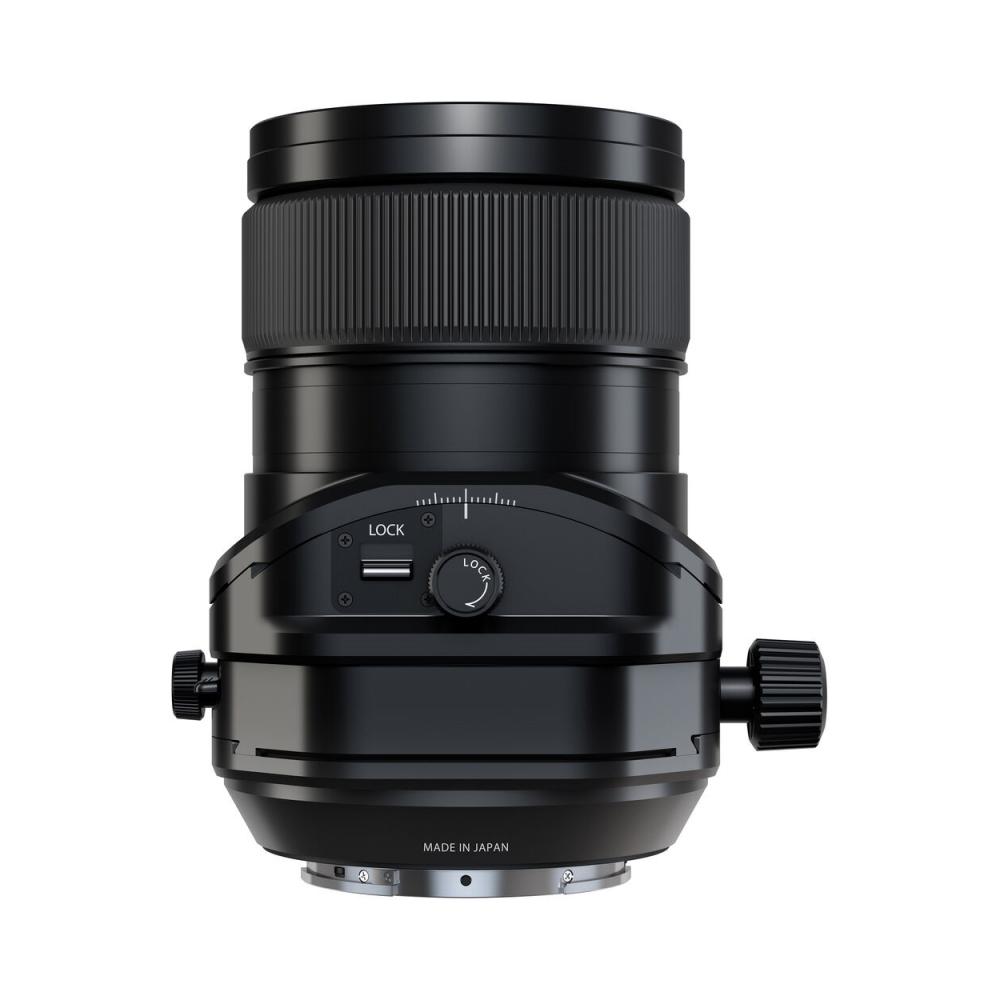

FUJINON GF30mmF5.6 T/S

Lens configuration

16 elements in 11 groups

(includes 3 aspherical, 1 super ED and 2 ED elements)

Focal length

f=30mm(24mm)

Angle of view

84.7°

Max. aperture

F5.6

Min. aperture

F32

Aperture control

Number of blades

9(rounded diaphragm opening)

Step size

1/3EV (16steps)

Minimum focus distance(measured from focal plane)

0.3m

Max. magnification

0.21x

Tilt range

±8.5˚

Shift range

±15mm

Tilt scale

Ruled in 1˚ increments

Shift scale

Ruled in 1mm increments

Lens rotation

Locks at -90, 0, and 90 degrees

with a click every 30 degrees

T/S rotation

Locks at 0 and 90 degrees

with a click every 45 degrees

External dimensions : Diameter x Length*1 (approx.)

Φ87.1mmx138.5mm

(The tilt/shift mechanism is 96 mm long)

Weight*2 (approx.)

1,340g

Filter size

Φ105mm(uses adapter ring)

Accessories included

Front lens cap FLCP-77

Rear lens cap RLCP-002

Lens hood

Adapter ring

Adapter ring cap FLCP-105

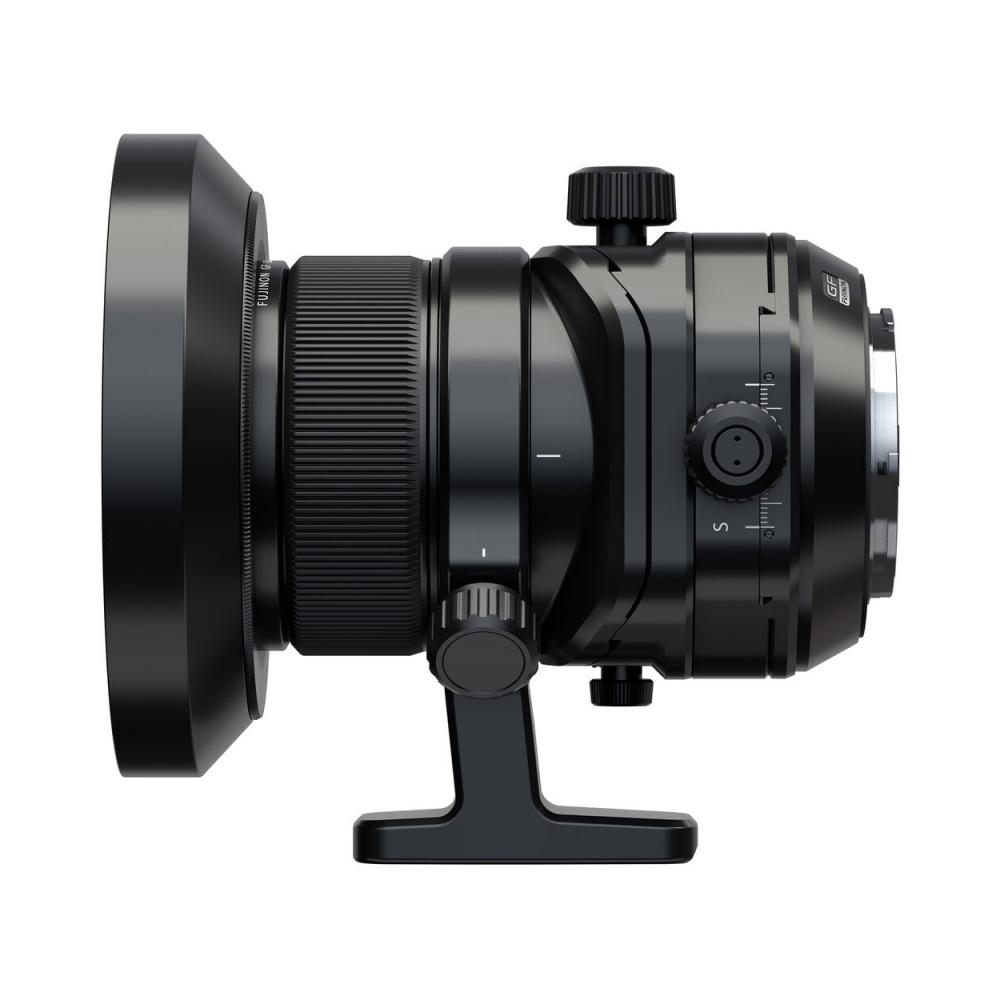

Tripod collar foot

Lens pouch
