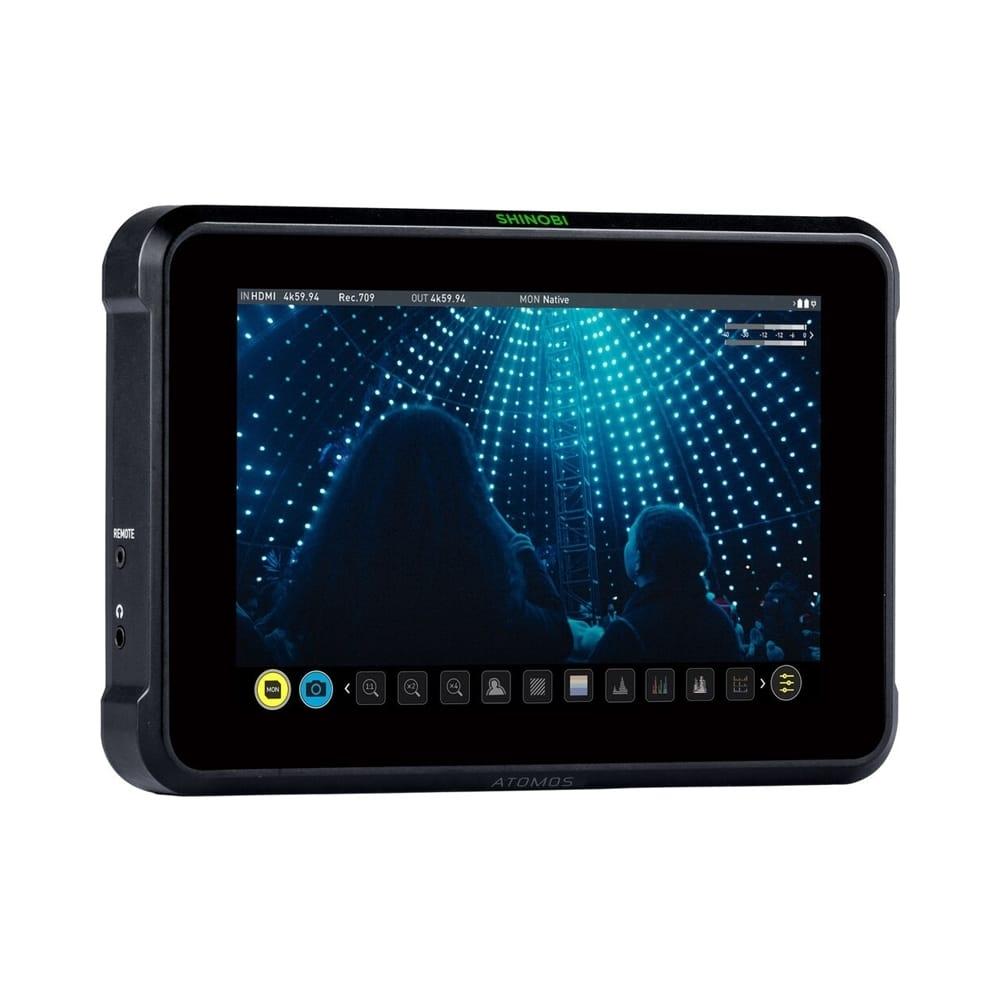

Shinobi 7 combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight camera monitor-only functions of Shinobi. An ideal director’s camera monitor, focus puller’s monitor, program or preview display for video switchers.

7-inch HDR camera monitor HDMI and SDI HDR or SDR display up to 2200nit. Daylight viewable display, HDMI 2.0 support for 4Kp60, 3G SDI support up to 2Kp60. HDMI-SDI signal cross conversion. Dual NPF battery slots. 3D LUT support and monitoring functions including histogram, waveform, and false color.

For a list of compatible cameras click here.

What’s in the box?

• Shinobi 7-inch unit
• 12V-15W AC power supply
• Quick Start Guide

Physical

Dimensions (W x H X D mm)

198mm x 133mm x 39mm / 7.8" x 5.2" x 1.5"

Weight

577g / 1.04lb

Mounting Points

Top: 1 x 1/4"20 with anti rotational points, Bottom: 1 x 1/4"20 with anti rotational points

Environmental

Ambient Operating Temperature

Up to 40 Degrees Celsius

Construction

Body

ABS Polycarbonate Plastic

Cooling

Heat Sink + Actively controlled Fan

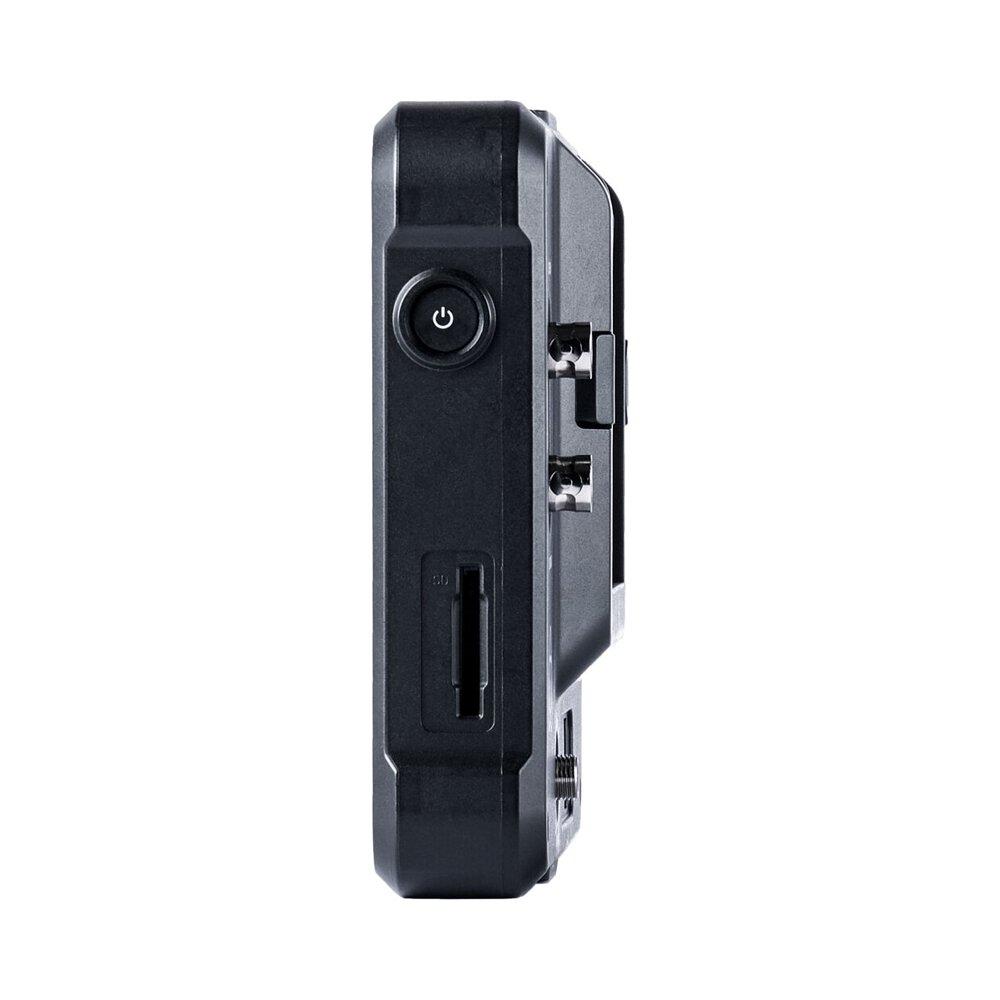

Multi-Function Button

Power / Lock Screen

Touch Screen

Capacitive Touch

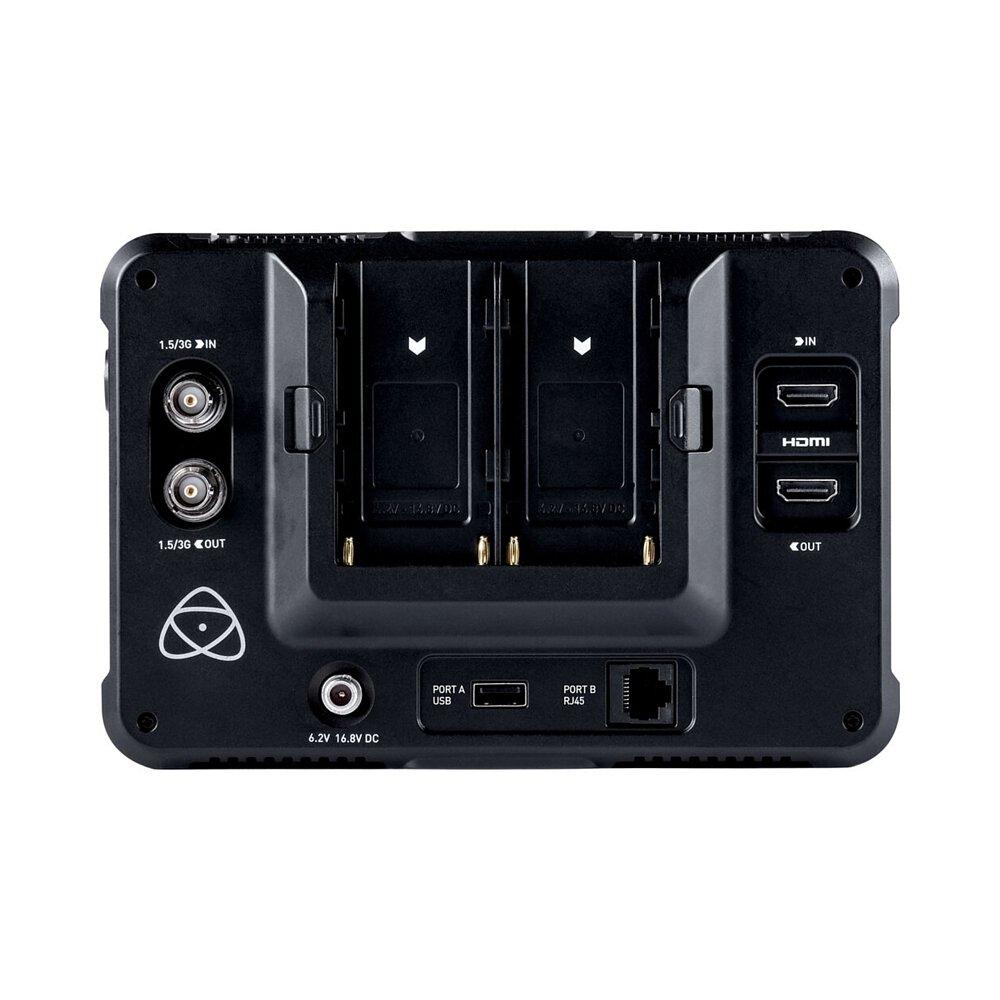

Power

Input Voltage

6.2V to 16.8V

Compatible Batteries

2 x NP-F / L-Series

DC-In Connector

Locking DC Jack (5.5mm OD & 2.1mm ID)

D-Tap

Via optional D-Tap to DC-Barrel Cable

Fan Control

Quiet Fan/Limited Brightness & High Fan/Peak Brightness

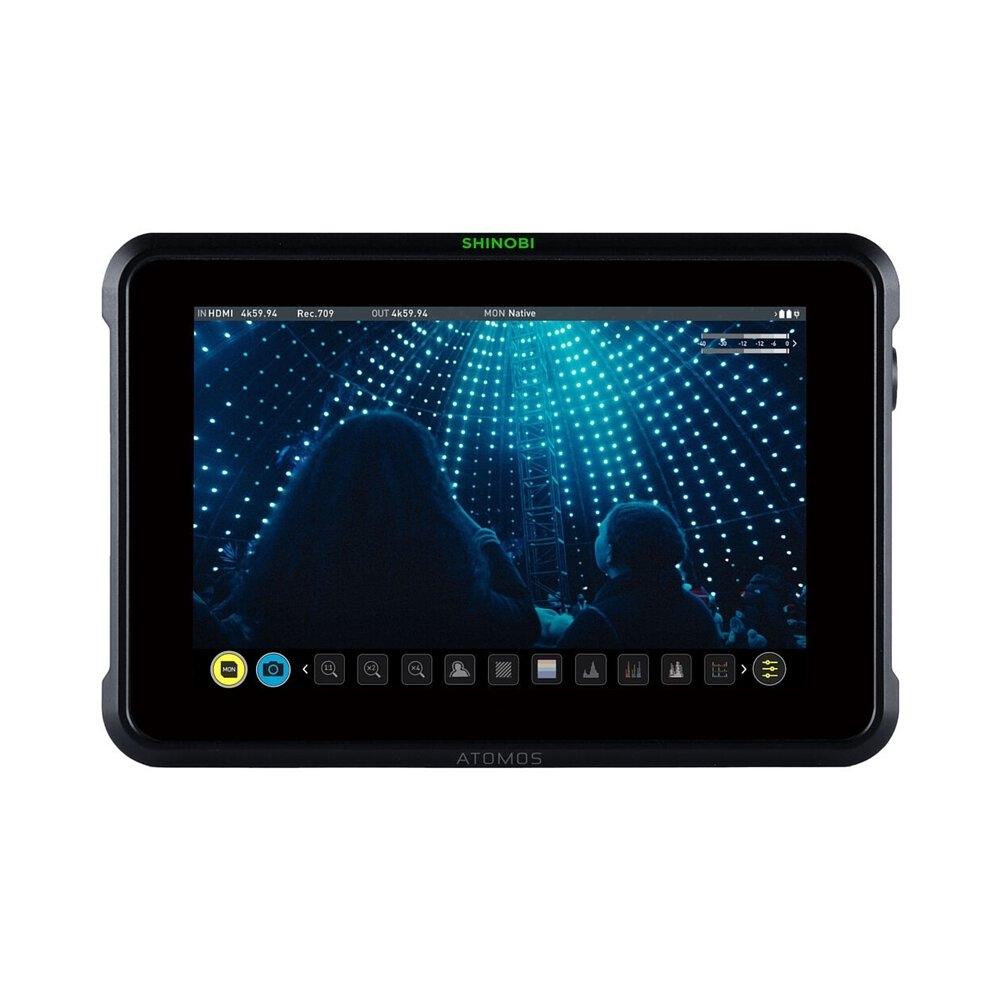

Display

Display Panel

SuperAtom IPS Panel (Capacitive Touch)

Size

7"

Resolution

1920 x 1200 (1920 x 1080 Image Display)

Viewing Angle

178 + H & V

PPI

325

Bit Depth

10-Bit (8+2 FRC)

Backlight Type

Edge-Lit

Brightness (cd/m² / nits)

2200 +/- 10%

Aspect Ratio

16:10 (16:9 Image Display)

Color Gamut

Rec.709

Calibration Support

ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

Color Pipeline

Gamma

Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log

Gamut

Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

3D LUT Display

.Cube Format (17 & 33 points supported)

3D LUT Output

Loop out

3D LUT 50/50

Via Compare Option in LUTs Menu

Monitoring Modes

Native / 709 / HLG / PQ / 3D LUT

HDR Output Conversion

Camera Log to HLG / PQ

Color Management

Calibration

ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

Display Controls

Backlight, Lift, Gamma, Gain

AtomHDR

Built-in Technical Log to HDR EOTF

3D LUTs

Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring

Video Input

HDMI

1 x HDMI 2.0

SDI

1 x 3G SDI

Chroma Subsampling

YCbCr 4:2:0 & 4:2:2

Bit Depth

8 / 10-Bit

HDR

HDMI Auto Detection

Video Output

HDMI

1 x HDMI 2.0

SDI

1 x 3G SDI

Video Signal Conversion

HDMI to SDI

Supported

SDI to HDMI

Supported

Audio In/Out

HDMI

2ch 24-Bit, Input dependent

SDI

8ch 24-Bit, Input dependent

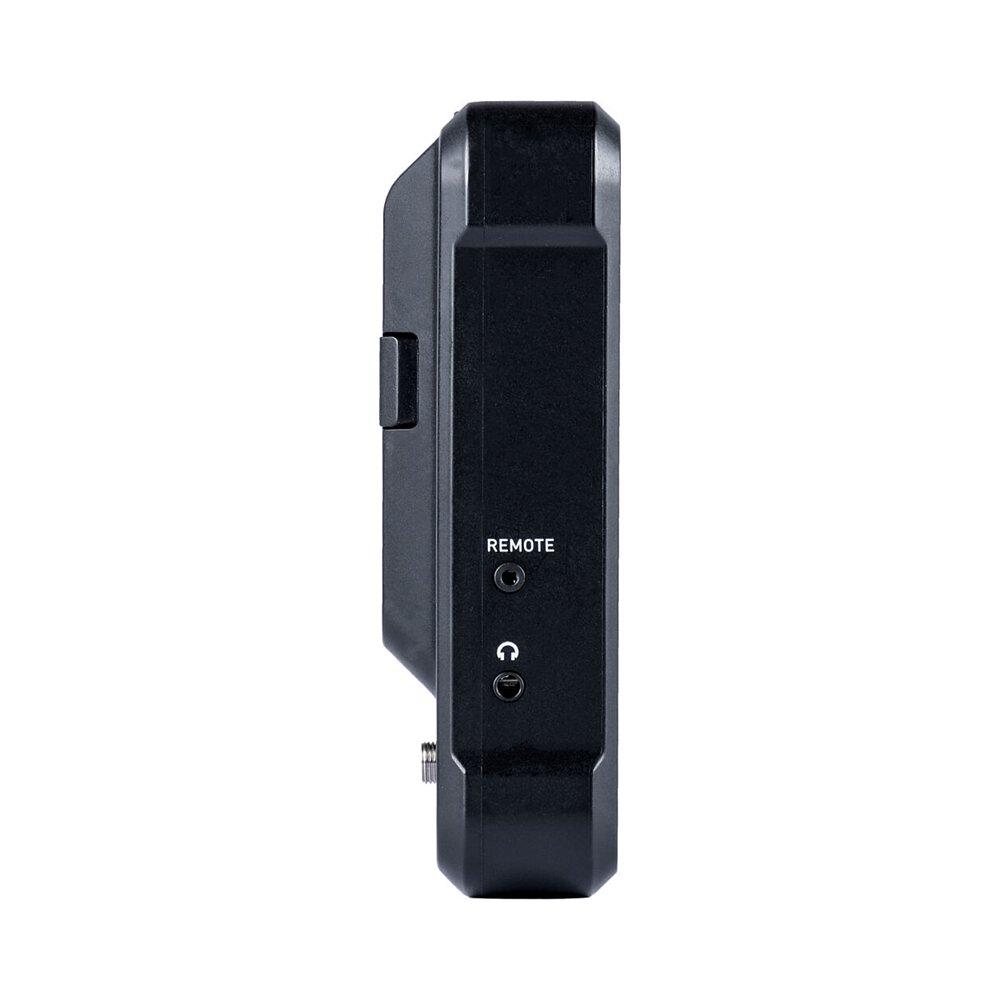

Analog Audio Out / Headphone Jack

3.5mm Jack

Timecode Display

HDMI

Embedded

SDI

Embedded

Resolution and Frame Rates (Monitoring)

4K DCI

up to 4Kp60 (HDMI only)

4K UHD

up to UHDp60 (HDMI only)

2K DCI

up to 2Kp60 (SDI only)

FHD 1920 x 1080 Progressive

up to 1080p60 (HDMI & SDI)

1280 x 720 Progressive

up to 720p60 (HDMI & SDI)

Supported Media

SD Card

up to 128GB Capacity – Used for Firmware Updates & Installing LUTs

File System

FAT & FAT32

On-Screen Tools

Waveforms

3 Sizes – Adjustable Opacity & Brightness

RGB Parade

3 Sizes – Adjustable Opacity & Brightness

Vector Scope

2 Sizes – Adjustable Opacity & Brightness

Histogram

1 Size – Adjustable Opacity & Brightness

MultiScope Analysis View

Image, Waveform, Histogram, Vector Scope & Audio Meters

1 x Zoom

Tap to Zoom

2 x Zoom

Tap to Zoom

4 x Zoom

Tap to Zoom

Focus Peaking

4 Modes (Color, Black & White, Outline, Edge Sharpening) with adjustable Outline Color & Peaking Intensity

Zebra

Adjustable Threshold (50% to 105%)

Isolate Color Channel

Blue Only

Cine Frame Guides

2.4:1, 2.35:1, 1.9:1, 1.85:1, 16:9, 4:3

Social Frame Guides

1:1, 5:4, 1:1.9

Grid Markers

9 Grid

Anamorphic Desqueeze

2x, 1.8x, 1.5x, 1.33x, 1.25x

Display Flip

Horizontal & Vertical

Colorized Exposure

Atomos False Color

Onboard Signal Processing

4K UHD Downscale for HD

Available on loop out

DCI Crop

Available on loop out

External Device Control

Serial 2.5mm Jack

Z CAM Camera Control via Remote to USB-C Cable

What's in the box

Box Contents

1 x Shinobi 7, 1 x International Power Supply, 1 x QuickStart Guide

Optional Extras

AtomX Monitor Mount, Power Kit, HDMI Cables
