Atomos Shogun Connect 7

Atomos Shogun Connect 7" Network Connected 高清記錄監視器 8Kp30 / 4Kp120

7" 1920 x 1200 Touchscreen Display\n2000 cd/m² Brightness\n2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C\nRecords up to 4K Video\nAdobe Frame.io Camera to Cloud Support\nWi-Fi 6, Bluetooth LE, Gigabit Ethernet\nDual Recording Capabilities, Streaming\nPower via DC Input or L-Series Battery

售價
HK$ 11500

送天祥精美鏡頭布 30x30cm香港行貨 1件



追踪


Recording Monitor with Camera to Cloud Support

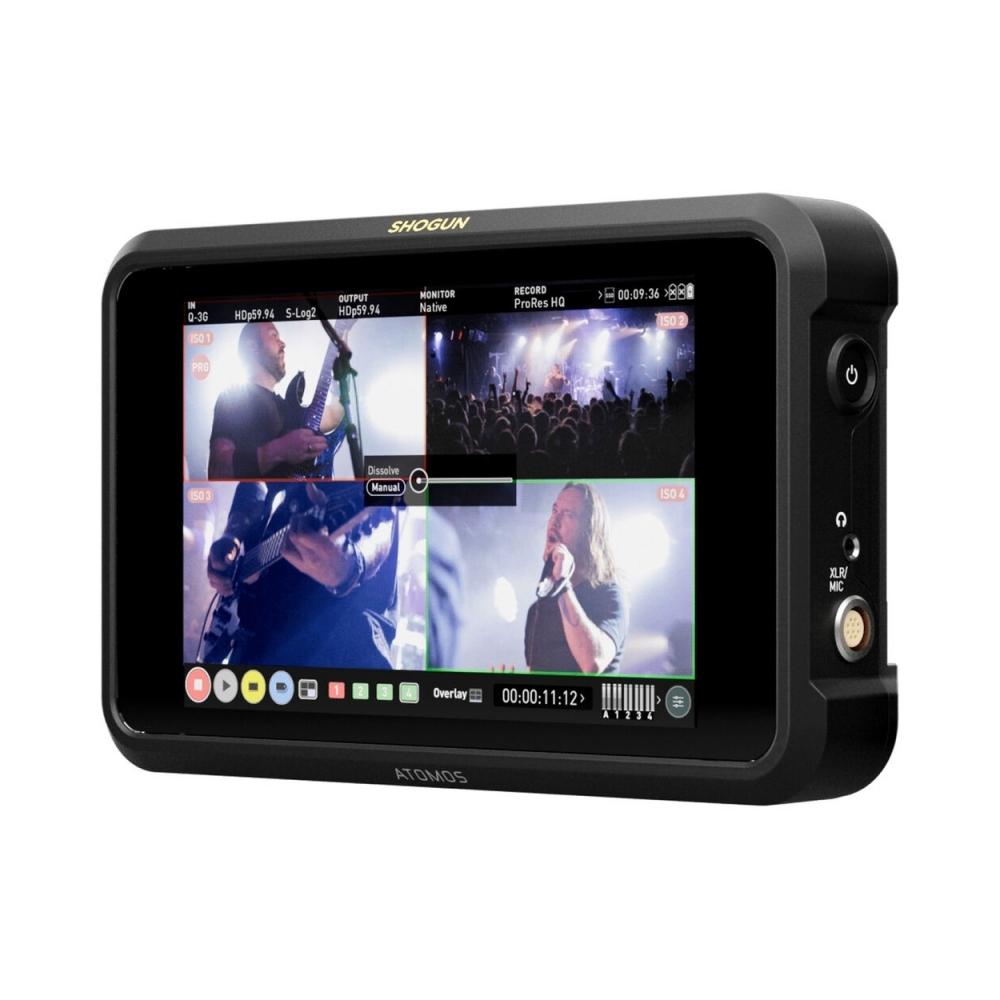

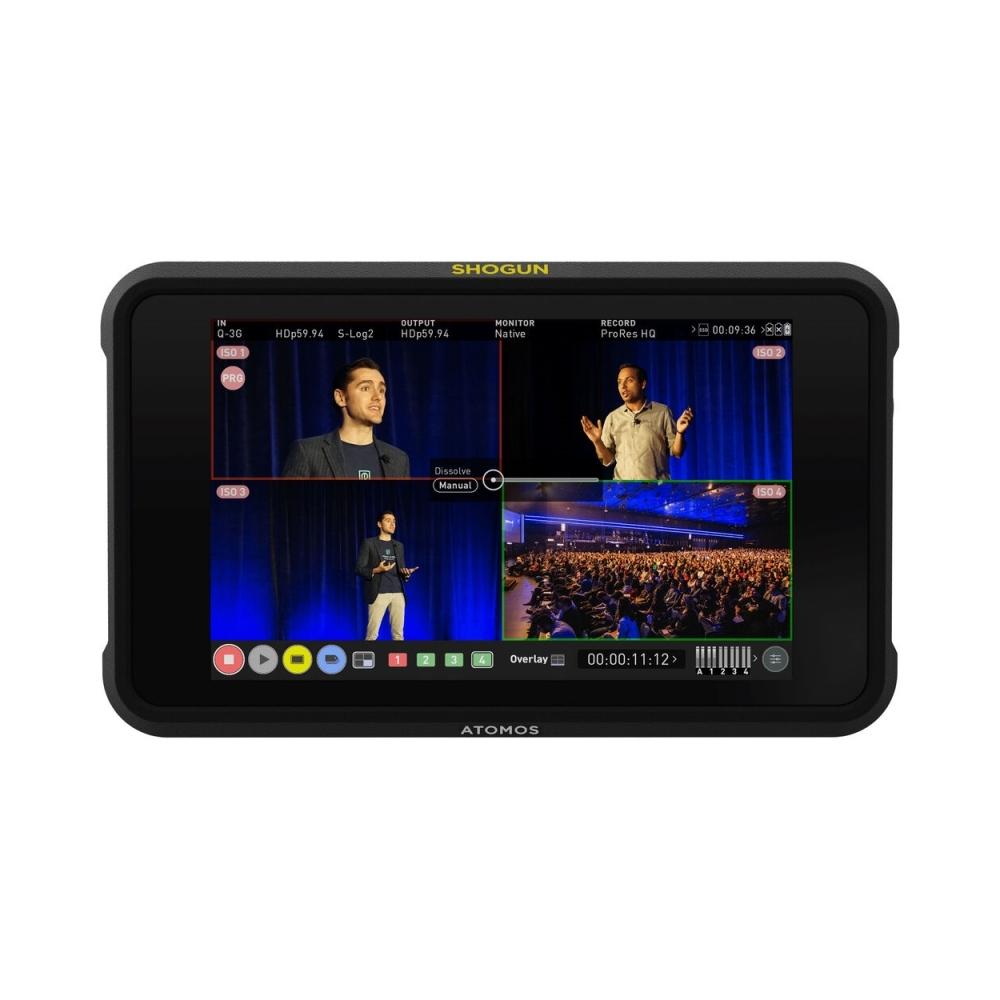

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface support SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease. Record and store your footage using the SATA 3 SSD slot compatible with Master Caddy II/III and AtomX SSD mini. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.
CONNECT Upgrades
  • Built around the latest silicon, the AtomIC3, which provides higher frame rate support and increased resolutions
  • Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously
  • Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording
  • Features a new, brighter HDR screen and a range of built-in interfaces
  • Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
  • Supports livestreaming to Facebook Live, Twitch, and YouTube
Atomos AirGlu Technology
Add wireless timecode, sync, and control to your Shogun CONNECT. AirGlu enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock to multiple Atomos devices, compatible cameras, audio recorders, and software applications. Relay recording, battery status, and disk capacity to the configured server unit, which can be any AirGlu-compatible device.
Frame.io Camera-to-Cloud Device
Adobe Frame.io support makes the Shogun CONNECT a camera-to-cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology.
Shogun Control
  • Control over your Shogun CONNECT can be achieved with both remote and onboard solutions. Its Bluetooth LE capabilities allow you to connect to the AtomRemote iOS and macOS app and toggle various monitor assist functions from up to 50' away from your device. Define your camera connections, select Gamma/EOTF, and adjust your color gamut setting. You can even control playback and apply custom 3D LUTs as well as select your output settings.
  • Other forms of control include an auto HDMI trigger for Canon, Sony, and Atomos Open Standard, a camera selectable SDI trigger, serial 2.5mm jack for LANC and calibration with separately available USB to serial cable, serial 2.5mm jack for remote to USB for ZCAM. Even AirGlu can facilitate wireless RF for remote start/stop trigger integration.
Monitor Assist Functions
  • HDR, 3D LUT, and various camera Log formats are supported by the Shogun CONNECT
  • Load your own custom LUTs in .cube format to any of the 8 LUT slots via the removable SSD
  • Select various monitoring tools like waveform, focus peaking, false color, and frame guides to achieve the proper composition and exposure
Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Touchscreen Yes
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

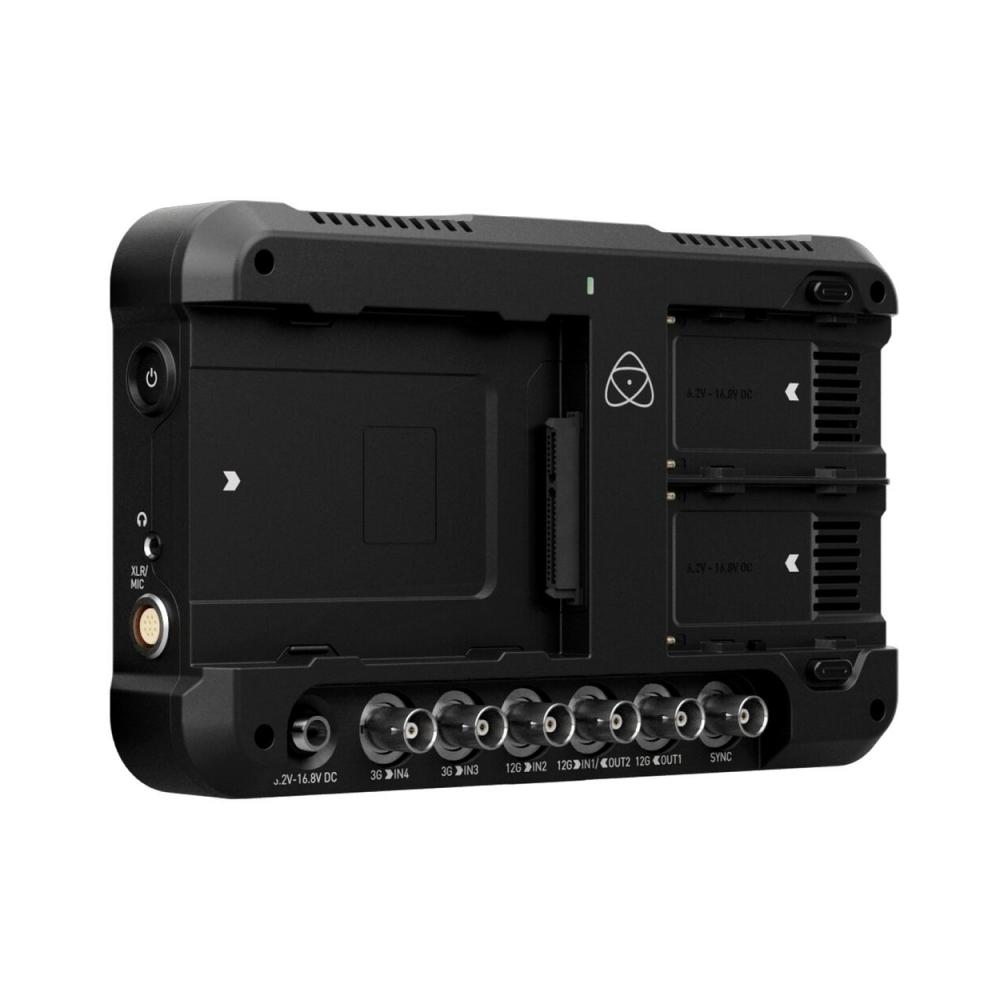

Inputs / Outputs
Antenna I/O 2 x F-Type
Video I/O 1 x HDMI 2.0a Input
1 x BNC (12G-SDI) Input
1 x HDMI 2.0a Output
1 x BNC (12G-SDI) Loop Output
1 x BNC (12G-SDI) Monitor Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Output
Power I/O 1 x Barrel Input
Other I/O 1 x 2.5 mm (LANC) Input
1 x USB-C (Serial) Input
1 x RJ45 (Gigabit Ethernet) Input
Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
SIM Card Slots None
File System Support exFAT
Encryption None
Wireless
Wireless Range 0.2 Miles / 300 m
49.2' / 15 m (Line-of-Sight)
# of Channels 12
Latency None
Wi-Fi Wi-Fi 6 (802.11ax)
Bluetooth Yes
Format Support
Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
HDMI (12-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60
4K Raw: 120
3.5K Raw: 60
SDI (12-Bit 4:2:2/4:2:0 YCC)
6K Raw: 30
4K Raw: 120
2K Raw: 240
Audio Format 24-Bit 48 kHz PCM Audio
Timecode Support
